Description

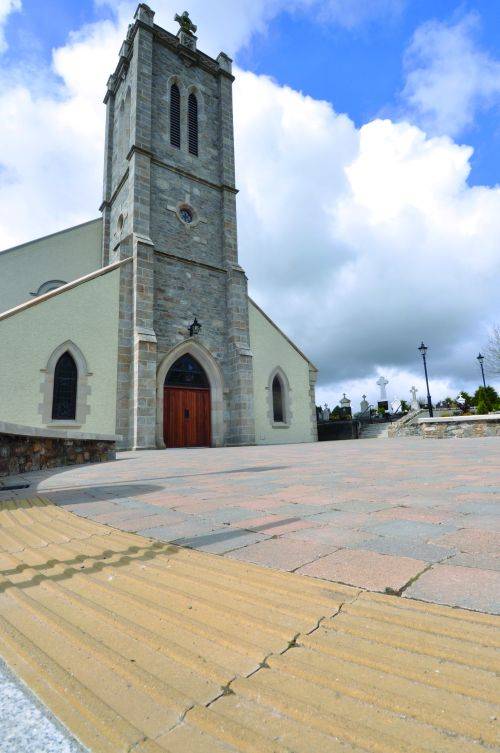

There are two types of crossing zones, controlled and uncontrolled. Controlled crossing zones include zebra crossings, pelican crossings, puffin crossings, toucan crossings and traffic signals with pedestrian phases. Uncontrolled crossing zones relate to side road crossings, busy crossovers, crossings away from junctions, kerb to-kerb humps and traffic signals without a pedestrian phase.

Tactile flags are available in three colour finishes to enable the partially blind to distinguish between different types of crossing zones. Red relates to controlled crossing zones, while Buff is available to distinguish uncontrolled crossing zones. Natural is manufactured for the ROI market. Different flag layout patterns are used to assist blind pedestrians identify different types of crossing zones.

Tactile flags are suitable for all pedestrian areas and traffic-free zones. Consult with the latest British Standard to ensure the correct flag size to suit your application.

General information
Finish

Hazard Warning

Square edge.

Size

400 x 400 x 50 mm

Uniclass 2015
Concrete tactile flags (Pr_25_93_60_23)Primary
Specification data - Concrete tactile flags
Product Reference

Tactile Hazard Warning

Colour

Buff

Natural

Finish

Hazard Warning

Square edge.

Standard product features

Standards:

Concrete paving flag to BS EN 1339: 2003.

Size:

400 x 400 x 50 mm.

Strength:

>3.5 MPa.

Surface layer:

Hard wearing surface layer with a minimum layer of 4 mm and >390 kg/m³ cement.

Slip/Skid Resistance:

Extremely Low (>75 USRV).

Sustainability:

  • Energy used: 100% renewable energy.
  • Water used: 100% water used from rainwater harvesting system.
  • Carbon Footprint: 22 kgCO2e/m².
  • Manufacturing location: Produced in the UK with locally sourced materials.

BREEAM Rating:

A, in accordance to the Green Guide to Specification, 4th Edition 2009. An A+ rating can be achieved by using a recycled sub-base as per the guidelines in the Green Guide to Specification, 4th Edition. www.bre.co.uk
