Application

Used to assist the blind and partially sighted people at pedestrian crossings.

Description

Tactile paving flags are used to assist the blind and partially sighted people at controlled and uncontrolled pedestrian crossings such as zebra/ pelican/ puffin crossings/ toucan crossings, traffic signals with pedestrian phases, crossovers, crossings away from junctions, kerb-to-kerb humps and traffic signals without a pedestrian phase.


The flags are available in three colour finishes to enable the partially blind to distinguish between different types of crossing zones:

  • Red relates to controlled crossing zones.
  • Buff is available to distinguish uncontrolled crossing zones.
  • Grey is manufactured for the Republic of Ireland (ROI) market.


Tactile Flags:

  • Blister paving is used to identify pedestrian crossings with dropped kerbs.

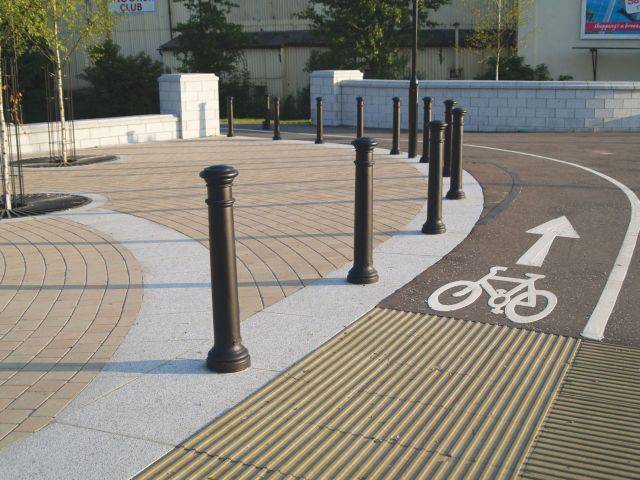

  • Corduroy paving is used to denote a hazard such as the top/ bottom of a flight of steps.


General information

Finish

Textured

Guidance for specification option:

- Blister/ Corduroy.

Smooth

Guidance for specification option:

- Deterrent.

Uniclass

Pr_25_93_60_23 Concrete tactile flagsPrimary

CAWS

Q25/320 Tactile flags and slabs

Specification data - Concrete tactile flags

Standard

BS EN 1339.

Manufacturer guidance

Standard:

Manufactured to BS EN 1339.

  • Efflorescence: State-of-the-art factory controlled vapour curing significantly reduces this naturally occurring chemical reaction.
  • Bending Strength: >3.5 MPa. This pressure applies to all sizes and depths. For specific force performance on a given size or depth please contact AG's Technical Specification Department.


CE marked; Certificate 01D and 01E/1-7-13, attestation Level 4 CPR (2011) Annex V.

Physical properties

-

Colour

Buff.

Red.

Grey Smooth.

Product Reference

Deterrent Flag

Guidance for specification option:

600 x 600 mm. 50 mm thickness.

Tactile Blister Flag

Guidance for specification option:

400 x 400 mm. 50mm or 63 mm thickness.

Tactile Corduroy Flag

Guidance for specification option:

400 x 400 mm. 50 mm thickness.

Jointing Sand

Buff sand.

Guidance for specification option:

For Buff and Red colours.

Finish:

Fine-textured.

Guidance for specification option:

- Blister/ Corduroy.

Smooth.

Guidance for specification option:

- Deterrent.


Sustainability data

Country of material origin

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

  • Carbon Footprint: AG have a new state-of-the-art washing plant which enables AG to produce paving from 100% recycled waste aggregate.
  • BREEAM rating: A Rating – according to the Green Guide to Specification 4th edition 2009. A+ Rating can be achieved when used in conjunction with a prepared recycled sub-base.



Recyclability

100%

Manufacturer guidance

  • Energy use: 100% renewable energy.
  • Water used: 100% recycled water.
  • Recyclability: 100% of this product can be recycled.
  • Manufacturing location: Produced in the UK using responsibly sourced materials.
  • Waste wood and plastic: 100% recycled.

Literature

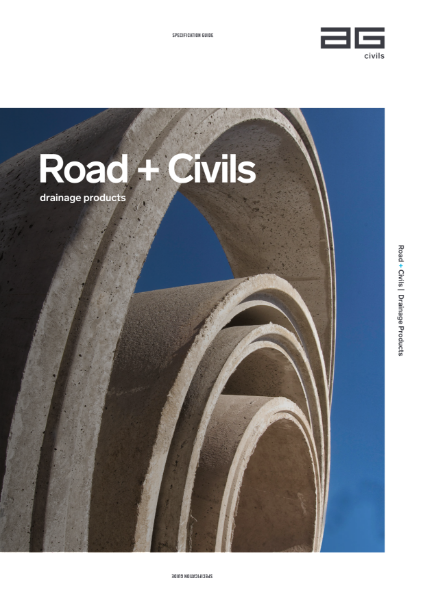

AG Civils

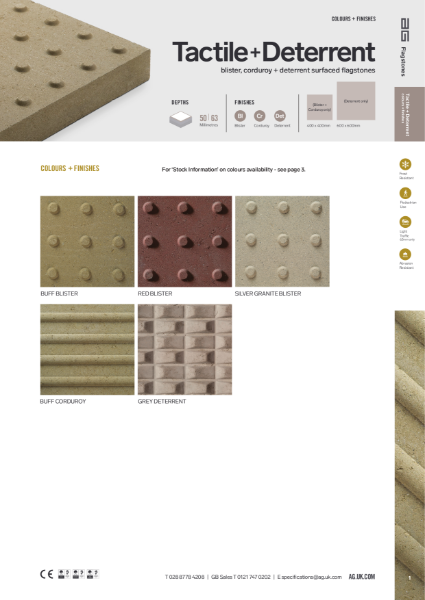

AG Civils

Case studies

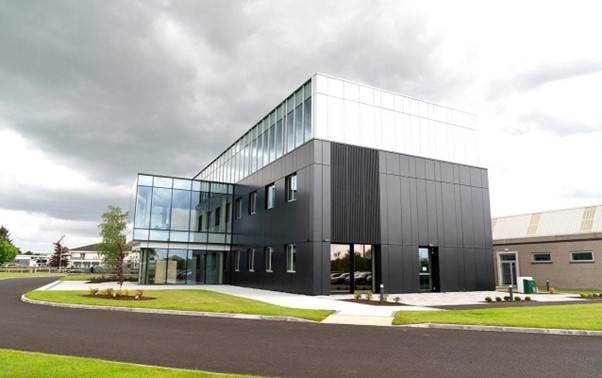

Clarke, Ballymena

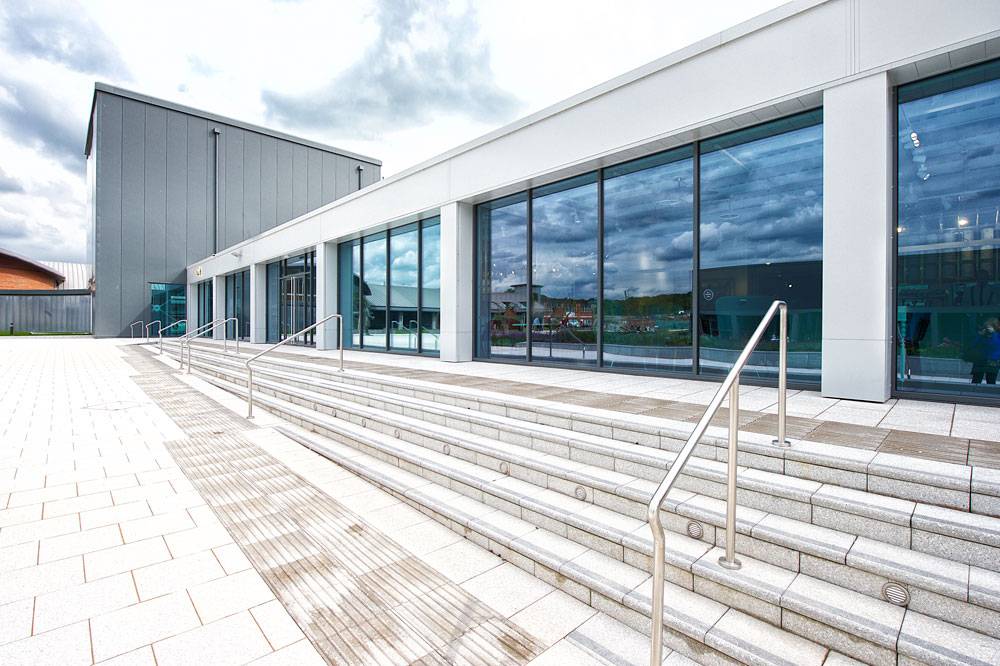

Clarke, Ballymena
