Table Mounted Laboratory One-way Gas Tap with Quick Release Couplings

Table Mounted Laboratory One-way Gas Tap with Quick Release Couplings

BROEN-LAB

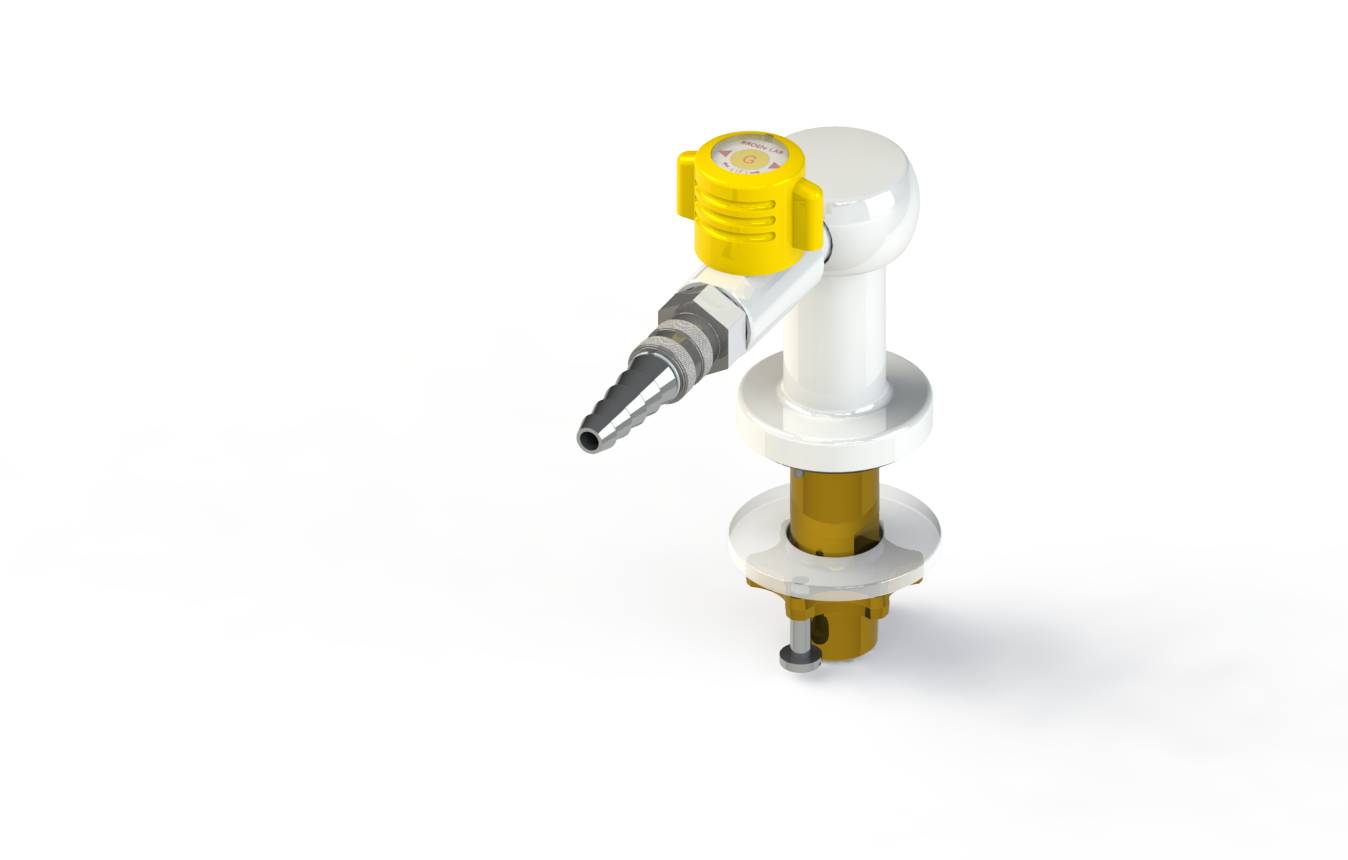

Table-mounted laboratory one-way gas tap, with lift-turn safety handle and quick release metal nozzle.

Jump to:
+44 (0)1215 224515 www.broen-lab.com
Application

For use with burning gases: see manufacturer's literature for media codes.

Description

Table-mounted laboratory one-way gas tap.


Features and benefits:


  • Table/ bench mounted.
  • "Lift/turn" safety handle and quick release metal nozzle for high flexibility. Check valve built in to the quick release.
  • Mounting kits with anti-rotational pins included.
  • Approved according to BSI.
  • Media indication according to EN 13792.
  • Part of a wide range of compatible gas taps, including fixed nozzles, flashback arrestors, multi-valve units, suspended or wall-mounted taps: consult manufacturer's literature for full details.
  • Disability-friendly and standard (non-pop-up) handles also available.


Installation:



  • Mounting kit must have two screws for safe and easy mounting.
  • For installation purpose use compression fitting 15212350 for outer diameter (OD) 15 mm CU pipe interface. Other sizes possible on request.

General information
Color

White body with yellow handles

Features

Table/ bench mounted; lift-turn safety handle and quick release metal nozzle for high flexibility; built-in check valve for vandal resistance; mounting kits with anti-rotational pins included; approved according to BSI; media indication according to EN 13792; part of a wide range of compatible gas taps.

Finish

Polyester powder-coated

BROEN-LAB POLYCOAT powder coating.

Material

Manufacturer's standard

See manufacturer's literature for full details, including materials with media contact.

Shape

Gas tap

Size

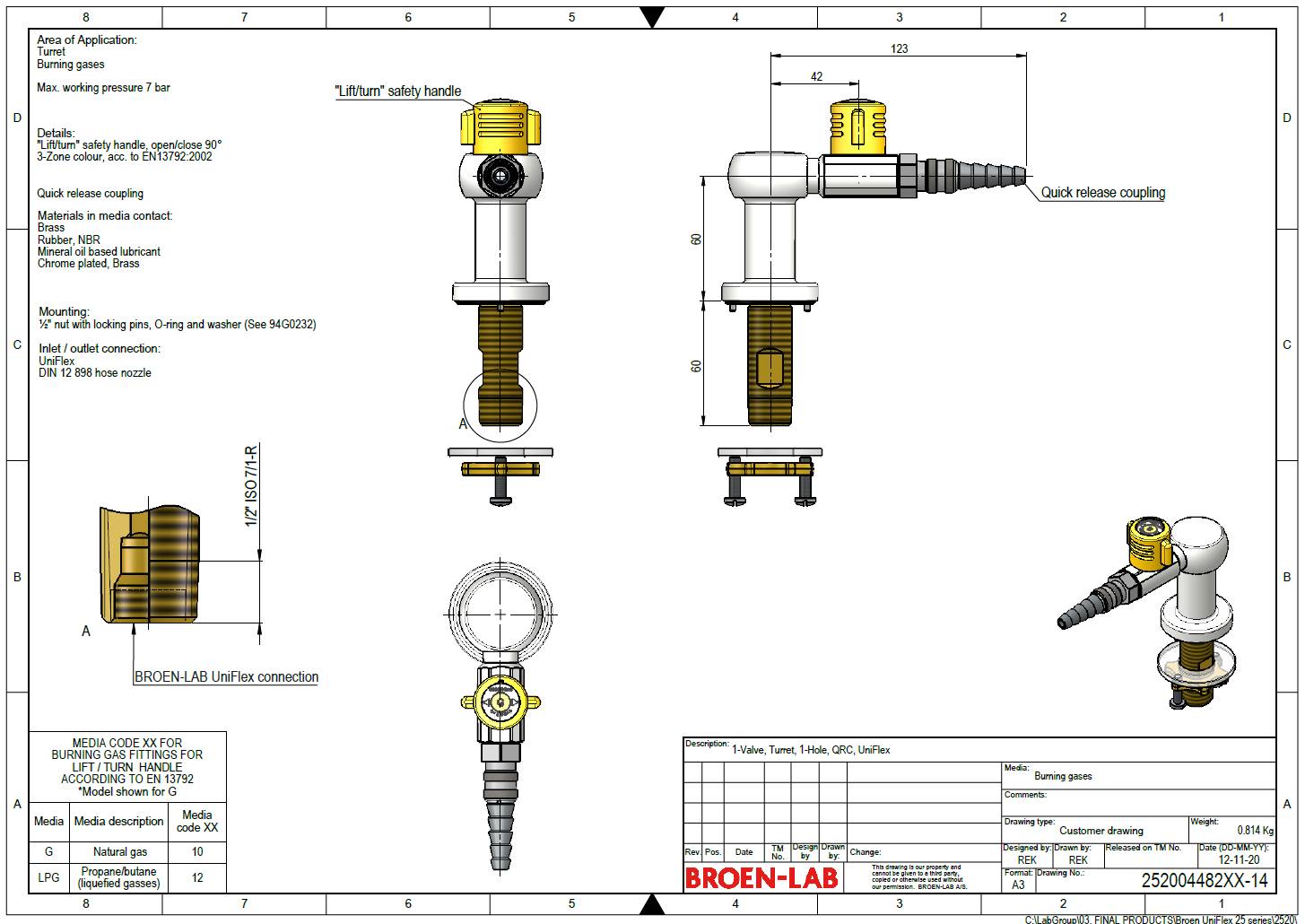

165 x 133 mm

Nozzle to inlet centre: 165 mm; height, including handle: 133 mm.

Uniclass 2015
Pr_65_54_33_45 Laboratory gas tapsPrimary
Specification data - Laboratory gas taps Enhanced data
Mounting

Table.

Number of outlets

One.

Nozzles

Quick release.

Operation

Lift-turn handle

Colour coding

Insert requirements to BS EN 13792

See manufacturer's literature for details of media codes available.

Inlet connection

60 mm, ½" ISO 7/1-R, with internal UniFlex thread.

Product Reference

Table Mounted Laboratory One-way Gas Tap with Quick Release Couplings

Environmental information
Country of product manufacture

Denmark
