System-63Ø
Description

System-63Ø is a variant of System-36 PLUS which has been designed for use in circular apertures in 60 minute fire resistant doors.

Features:

  • A cost-effective solution to the problem of incorporating circular glazed apertures.
  • Use with an intumescent liner.
  • Is easy to fit.

System 63Ø is suitable for use with 6 mm Georgian wired glass or 6 mm Pyran-S® only.

Beads of the correct dimensions and angle must be used.

General information
Features

A cost-effective solution to the problem of incorporating circular glazed apertures

Use with an intumescent liner

Is easy to fit

System 63Ø is suitable for use with 6 mm Georgian wired glass or 6 mm Pyran-S® only

Beads of the correct dimensions and angle must be used

Specification data
Product Reference

Lorient Fire Resistant Glazing System: System 63Ø

Sodium silicate intumescent liner

40 mm wide, Ref: LX4002

50 mm wide, Ref: LX5002

Timber glazing beads -
Type

25 x 20 mm rebated and chamfered glazing beads, Ref: LGC2520

25 x 25 mm rebated and chamfered glazing beads, Ref: LGC2525

Finish

Oak

Beech

Utile

Columbian pine

Standard product features

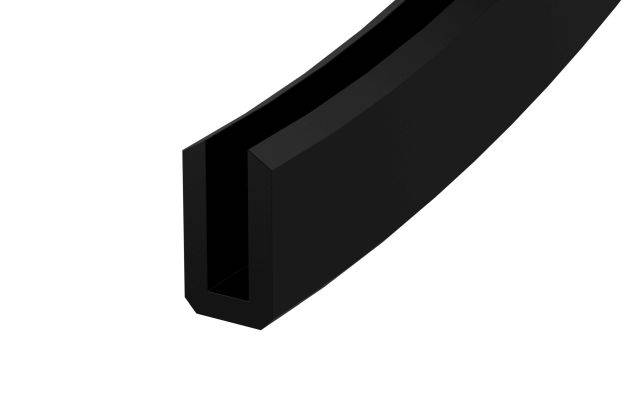

Channel dimensions:

27 x 15 mm, in 50 m coil, Ref: LG2715.

Channel colour:

Black.

Timber glazing beads:

Fixing: Pinned using 40 mm panel pins at 200 mm nominal centres.

Product Options

Sodium silicate intumescent liner:

  • 40 mm wide, Ref: LX4002.
  • 50 mm wide, Ref: LX5002.

Timber glazing beads:

  • For 44 mm thick doors or rebated screen frames – 25 x 20 mm (excluding rebate) rebated and chamfered (45°), Ref: LGC2520.
  • For 54 mm thick doors or rebated screen frames – 25 x 25 mm (excluding rebate) rebated and chamfered (45°), Ref: LGC2525. CERTIFIRE Ref: CF201
