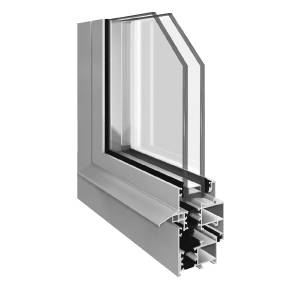

Dual colour, tilt and turn aluminium window, with polyamide thermal break.
Aluminium tilt and turn window, which can be tilted open for ventilation, or fully opened for internal cleaning and maintenance; available in dual colours and a range of glazing options.
Profiles are extruded from aluminium alloy (6060 T6, T5 or T4 to BS EN 12020-2/ BS 755-9). Outer frame sections are minimum 50 mm deep and incorporate two 20 mm polyamide thermal break sections. Structural profiles are designed so that the maximum deflection of any member will not exceed 1/175 of its span, with no evidence of permanent deformation once the load has been removed.
Joints in outer frame and vent members are formed with 45° mitres, reinforced with extruded aluminium cleats and stainless steel corner braces. Corner joints are glued and pneumatically crimped. Mullions and transoms are secured using stainless steel screws driven into snap-in fixing cleats which locate into the bead grooves within the framing sections. Joints are sealed using a small gap sealant.
Windows incorporate a pressure equalized drainage system. Opening vents have an internal flipper gasket with moulded corners fitted to their perimeter; fixed lights have concealed drainage with external, ‘snap-on’ drainage covers.
With suitable glazing, windows can contribute to meeting the requirements of Building Regulations for conservation of heat and power. Consult Metal Technology for further recommendations and details.
The windows provide Class IV weathertightness as defined by BS 6375-1 and BS 5368:
Lugs and/ or frame anchors used to secure windows to the building structure must accommodate predicted loads and deflection within design tolerances. Generally, fixings must be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm. Fixing lugs/ straps should be used only where they can be suitably concealed.
Secured by Design:
As drawing ___
As schedule ___
L10/25 Aluminium windows
L10/330 Aluminium windows
System 5-20 Polyamide Casement
As drawing ___
As schedule ___
24 mm insulating glass units
26 mm insulating glass units
28 mm insulating glass units
30 mm insulating glass units
32 mm insulating glass units
Limiting dimensions for opening vents:
Maximum length and width cannot be obtained simultaneously; refer to gearing manufacturer’s guide for configuration options.
Finish as delivered:
Aluminium sections are polyester powder coated to BS 6496, with the option of different interior and exterior colours. Consult Metal Technology for availability of colours and to obtain samples.
Windows can accommodate a range of insulating glass units and can be glazed in the factory or on site. Windows are dry glazed using ‘snap-in’ extruded aluminium beads with colour coded, co-extruded, PVC nitrile, captive ‘E’ gaskets externally and ‘wedge’ gaskets internally. Consult Metal Technology for recommendation and details.
Tilt and turn gearing is located within integral Euro Grooves extruded within the sections, and concealed in the hinge cavity. Gearing is sized according to vent size and weight.
Standard locking handles restrict the operation of the window to ventilation mode, unless they are unlocked for cleaning; re-locking the handles returns the window to ventilation mode.
Consult Metal Technology for recommendations and details of additional ironmongery options.
