System 2000 Horizontal Cavity Tray (Brick, Block and Stonework) for New Build

Description

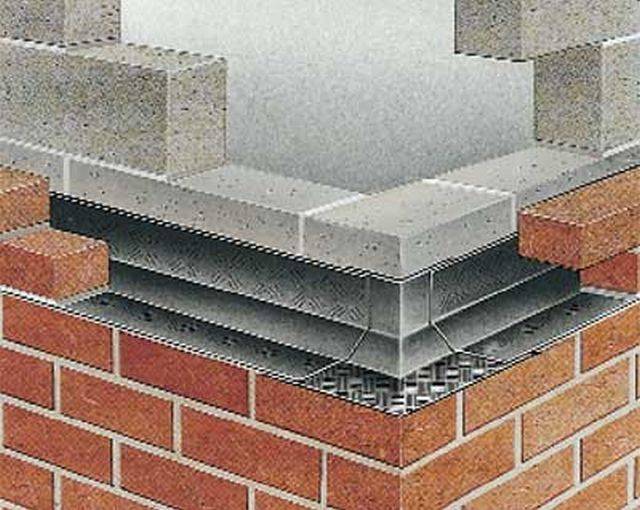

System 2000 is a horizontal cavity tray system for external leaf masonry construction generally not exceeding 103 mm thick and for cavity widths of between 50 mm and 125 mm.

Features:

  • Project specification and scheduling service available.
  • 150 mm high back upstand.
  • Low profile lapped joint between sections allows any length of brick, block or stone to be used without difficulty.
  • Angled section between cavity tray base and rear upstand automatically sheds water to the outer leaf.
  • Cavity tray builds into the outer leaf only to speed up installation to allow both inner and outer leafs to be built independently if required.
  • The system is available on request with pre-applied polystyrene strips. Polystyrene is much easier to rake out than mortar and offers a visual locator of the cavity tray so aiding the installation of post fitted lead work.

General information

Features

Project specification and scheduling service available

150 mm high back upstand

Low profile lapped joint between sections allows any length of brick, block or stone to be used without difficulty

Angled section between cavity tray base and rear upstand automatically sheds water to the outer leaf

Cavity tray builds into the outer leaf only to speed up installation to allow both inner and outer leafs to be built independently if required

Show more

Material

2 mm thick medium density polyethylene

Uniclass 2015

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Product Reference

System 2000 Cavity Tray

Location

As shown on drawings

Cavity width

___ mm

Within range 50 mm to 125 mm.

Horizontal tray, product code

Not required

2075/460 (100)

Length 460 mm, for 100 mm to 125 mm cavity.

2075/460 (100)P

As above with polystyrene strip.

2075/460 (50)

Length 460 mm, for 50 mm to 74 mm cavity.

2075/460 (50)P

As above with polystyrene strip.

2075/460 (75)

Length 460 mm, for 75 mm to 99 mm cavity.

2075/460 (75)P

As above with polystyrene strip.

2075/880 (100)

Length 880 mm, for 100 mm to 125 mm cavity.

2075/880 (100)P

As above with polystyrene strip.

2075/880 (50)

Length 880 mm, for 50 mm to 74 mm cavity.

2075/880 (50)P

As above with polystyrene strip.

2075/880 (75)

Length 880 mm, for 75 mm to 99 mm cavity.

2075/880 (75)P

As above with polystyrene strip.

External 90° Corner, product code

Not required

2010 (100)

For 100 mm to 125 mm cavity.

2010 (100)P

As above with polystyrene strip.

2010 (50)

For 50 mm to 74 mm cavity.

2010 (50)P

As above with polystyrene strip.

2010 (75)

For 75 mm to 99 mm cavity.

2010 (75)P

As above with polystyrene strip.

Internal 90° Corner, product code

Not required

2011 (50)

For 50 mm to 74 mm cavity.

2011 (75)

For 75 mm to 99 mm cavity.

2011 (100)

For 100 mm to 125 mm cavity.

External 135° Corner, product code

Not required

2012 (100)

For 100 mm to 125 mm cavity.

2012 (100)P

As above with polystyrene strip.

2012 (50)

For 50 mm to 74 mm cavity.

2012 (50)P

As above with polystyrene strip.

2012 (75)

For 75 mm to 99 mm cavity.

2012 (75)P

As above with polystyrene strip.

Internal 135° Corner product code

Not required

2013 (50)

For 50 mm to 74 mm cavity.

2013 (75)

For 75 mm to 99 mm cavity.

2013 (100)

For 100 mm to 125 mm cavity.

Stopend, product code

2003

Right hand, for 50 to 125 mm cavity.

2004

Left hand, for 50 to 125 mm cavity.

Standard product features

External masonry leaf thickness:

103 mm.

Material:

2 mm thick medium density polyethylene.

Colour:

Black.

Overall length:

880 mm (830 mm effective length) for general use, 460 mm (410 mm effective length) to make up run of cavity tray to required length.

Product Options

External masonry leaf thickness:

Consult Timloc for thicknesses exceeding 103 mm.
