Syntesis® Flush SINGLE WIRING-READY Pocket Door System - Architrave-free Sliding System

Verified by manufacturer 3 months ago

Eclisse UK

Architrave-free sliding pocket door system prepared for wiring. Ideal for Space saving with a minimalist aesthetic

Jump to:
+44 (0)333 5770828 Website

Application

Internal sliding pocket doors, flush fitting (no architraves or jambs) for residential applications, also suitable for industries such as hospitality, healthcare, commercial offices, and high-end retail where space efficiency and minimalist aesthetics are essential.

Description

Minimalist. Space-Saving. Wiring-Ready.

Designed for architects and specifiers seeking seamless integration and modern aesthetics, the Syntesis® Flush Wiring-Ready Pocket Door System from Eclisse UK combines minimalist design with advanced functionality. This innovative system allows for electrical components—such as sockets, switches, thermostats, and lighting—to be installed directly on the wall concealing the pocket, without compromising structural integrity or design intent.

Key Features & Benefits:

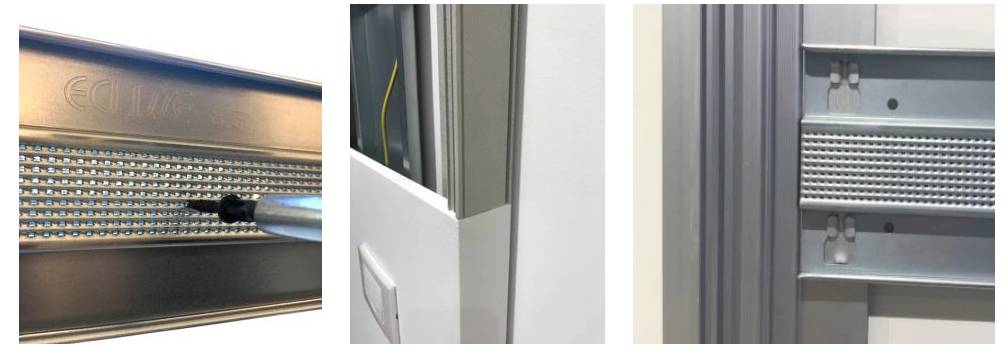

  • Wiring-Ready Innovation: Integrated wiring channel enables installation of electrical fittings on the pocket wall—ideal for smart home layouts and flexible lighting schemes.

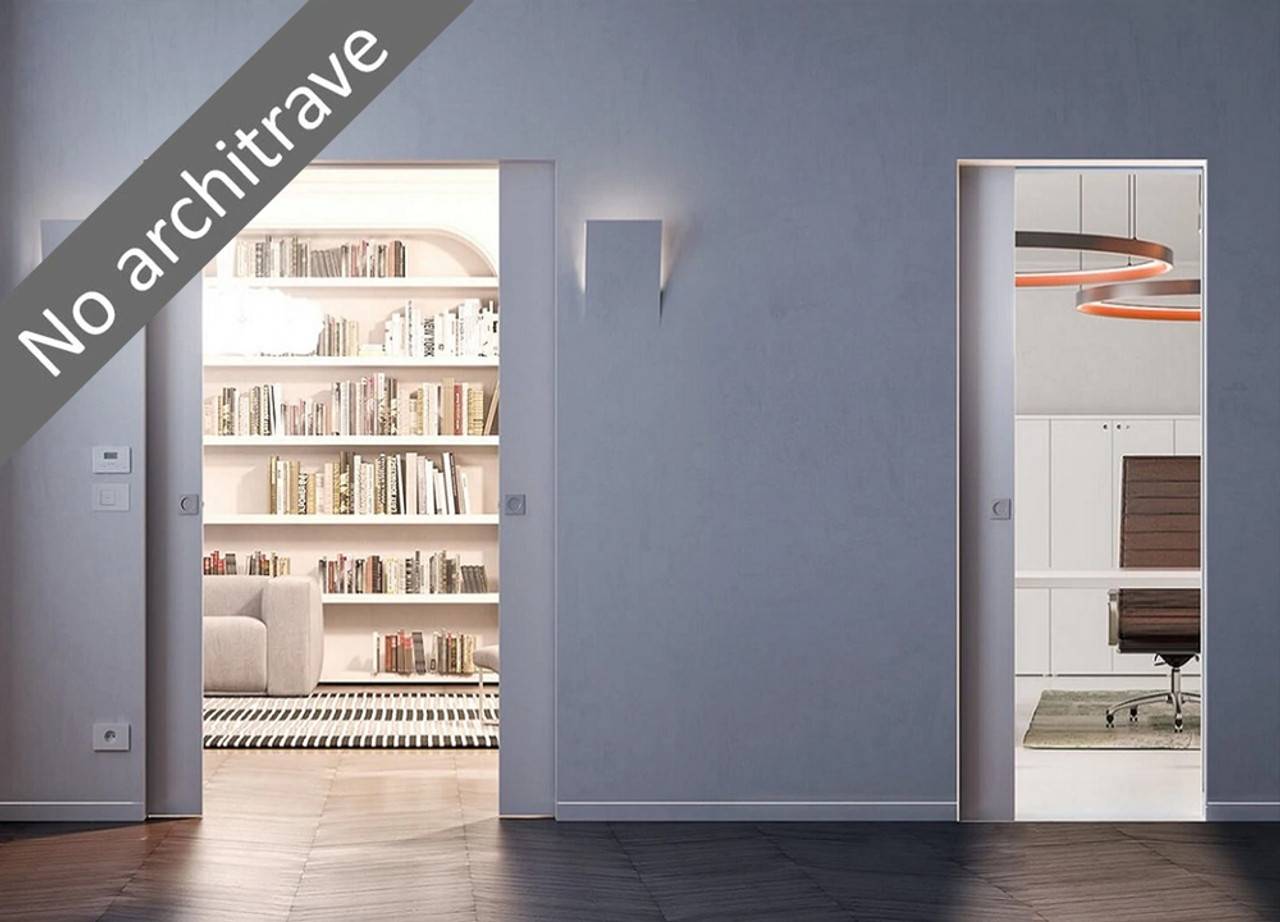

  • Minimalist, Architrave-Free Finish: Patented edge profile allows plaster to finish flush to the edge and into the return, delivering a clean, contemporary look.
  • Engineered for Strength: Reinforced aluminium profiles and joints reduce flex and virtually eliminate plaster cracking—making it the strongest system of its kind.
  • Space-Saving Design: Perfect for compact or open-plan environments, offering greater layout freedom and design flexibility.
  • Durability Assured: Maintenance-free track and runners tested to 100,000 cycles—equivalent to 25 years of average use.
  • Precision Adjustability: Fully adjustable front and rear doorstops; rear stop can be fine-tuned without removing the door.
  • Long-Term Confidence: Backed by a 15-year guarantee on the complete steel pocket system, track, and runners.

Note: When using flush pull handles, Eclisse recommends adjusting the stop so the door remains slightly protruded to avoid finger entrapment. Full retraction into the pocket is possible but at the user’s own risk.

Available Variants:

  • Standard (non-wiring) version
  • Double door configuration (specify separately)



General information

Color

Other

Finish

Other

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

150 mm

Guidance for specification option:

Finished wall thickness.

Height

Bespoke

Warranty description

15 year

Guidance for specification option:

Complete Eclisse steel pocket system and runners. Consult manufacturer for details.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/65 Sliding pocket doors

L20/525 Sliding pocket doors

P21/10 Door track and running gear

P21/350 Door track and running gear

Specification data - Sliding door and partition sets

Classification data

Performance

Internal.

Arrangement

Single-leaf top-hung.

Track system

Manufacturer's standard.

Door leaves

-

Construction

Doors specified separately, to be 44 mm thick.

Guidance for specification option:

44 mm door advised due to length of brushes supplied with system.

Doors specified separately, to be 35 mm thick.

Manufacturer guidance

See also Door below for standard door panels sizes.


Maximum door panel weight: Up to 100 kg.

Finish and colour

Specified separately.

Operation

Manual.

Hardware

Not required.
Flush pull.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Bathroom lock.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

As schedule.

Accessories

None.
ECLISSE BIAS® soft-close with anti-slam.

Guidance for specification option:

Soft close up to 40 kg.

ECLISSE BIAS® DS Bi-directional soft-close with anti-slam.

Guidance for specification option:

Soft close up to 40 kg.

Syntesis® flush skirting board adapter.

Guidance for specification option:

Recessed skirting board system allowing the skirting to be flush with the wall. Consult manufacturer for options and insert requirements.

Manufacturer guidance

Consult manufacturer for compatibility depending on door size required.

Door

626 x 2040 mm.

Guidance for specification option:

Maximum passage size: 600 x 2048 mm.

Overall size: 1400 x 2108 mm.

726 x 2040 mm.

Guidance for specification option:

Maximum passage size: 700 x 2048 mm.

Overall size: 1600 x 2108 mm.

826 x 2040 mm.

Guidance for specification option:

Maximum passage size: 800 x 2048 mm.

Overall size: 1800 x 2108 mm.

926 x 2040 mm.

Guidance for specification option:

Maximum passage size: 900 x 2048 mm.

Overall size: 2000 x 2108 mm.

1026 x 2040 mm.

Guidance for specification option:

Maximum passage size: 1000 x 2048 mm.

Overall size: 2200 x 2108 mm.

610 x 1981 mm.

Guidance for specification option:

2' 0" x 6' 6".

Maximum passage size: 584 x 1989 mm.

Overall size: 1384 x 2049 mm.

686 x 1981 mm.

Guidance for specification option:

2' 3" x 6' 6".

Maximum passage size: 660 x 1989 mm.

Overall size: 1560 x 2049 mm.

762 x 1981 mm.

Guidance for specification option:

2' 6" x 6' 6".

Maximum passage size: 736 x 1989 mm.

Overall size: 1736 x 2049 mm.

838 x 1981 mm.

Guidance for specification option:

2' 9" x 6' 6".

Maximum passage size: 812 x 1989 mm.

Overall size: 1812 x 2049 mm.

914 x 1981 mm.

Guidance for specification option:

3' 0" x 6' 6".

Maximum passage size: 888 x 1989 mm.

Overall size: 1988 x 2049 mm.

711 x 1981 mm.

Guidance for specification option:

2' 4" x 6' 6".

Maximum passage size: 675 x 1989 mm.

Overall size: 1575 x 2049 mm.

813 x 2032 mm.

Guidance for specification option:

2' 8" x 6' 8".

Maximum passage size: 775 x 2040 mm.

Overall size: 1775 x 2100 mm.

864 x 2032 mm.

Guidance for specification option:

2' 10" x 6' 8".

Maximum passage size: 825 x 2040 mm.

Overall size: 1925 x 2100 mm.

Other.

Guidance for specification option:

Non-standard sizes available on request, up to passage size of 1300 x 2700 mm. Consult manufacturer for options and insert requirements.

Finished wall thickness

150 mm.

Installation

Install frame at finished floor level. Consult manufacturer for detailed installation instructions.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Steel

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Expected Life

Lifetime

Literature

Syntesis® SINGLE Flush Pocket Door System Wiring Ready

Syntesis® SINGLE Flush Pocket Door System Wiring Ready
