Syntesis® Flush Hinged Single - Doorset

Verified by manufacturer 4 months ago

626 mm door panel

Eclisse UK Variant:

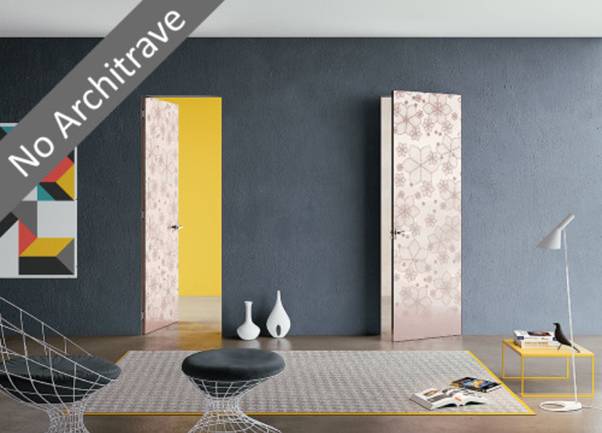

A single flush hinged door, architrave free.

Jump to:
BOS
+44 (0)333 5770828 Website

Application

Suitable for residential applications.

Description

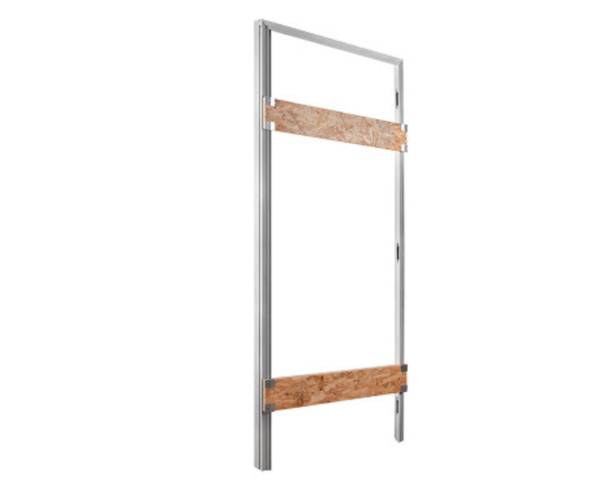

Syntesis® Flush Hinged is an Eclisse concealed frame doorset that eliminates the need for jambs or architrave. Available in both single and double versions, the Syntesis® Flush Hinged frame has a profile that allows for a crisp plaster finish right up to the edge. Combine this with Eclisse's ready to paint primed doors and door furniture to create a distinctive minimalist interior.


Features and benefits:

  • Enables clients to make a feature of flush doors or paint the doors the same colour as the walls so they blend into the background.
  • The box cross sectional frame has been designed for strength and rigidity from 2 kg/m aluminium and is designed to reduce flex and so maintain a crisp plaster finish without cracks.
  • The frame is protected against oxidisation and is then primed ready to paint.
  • Available with left or right, push or pull opening.
  • Can be used with standard metal, timber stud walls or masonry.
  • Each standard system comes with three concealed hinges that are adjustable in three axes.
  • Supplied with magnetic latch, bumper seals, hinges, hinge cover plates and strike plate.
  • 15 year guarantee on Eclisse frame. Three year guarantee on Eclisse primed doors.

General information

Color

Other

Finish

Pre-treated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Warranty description

15 year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Configuration

Single-leaf.

Double-leaf.

Manufacturer guidance

Available with left or right, push or pull opening.

Doorset size

Overall frame dimension: 702 x 2082 mm.

Frame

-

Material

Aluminium.

Finish

Primed ready for site finish.

Door leaf

-

Thickness

44 mm.

Panel details

Door panel made of an hollow core (honeycomb structure) with double solid wood perimeter and two primed MDF facings.

Facings

MDF board.

Finish

Primed ready for site finish.

Hardware

Magnetic latch, bumper seals, hinges and hinge covers and strike plate.

Accessories

None.

Door Self-Closer.

Walls

Metal/ timber stud.

Masonry.

Doors

626 x 2040 mm.

Guidance for specification option:

Maximum passage size: 610 x 2036 mm.

Overall size: 702 x 2082 mm.
