Swiftfit Corridor Equal Pair Doorset

Swiftfit Corridor Equal Pair Doorset

Verified by manufacturer 2 months ago

Safehinge Primera Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

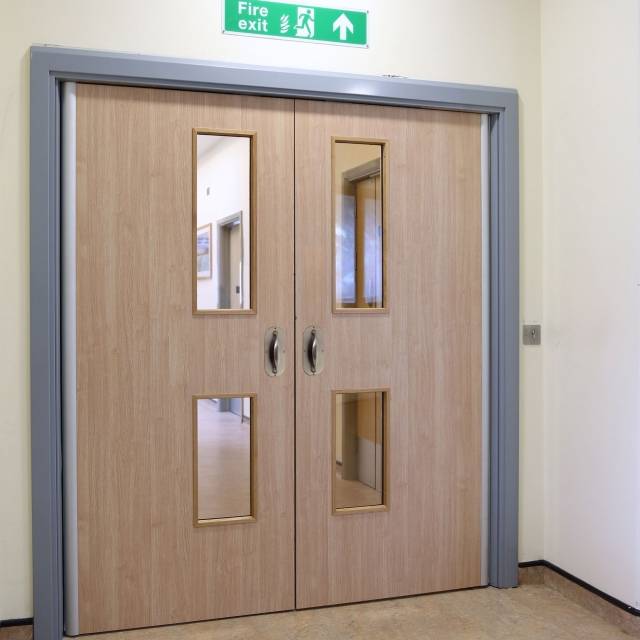

Corridor doorset, with equal double leaf, and metal frame.

Jump to:
+44 (0)330 0580988 www.safehingeprimera.com

Application

Suitable for secure ward entrance and cross-corridor applications.

Description

Steel framed, double leaf equal pair doorset.

General information

Color

Silver

Brown

Other

Polyester powder coated to any RAL colour.

Finish

Anodized

Veneered

Laminated

Material

Steel

Timber

Aluminium

Shape

Rectangle

Size

Leaf sizes up to 950 and 1100 mm.

-

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

One year

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Doorsets

Specification data - Aluminium doorsets

Configuration

Double leaf, single action.

Doorset size

Up to 950 mm.

Insert drawing/ reference.

Up to 1100 mm.

Insert drawing/ reference.

Performance

-

Fire performance

-

Fire integrity

Non-fire rated.

FD30.

FD60.

Frame

-

Material

Steel.

Swiftfit rapid-install metal frame.

Finish

-

Coating

Polyester powder coated steel, RAL.

Insert colour requirement.

Door leaf

-

Panel details

Laminate.

Consult manufacturer and insert requirements.

Veneer.

Consult manufacturer and insert requirements.

Material

Crown cut American white oak veneer, lacquer finished.

Beading

-

Material

Hardwood timber anti-ligature beading.

Fixing

Factory fixed with security screws.

Locking operation

Primera mechanical SOS (Staff Override System) communal lockset.

Electronic frame mount lock.

For use with a swipe card or fob.

Mechanical five-way SOS.

Mechanical one-way SOS.

Standard.

Handle type

Primera anti-ligature pinch grip pull handles mounted on radius-cut backplates.

Elephant's Trunk (730A).

Grab pull (731A).

Pinch grip (729A).

Standard.

Glazing thickness

15 mm.

Standard.

23 mm.

Closers

Not required.

Sureclose EMAG hold-open S80E concealed transom closer.

Sureclose standard S87 concealed transom closer.

Standard, with backcheck.

Vision panels

1300 x 250 mm (cut-out with Pyrostop glass to both leaves).

Locking mechanism

(Slave leaf locking).

One pair of flushbolts to the top and bottom of the secondary leaf.

Ironmongery

Floor/ wall mounted fixed stop.

Hinge finish

Polyester powder coated aluminium, RAL.

Insert colour requirement.

Satin anodized aluminium (SAA).

Standard.

Timber effect foil wrap aluminium.

Third party certifications

  • BM Trada Q-Mark
