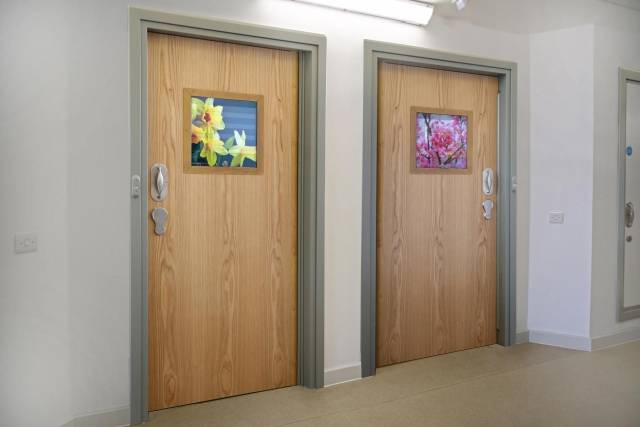

Anti-barricade bedroom/ WC doorset, with metal frame and two-second emergency access.
Single leaf doorset with metal frame and two-second emergency access, using collapsible anti-barricade stop. Suited to bedrooms and WC's in challenging environments.
Features and benefits:
Uniclass 2015 | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product Reference | Symphony Anti-barricade Bedroom/ WC Doorset |
Leaf size | Up to 950 mmInsert drawing/ reference. Up to 1100 mmInsert drawing/ reference. |
Colour/ Finish | - |
Door | LaminateConsult manufacturer and insert requirements. VeneerConsult manufacturer and insert requirements. |
Frame | Polyester powder coated steel, RALInsert colour requirement. |
Hinge | Polyester powder coated aluminium, RALInsert colour requirement. Satin anodized aluminium (SAA)Standard. Timber effect foil wrap aluminium |
Glazing bead | Not requiredClear lacquer hardwood beadPolyester powder coated steel, RALInsert colour requirement. Polyester powder coated steel, timber effect |
Lock type | Electronic five-way SOSFor use with a swipe card or fob. Mechanical five-way SOSStandard. Mechanical one-way SOS |
Locking operation | Euro-cylinderLifeline closed keywayDesigned to limit tampering by stopping foreign objects from entering the keyway. |
Vision panel | - |
Size | Not required404 x 404 mm800 x 250 mm |
Glazing thickness | 26 mmStandard. Low secure. 35 mmMedium secure. |
Closer | Not requiredStandard. Sureclose S87 concealed transom closerStandard. Brings controlled movement to the door. Sureclose free swing S80F concealed transom closerFor users with reduced strength. |
Handle type | Elephant's Trunk (730A)Grab pull (731A)Pinch grip (729A) |
FireRating | Non-fire ratedFD30 |
Acoustic seal | Not requiredAnti-tamper acoustic threshold seal31 dB acoustic rating. |
Door alarm | Not requiredPreparation only (for future install)RequiredFull door sensor, wirelessly connected to staff attack system. |
Standard product features | Configuration: Single leaf, anti-barricade. Frame: Swiftstop rapid-install metal frame with integral two-second access, collapsible anti-barricade stop. Door leaf finish: Crown cut American white oak veneer, lacquer finished. Vision panel: Vistamatic panel, with Lifeline keyway and thumbturn. Locking: Primera mechanical SOS (Staff Override System) lockset. Hinge: Surehinge anti-ligature pivot system. Ironmongery: Floor/ wall mounted door stop. |
Product Options | Glazing bead: Sureview steel beading. Locking operation: Only mechanical locks are available. Handles: Safehinge Primera anti-ligature pinch grip pull handle mounted on a radius-cut backplate as standard. |
