SX-C371 Structure Window Film
Verified by manufacturer 6 months ago
BS EN 13501-1
Certificate type

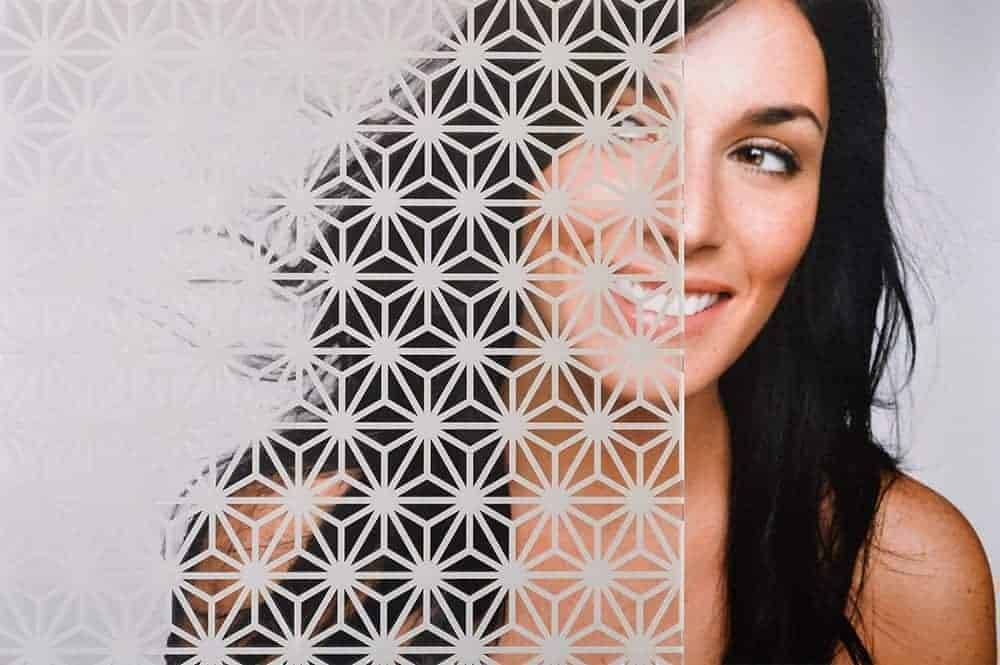

SX-C371 Structure Design is an optically clear window film that is ideal for semi obscuring direct visibility while providing a sense of openness.
Application
- This film is applied using the same methods used for installing window films.
- When applied to glass surfaces: Horizontal Burn (Flame Spread) ASTM D-635 inch Less than 1.0 UL 94 Rating UL 94 Classification V-O Class A 0 -25 Flame Spread Index 0 -450 Smoke Developed Index
Description
SX-C371 Structure Design is an optically clear window film with a white pattern, that is ideal for semi obscuring direct visibility while providing a sense of openness.
Features and benefits:
- For interior use.
- Polyester film.
- Pressure sensitive adhesive.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Supplied in a roll width of 48" (1219.2 mm).
General information
Color | Clear |
Finish | Film |
Material | Polyester |
Shape | Other Guidance for specification option: Roll. |
Width | 1219.2 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/630 Manifestation L40/96 Manifestation L40/95 Window film L40/610 Window film |
Specification data - Plastics window films
Purpose | Decorative. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Material | Polyester. |
Colour | Clear. |
Dimensions | 1219.2 mm.Guidance for specification option: Fixed width roll. |
Light transmission | 56%. |
UV Transmission | 21%. |
Adhesive | Clear, pressure-sensitive. |
Release Liner | Silicone coated. |
Film thickness | 50 µm polyester. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature

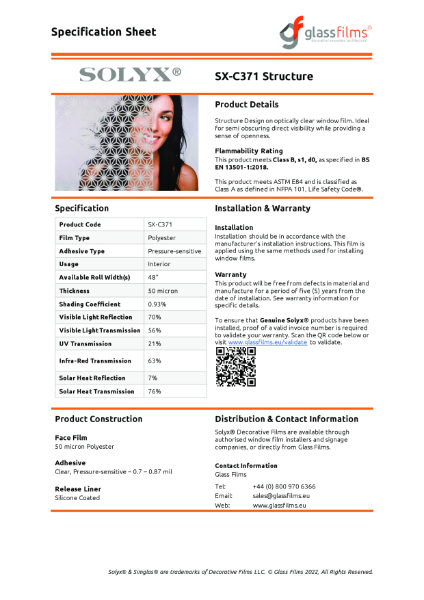

SX-C371 Structure Specification Sheet
