SX-9100 Chicago Window Film - Textured Transparent Film for Glass
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
SX-9100 Chicago is a a polyester film for semi-privacy distraction, decorative or architectural applications.
Application
- This film is applied using the same methods used for installing window films.
- This product meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.
Description

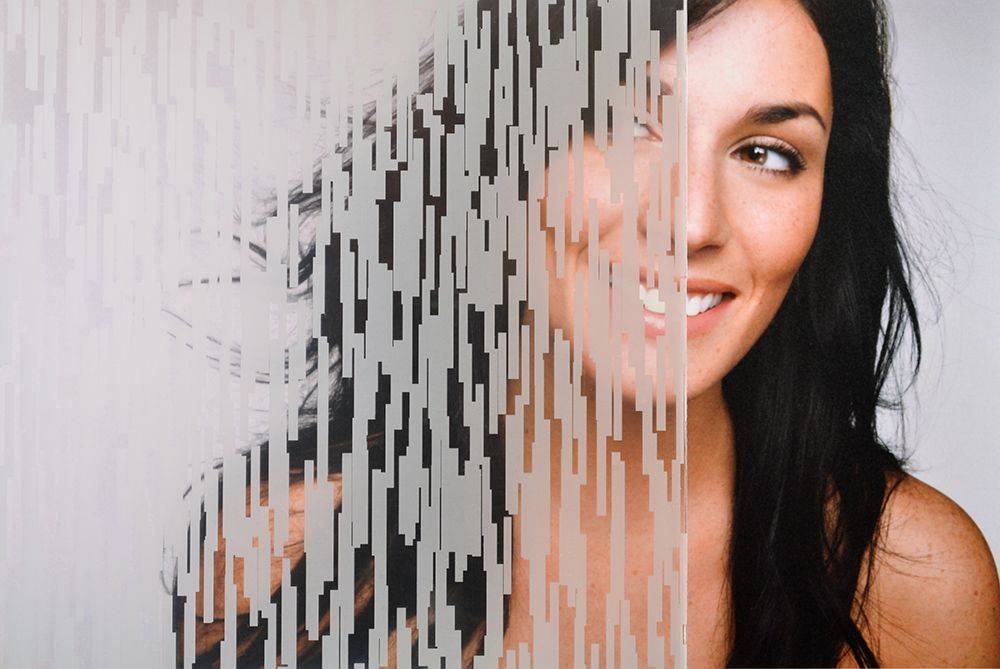

SX-9100 Chicago is a a polyester film for semi-privacy distraction, decorative or architectural applications. The film has a modern pattern of short, fragmented, white strokes with clear background. (A derivative of our SXHE-1034 Ice Forest).
Features and benefits:
- For interior use.
- Polyester film.
- Pressure sensitive adhesive.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Supplied in a roll width of 60" (1524 mm).
General information
Color | Clear |
Finish | Film |
Material | Polyester |
Shape | Other Guidance for specification option: Roll. |
Width | 1524 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/96 Manifestation L40/630 Manifestation L40/95 Window film L40/610 Window film |
Specification data - Plastics window films
Purpose | Decorative. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Material | Polyester. |
Colour | Clear. |
Dimensions | 1524 mm.Guidance for specification option: Fixed width roll. |
VisibleLightTransmittance | 56%. |
UV Transmission | 50%. |
Adhesive | Acrylic, clear pressure-sensitive. |
Release Liner | 51 µm polypropylene, silicone coated. |
Film thickness | 51 µm polyester. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature

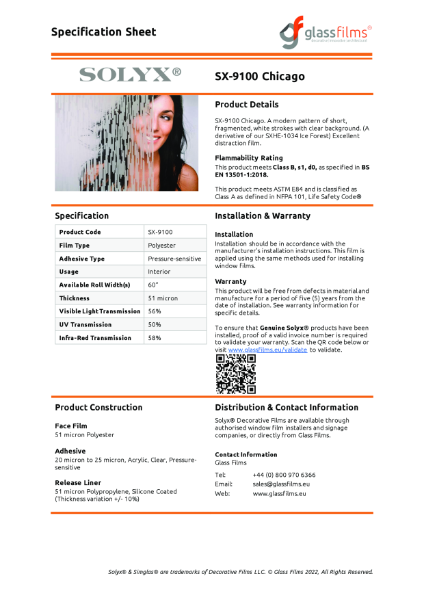

SX-9100 Chicago Specification Sheet
