SX-3140 Dusted Crystal Window Film
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type

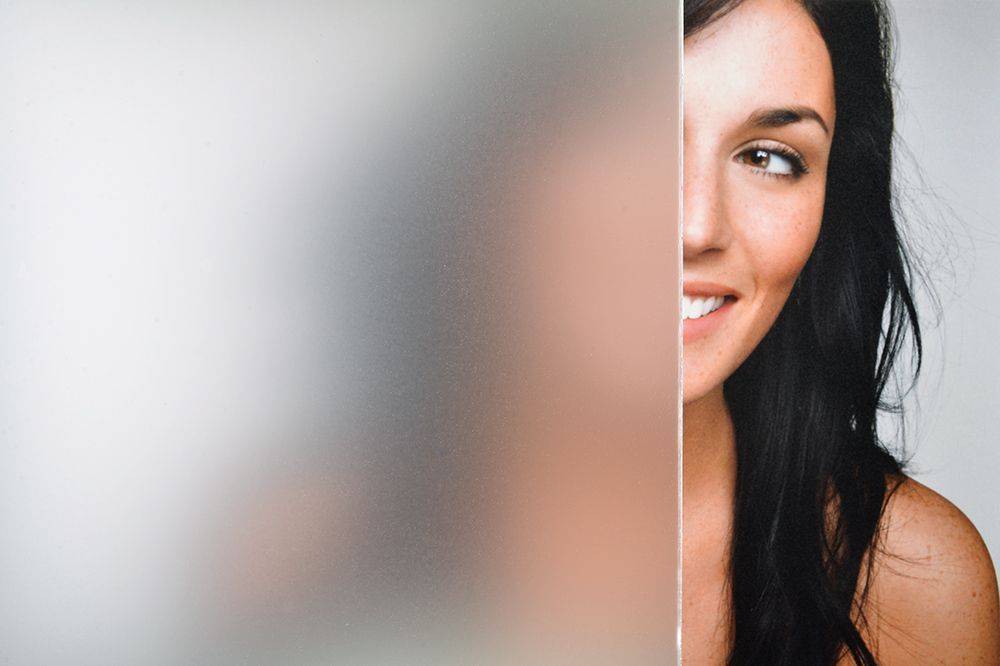

Dusted crystal window film.
Application
For application to interior and exterior glass.
Description
Dusted crystal window premium film, 2-mil (50 micron) cast vinyl with an etched look added.
Features and benefits:
- For interior and exterior use.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Made from 51 µm-thick vinyl.
- Supplied in fixed roll width of 48” (121.92 cm).
- Supplied with a paper liner and water-based acrylic, clear, pressure-sensitive adhesive.
This product meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.
General information
Color | Clear |
Finish | Smooth |
Material | Vinyl |
Width | 1219.2 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/95 Window film L40/610 Window film |
Product range |
Specification data - Plastics window films
Purpose | Privacy. |
Material | Vinyl. |
Colour | Clear. |
Dimensions | 1219.2 mm.Guidance for specification option: Fixed roll width. |
Fire performance | To BS EN 13501-1:2018, Class B, s1, d0. |
Adhesive | Clear, pressure-sensitive. |
Film thickness | 51 µm. |
VisibleLightTransmittance | 55%. |
UV Transmission | 11%. |
SolarReflectance | 7%. |
SolarTransmittance | 76%. |
ShadingCoefficient | 0.93. |
VisibleLightReflectance | 79%. |
SolarAbsorption | 17%. |
Release Liner | Transparent, synthetic, plottable. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Vinyl |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Vinyl Fire Certificate
