Description

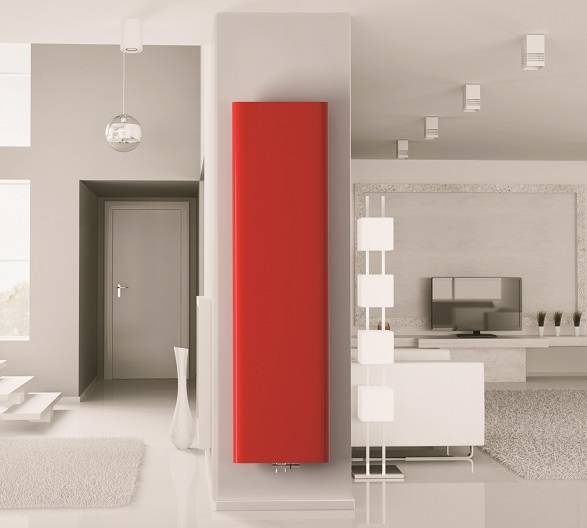

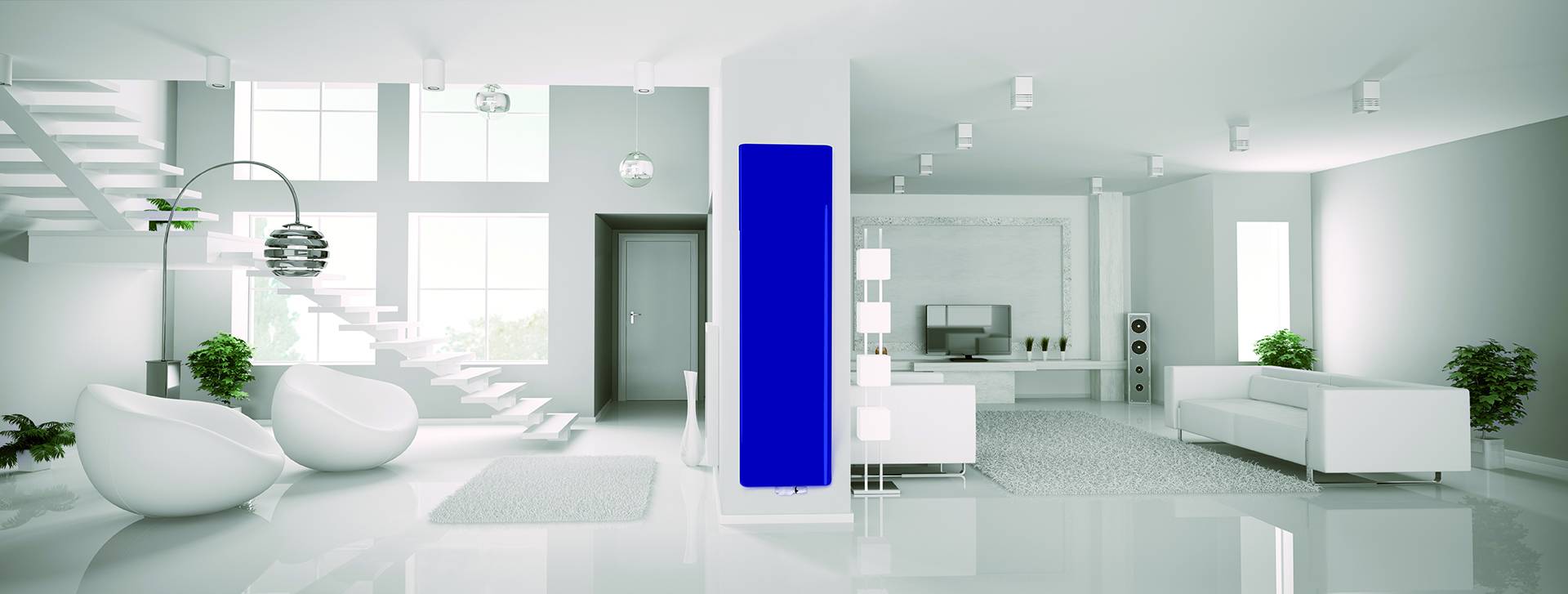

Vertical premium panel radiator with a one-piece, curved steel front cover that gives it a modern and aesthetically pleasing designer feel/ appearance.

Features and benefits:

  • Performs to a maximum working pressure of 116 psi (8 bar).
  • Conforms to BS EN 442.
  • Available in a range of 12 sizes.
  • Available in white as standard, can be specially ordered in up to 36 colours, making it suitable for matching to a corporate or specific colour décor.
  • Five-year manufacturer’s warranty.

General information
Specification data
Product Reference

Swing

Style

K2

119 mm depth (129 mm with projection).

P+

96 mm depth (106 mm with projection).

Colour

White (RAL 9016)

Standard.

Special order

Insert requirement from manufacturer's literature, available in 35 colours.

Centre tap thermostatic radiator valve (TRV)

Angled left chrome

Angled left white

Straight chrome

Straight white

Standard product features

Heat output:

1124–2376 W/ 4176–8107 Btu/hr dependent on size and style, consult manufacturer's literature for information.

Emitter length:

Dependent on size and style, consult manufacturer's literature for information.

Casing length:

Dependent on size and style, consult manufacturer's literature for information.

Connections:

½” inlet connections as standard.

Pressures:

  • Working pressure: 10 bar.
  • Operating pressure: 13.5 bar.

Technical characteristics:

Dependent on size and style, consult manufacturer's literature for information.

Product Options

Style:

Certain styles are only available with certain sizes, consult manufacturer for information.
