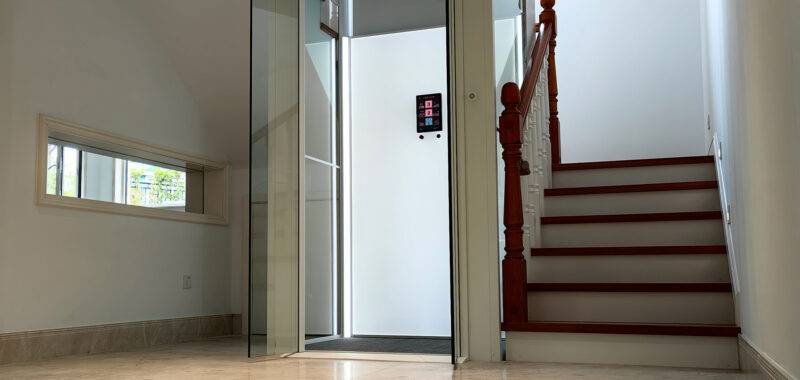

Swift Pro - Home Lift

Verified by manufacturer 3 days ago

SWIFT Home Lifts UK Ltd

A battery-driven home lift with a 15.4-inch touch display, 180° swing-open doors, and customizable design options for smooth floor-to-floor movement.

Jump to:

Application

Designed for residential use to provide smooth and safe vertical transportation between floors in homes, including narrow hallways and tight entrances.

Description

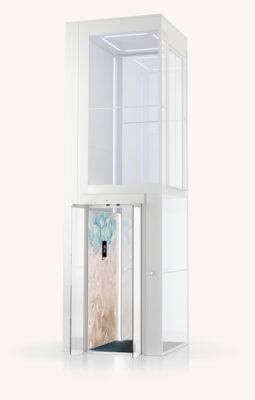

SWIFT Pro is a home lift featuring a shaft and an L-shaped platform that smoothly moves you between floors. It is controlled by a 15.4-inch touch display loaded with smart features.

Features and benefits:

  • Premium design with a dynamic 15.4-inch touch display.
  • Customisable floor names and user profiles for personalised lift and door speed settings.
  • Carefully selected ArtWalls, colours, light features, and flooring options to match personal preferences.
  • A-rated energy consumption comparable to an A-rated dishwasher at full operation.
  • Powered by a 48 V battery-driven IPM-SynRM motor with next-generation motor control technology.
  • 180° swing-open doors with built-in obstacle detection and adjustable door speed.
  • Anti-trap system maintaining full operation during external power failures.
  • Remote monitoring to minimize maintenance and service costs.
  • Complies with European Machinery Directive 2006/42/EC safety requirements.
  • Ten-year warranty for the screw and nut drive system and five-year warranty for the lift with a support and maintenance package.
  • Over 90% of components are recyclable.

General information

Color

Finish

Metallic

Other

Painted

Material

Aluminium

Glass

Metal

Fabric

Shape

Rectangle

Length

830 mm

1200 mm

1400 mm

Width

600 mm

850 mm

1000 mm

1100 mm

Height

Bespoke

Warranty description

Five year

Guidance for specification option:

Five-year warranty for the lift with a support and maintenance package.

Ten year

Guidance for specification option:

Screw and nut drive system.

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Sustainability data

Material

Aluminium
Glass
Metal
Fabric

BIM objects

Platform Compatible Version
IFC
-

1

Literature

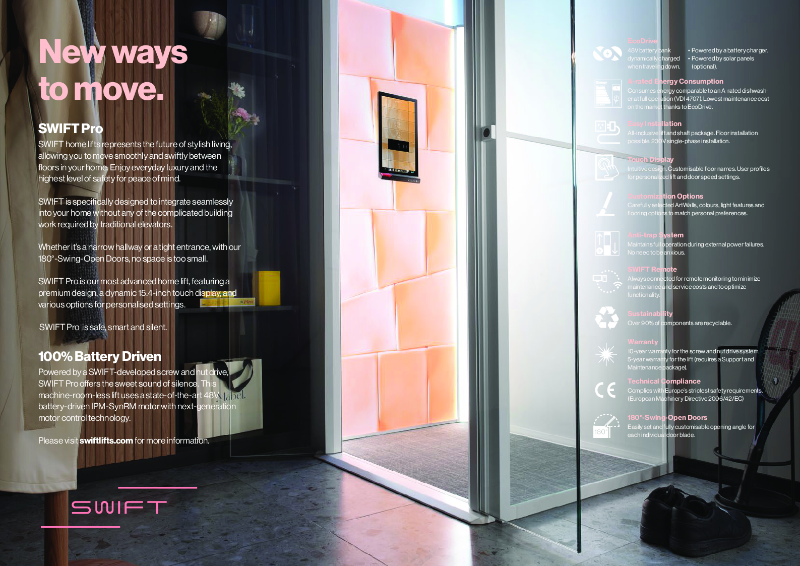

SWIFT Pro - Product Datasheet

SWIFT Pro - Product Datasheet

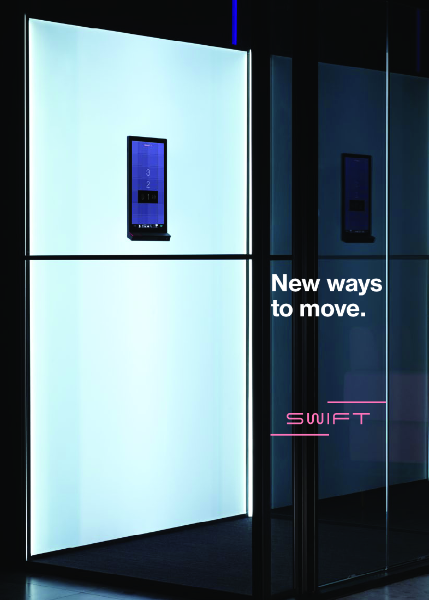

SWIFT Product Catalogue

SWIFT Product Catalogue

Similar products from SWIFT Home Lifts UK Ltd

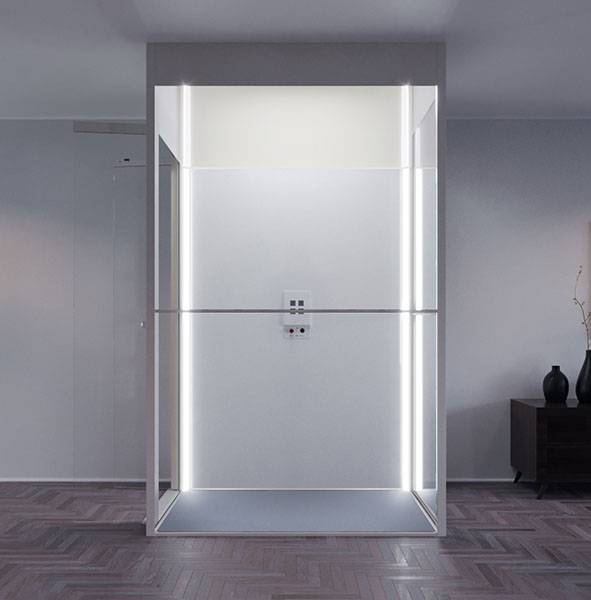

Swift Lite - Home Lift
