Manually operated, bi-Folding industrial door with high insulation values available in a range of colours. The door consist of solid, polyurethane filled panels that are hinged at the jamb.

Jump to:
+44 (0)1767 317090 www.jewersdoors.co.uk
Description

New Swift doors are aesthetically pleasing, easy to install and offer many safety features. The system is ideal for situations that require rapid movement in and out of a building. The doors do not require a bottom track or load-bearing lintel.

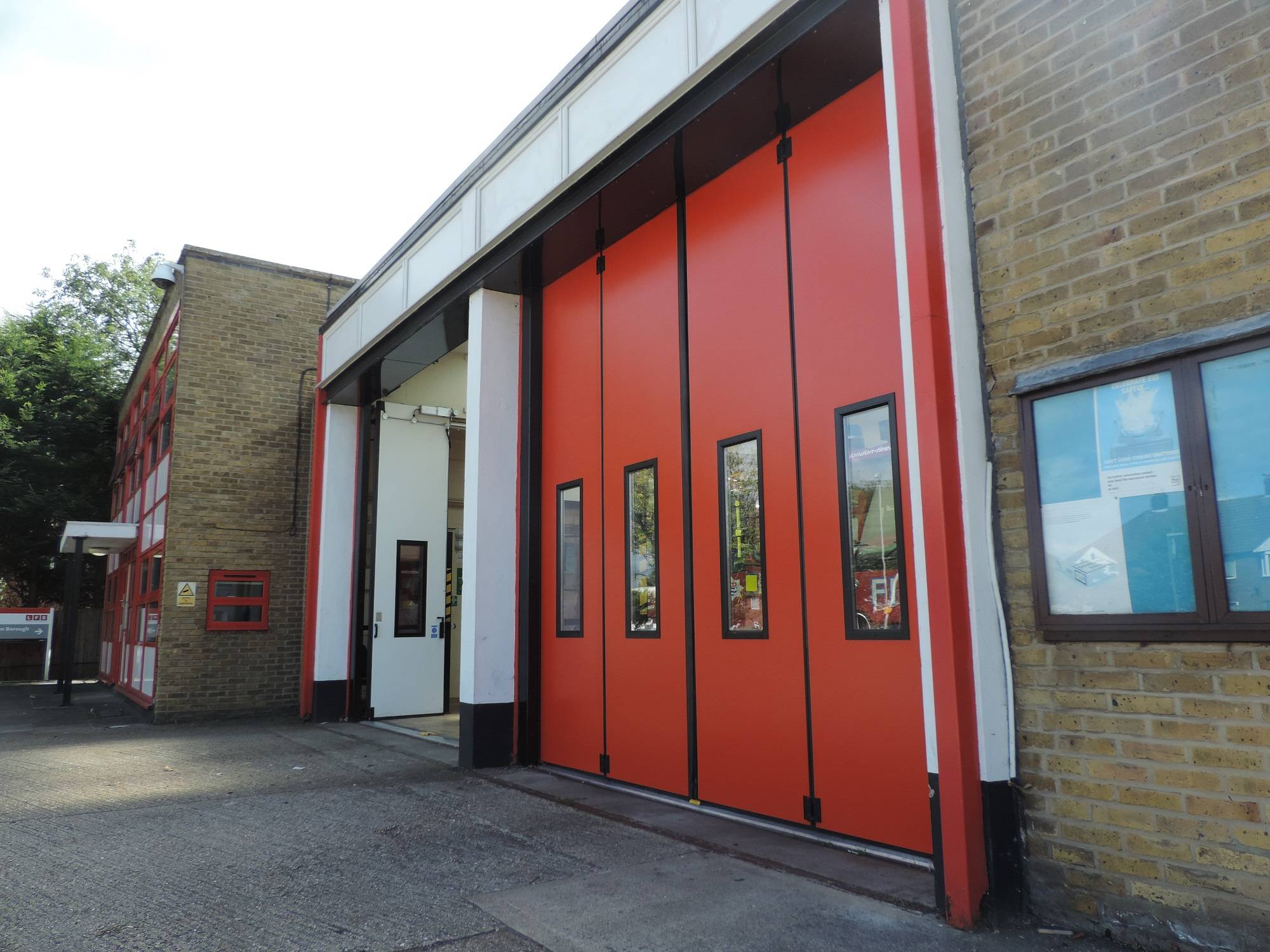

Typical applications for Swift doors include: fire stations, ambulance bays, rail maintenance sheds, vehicle workshops, loading bays, treatment works, spray booths, workshops, etc.

Key features:

  • Fast, easy, manual or rapid automatic operation.
  • Simple to install.
  • Durable, reliable and low maintenance.
  • Fully weather sealed and incorporating full height finger-nip protection between the leaves.

General information

Features

Side hung, available in multiple combinations, leaves fold inwards at 90°

Finish

Colorcoat LG Plastisol in poppy red, solent blue, ocean blue, olive green, goosewing grey, merlin grey and white, or Colorcoat Prisma in silver metallic, inside face -Colorcoat LG Plastisol in white, all hinges and drop bolt sleeves are black polyester powder coated in RAL 9005 (M)

Material

Aluminium, stainless steel, galvanised steel

Shape

Rectangle

Size

6000 x 5700 mm

Uniclass 2015

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/530 Sliding folding external doors

Specification data - Sliding folding doorsets

Product Reference

Phoenix Swift

Door leaf configuration

-

Type

2+0 leaves

2+1 leaves

2+2 leaves

3+0 leaves

3+1 leaves

3+2 leaves

3+3 leaves

Finish and colour

Colorcoat® LG Plastisol in stock colour external, White internal

Insert colour requirements.

Polyester powder coated external to standard RAL colour, Colourcoat® Plastisol in White internal

(Option 1). Insert colour requirements.

Polyester powder coated external and internal in standard RAL colour

(Option 2) Insert colour requirements.

Operation

Manual operation

Applies to all leaf configurations.

Electric operation with high level manual release

(Option 1) Applies to 2+0 and 2+2 leaf configurations only.

Electric operation with low level manual release handles

Standard Applies to 2+0 and 2+2 leaf configurations only.

Ironmongery

-

Manual doors

Drop bolts and pull handles

Standard to all door leaf configurations, manually operated only.

Espagnolette bolts

(Option 1) Full height internal bolt - fitted as in lieu of drop bolt and pull handle.

Lever furniture to odd leaf

Standard to 2+1, 3+0, 3+1, 3+2 and 3+3 leaf doors.

Drop bolt and pull handle to odd leaf

(Option 1) Fitted in lieu of Lever Furniture to 2+1, 3+0, 3+1, 3+2 and 3+3 leaf doors.

Espagnolette bolt to odd leaf

(Option 2) Fitted in lieu of Lever Furniture to 2+1, 3+0, 3+1, 3+2 and 3+3 leaf doors.

Electric doors

Drive unit holds door firm

Standard locking to electric door.

Lever operated floor bolt

(Option 1) Fitted to electrically operated doors where additional security is required.

Vision panels

Not required

680 x 370 mm snap-lock

Option 1.

Aluminium frame DG-TG, 400 x 600 mm

Option 2.

Aluminium frame DG-TG, 600 x 600 mm

Option 2.

Aluminium frame DG-TG, 400 x 1200 mm

Option 2.

Aluminium frame DG-TG, 600 x 1200 mm

Option 2.

Wicket door

Not required

Lever handle furniture

Option 1.

Emergency panic bar furniture

Option 2.

Surround frame

Not required

Supplied by others.

150 x 75 x 10mm RSA rear mounted frame

Option 1.

200 x 100 x 5mm RHS between wall frame

Option 2.

Threshold

Not required

Not recommended (Option 1).

Chamfered aluminium threshold

Standard to Swift doors.

Control method

Deadman

Continuous push to open, continuous push to close.

Semi-automatic

Single push to open, single push to close (Option 1).

Automatic

Single push to open, automatic timed return close (Option 2).

Safety features

Safety edge(s)

Full height opto-electronic, must be selected as minimum if selecting Control Method Option 1 or 2.

Photocell(s)

Send / receive photocell.

Light curtain

2 m high full width light curtain.

Wicket door interlock

Fitted as standard to electric doors with wickets.

Photocell posts

RHS angle steel posts, fitted if you require an internally mounted photocell.

Traffic lights

Red and green LED traffic light mounted on the door leaf.

Additional Controls

Digi-key

Stainless steel Bewator codelock.

Extra push button

Additional Run / captive stop push button unit.

Keyswitch

Sprung return keyswitch in separate enclosure.

Mircowave sensor

Opens door on detection of oncoming vehicles.

Radio control

Remote operation of door.

Standard product features

Arrangement:

Side-hung, insulated bifold.

Opening size:

  • Manual operation (maximum w x h): 5.7 x 6 m.
  • Power operation (maximum w x h): 4.75 x 6 m.
  • Refer (Download SWTSPEC) Swift door size configuration chart for size restrictions.

Track system:

  • Top guide track: Galvanized steel channel mounted back to the surround frame with 6 mm pressed steel brackets.
  • Top guide rollers: Nylon guide wheels running on steel shafts mounted within black aluminium extrusions.
  • Threshold plate: A threshold plate is not supplied but not installing a threshold may reduce the effectiveness of the bottom seals and expedite seal wear.

Door leaf:

Thickness:

  • 52 mm.
  • Panel construction: 1.6 mm thick cold rolled galvanized dovetail channel frames with 5 mm thick local reinforcement for hardware. The panel to be injected with CFC free expanded polyurethane insulation during the manufacturing process.

Frame:

A flush steel goalpost surround frame should be provided in order to install a Swift door. The minimum thickness of material to be 5 mm, and the width of the internal surface to be minimum 150 mm. Note: A surround frame is not included with a Swift door as standard.

Hinges:

  • Jambs: The weight of each door half is supported by two pairs of jamb hinges. An M24 vertical adjustment screw, 16 mm hinge pin, and an Igus bush complete the assembly, and provide simple, accurate setting during installation, and a low-maintenance, heavy-duty, low-friction component.

Intermediate:

  • Apex hinge pairs are machined from solid aluminium extrusions, fitted with sealed for life Igus bushes and 16 mm diameter stainless steel hinge pins. A concealed peg ensures that the hinge pins cannot be removed from the outside. Hinges are finished in black polyester powder coat to RAL 9005(M).

Seals:

Flexible rubber seals are fitted to all edges of the door, and between door leaves. All seals are purpose-designed EPDM extrusions, which press into, and blend seamlessly with the door panels. Each seal provides full finger trap safeguarding, and protection against weather, dust and sand.

Locking and handles:

- Manually operated door:

  • Between pairs of leaves to all door configurations: A top and bottom espagnolette shoot bolt operated via an internal, non-lockable lever handle is fitted in lieu of a drop bolt and pull handle.
  • Active leaf to 3+0, 2+1, 3+1, 3+2 and 3+3 leaf configurations: The active leaf to be used as a full height pass door. Hardware comprises a Briton 5520 mortise sashlock, a pair of black Hewi lever handles, external Europrofile cylinder and internal thumbturn.

- Power operated door:

Low Level Manual Release: In the event of power failure the motor can be disengaged using a low-level lever mounted on the inside face of the door. A built in pull handle enables the door to be instantly opened in a single quick action.

Product Options

Power operation equipment:

A range of safety and control equipment is fitted or is available to order.

Safety Features:

Safety Edges

A full height opto-electronic safety edge is mounted within each leading edge seal of the door. An impact on the edge during closing will automatically stop and re-open the door. Safety edges are continuously monitored so the door can not close automatically in the event of damage or failure of the edge.

Photocells

A FAAC XP15W send / receive photocell is fitted across the opening. The receiver unit is fitted with a long-life battery to avoid hard wiring. Photocells can be fitted for closing safety, opening safety, or a combination of opening and closing. If a closing safety beam is broken during the closing cycle, the door will automatically stop and re-open. If an opening safety beam is broken during the opening cycle, the door will automatically stop.

Traffic Lights

A red and green 24V DC LED traffic light unit is fitted. The unit is sized 370mm x 190mm with 24 LEDs to each light, and is intended to be mounted directly on the inside face of the door or onto a traffic light post. Sequence of operation is Red light on when door closed or part closed, Green light on when door fully open. A pair of 24Vdc limit switches is supplied to monitor the fully open position. Photocell / Traffic Light Posts.

A pair of 100x100 RHS right angle steel posts are fitted on the inside of the bunched door leaves to mount an internal photocell and / or traffic lights. Posts are painted yellow for maximum visibility.

Additional Controls:

  • Push Button – Additional Run/Captive stop push button unit.
  • Keyswitch – Sprung return keyswitch in separate enclosure for operation of the door by keyholders only. For internal or external use.
  • Digi-key – Bewator K42 stainless steel codelock for operation of the door by authorised persons only. For internal or external use.
  • Radio Control – 868MHz radio control system for remote operation of the door from a vehicle or control room. FAAC Plug-in radio receiver supplied with 1 twin channel transmitter. Additional transmitters available for multi-user systems.
  • Mircowave Sensor – High level sensor to open the door on detection of oncoming vehicles. Adjustable so as to ignore pedestrians, or parallel traffic. Please note: maximum opening height is 5m for microwave sensors.

Wicket door:

  • Option 1: Standard lever furniture. Wicket door opens outwards. Hardware comprises a Briton 5520 mortise sashlock, 25 mm low-profile anodized aluminium lever handles, external Europrofile cylinder with internal thumbturn, 1½ pairs of stainless steel butt hinges and a hidden door limiting stay. 85 mm high step with 40 mm wide aluminium threshold strip.
  • Option 2: Emergency escape furniture. Wicket door opens outwards. Hardware comprises a Briton 379 panic bar, external override cylinder and finger latch, 1½ pairs stainless steel butt-hinges and a hidden overhead door limiting stay. 85 mm high step with 40 mm wide aluminium threshold strip.

Vision panels:

  • Option 1: Black thermoplastic, "snap-lock‟ window frame with double-glazed 1.5 mm thick PMMA outside, 1.5 mm thick polycarbonate inside. Overall frame size 680 mm x 370 mm.
  • Option 2: Aluminium window frame with one-piece inner liner tray. Window units are double glazed (4~20~4), argon filled, low E toughened glass. Frames are polyester powder coated in matt black to RAL 9005(M), fully sealed, and available in a choice of frame sizes.
