Application

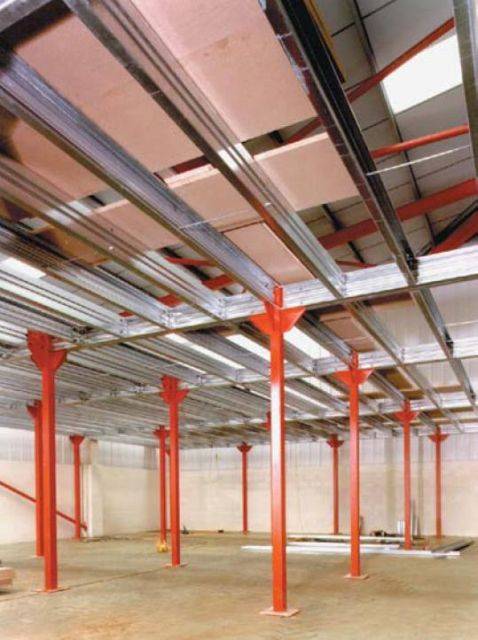

Uses include mezzanine floors, long span ceiling beams, storage platforms, portal framed and modular buildings.

Description

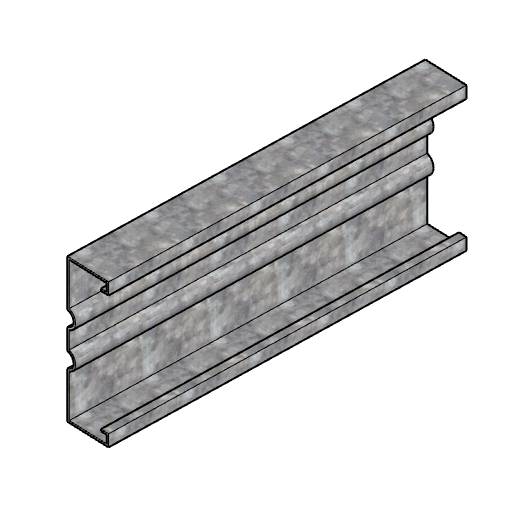

Multi-purpose lightweight steel structural beam systems. Beams are manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm²

Application:

Uses include mezzanine floors, long span ceiling beams, storage platforms, portal framed and modular buildings.

General information
Material

Hot dipped zinc coated steel

Uniclass 2015
Cold-formed galvanized steel sections (Pr_20_76_51_21)Primary
Specification data - Cold-formed galvanized steel sections
Product Reference

SB22012 SwageBeam

220 mm deep, 1.2 mm thick

SB22015 SwageBeam

220 mm deep, 1.5 mm thick

SB22018 SwageBeam

220 mm deep, 1.8 mm thick

SB22020 SwageBeam

220 mm deep, 2.0 mm thick

SB22024 SwageBeam

220 mm deep, 2.4 mm thick

SB22030 SwageBeam

220 mm deep, 3.0 mm thick

SB22032 SwageBeam

220 mm deep, 3.2 mm thick.

SB25015 SwageBeam

250 mm deep, 1.5 mm thick

SB25018 SwageBeam

250 mm deep, 1.8 mm thick

SB25020 SwageBeam

250 mm deep, 2.0 mm thick

SB25024 SwageBeam

250 mm deep, 2.4 mm thick

SB25030 SwageBeam

250 mm deep, 3.0 mm thick.

SB30015 SwageBeam

300 mm deep, 1.5 mm thick

SB30018 SwageBeam

300 mm deep, 1.8 mm thick

SB30020 SwageBeam

300 mm deep, 2.0 mm thick

SB30024 SwageBeam

300 mm deep, 2.4 mm thick

SB30027 SwageBeam

300 mm deep, 2.7 mm thick.

SB30030 SwageBeam

300 mm deep, 3.0 mm thick

SB30032 SwageBeam

300 mm deep, 3.2 mm thick.

Length

SwageBeam roll formed to ordered length; insert requirements. Holes positioned along length as required.

Accessories

None

CB220

Column face bracket.

CTB300

Column top bracket.

LC220

Light end cleat.

LC250

Light end cleat.

LC300

Light end cleat.

SC220

End cleat

SC250

End cleat

SC300

End cleat.

Standard tie rods

M16 set screws

Standard product features

Material:

- SwageBeam:

Manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm².

- End cleats:

Manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm².

- Column brackets:

Made from Grade S315 steel, supplied unpainted.

- Standard tie rods:

10 mm diameter zinc plated carbon steel rod, threaded each end complete with four plated nuts and washers.

- M16 set screws:

Plated M16 (minimum grade 4.6) hex head screws and nut with two plated washers.

- Holes:

  • 18 mm-diameter for connection details.
  • 14 mm square tie rod connection.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
