Description

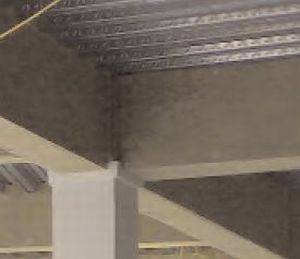

A suspended ceiling that provides fire resistance to steel beams. The system uses one or two layers of SUPALUX® boards supported on a suspended metal grid.

SUPALUX® is a strong and rigid non-combustible calcium silicate board designed to provide fire resisting ceiling constructions. Non-coated calcium silicate boards can be left untreated, or decorated with water or oil-based paint, paper or vinyl, plaster or decorative renders. Note that the surface spread of flame properties may be negated when the boards are decorated.

General information
Specification data - Unit/ modular suspended ceiling systems
Product Reference

Suspended protection to steel beams

Board size

600 x 600 mm

600 x 1200 mm

Grid exposure

Concealed

Exposed

Fire resistance to BS 476-3

30 minutes - exposed grid

60 minutes - exposed and concealed grid

90 minutes - concealed grid

120 minutes - concealed grid

Standard product features

Reaction to fire:

  • To BS 476-7, Class 1.
  • In accordance with Building Regulations Approved Document B, Class 0.
