Solid Wood & Aluminium TIMBER EFFECT Slatted Modular Ceiling - Slatted Modular Ceiling Panels

Name: Solid Wood & Aluminium TIMBER EFFECT Slatted Modular Ceiling - Slatted Modular Ceiling Panels
Brand: BCL Timber Projects Ltd
SKU: jcebtbTqU9qY1c2iNCcokr

Verified by manufacturer today

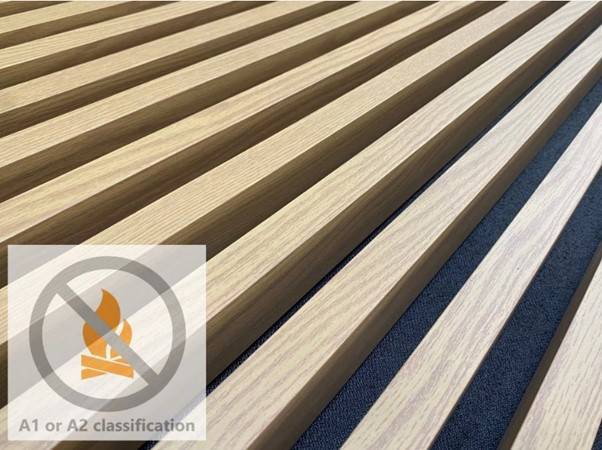

Aluminium Timber Effect Slats – Internal/ Acoustic

BCL Timber Projects Ltd

Product certifications:

Health & Safety Accreditation
Certificate type
TRADA
Certificate type
Health & Safety Accreditation
Certificate type
Grown in Britain - GiB
Certificate type
PEFC
Certificate type

Slatted modular ceilings available in solid wood and aluminium TIMBER EFFECT, available for both internal and external applications and with a vast range of customizable options.

Jump to:

+44 (0)118 934 4155 Website

Application

For internal or external suspended ceiling applications depending on the model specified.

Description

BCL range of solid wood or aluminium 'TIMBER EFFECT,' modular ceiling panels.

Features and benefits:

Non-combustible A1/ A2 rated fire classifications achievable with aluminium TIMBER EFFECT ceilings and Euroclass B reaction to fire achievable with wood.
Solid wood options are FSC® and PEFC certified with full BREEAM Mat03 credits.
75% recycled content aluminium available.
Bespoke fire retardant colour coating/ matching.
High acoustic performance acoustic.
SIDOS Compliant ‘Bomb-blast’ grids / tethering available.
Full systems fire testing to EN 13501-1.
Direct installation service by BCL.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Red Silver White Yellow Other Show more
Finish	Anti-graffiti Anti-microbial Brushed Burnt Coated Flamed Gloss Grooved Lacquered Laminated Matt Micro-textured Natural Painted Powder-coated Pre-treated Sanded Satin Sawn Semi-gloss Stained Unfinished Veneered Weathered Wood grain Woodgrain Show more
Material	Aluminium Bamboo Birch plywood Fabric Glass mineral wool Hemp High pressure laminate (HPL) Plywood Polyester fibre (PET) Polyurethane (PUR) Water-based Wood Timber Show more
Shape	Oval Rectangle Rhombus Square Other
Length	Bespoke
Width	Bespoke
Height	19 mm 20 mm 44 mm 50 mm 69 mm 75 mm 94 mm 100 mm 119 mm 144 mm 150 mm 200 mm 250 mm 300 mm Bespoke Show more
Warranty description	20 year Guidance for specification option: Aluminium TIMBER EFFECT, Internal applications only. 30 year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Classification data
System performance	- Manufacturer guidance A1 or A2 Reaction to Fire Classifications (EN 13501-1) available, please contact BCL to discuss further. Up to Class A acoustic performance (BS EN ISO 11654:1997), please state required performances or contact BCL direct to discuss further.
System manufacturer	BCL Timber Projects Ltd.
Ceiling support	CD-1 concealed demountable. Guidance for specification option: Panels 'lay-in' to a fully concealed T-bar sub-grid and can be easily lifted, tilted and demounted from grid (with or without safety tethers). CD-2 concealed demountable baffle. Guidance for specification option: Baffle style panels 'lay-in' to a fully concealed T-bar sub-grid and can be easily lifted, tilted and demounted from grid (with or without safety tethers). CS-1 concealed semi-fixed. Guidance for specification option: Panels 'screw-up' to the underside of fully concealed T-bar sub-grid, can be mechanically unscrewed to demount if required. CF-1 concealed fixed (curved areas). Guidance for specification option: Panels 'hang' to a fully concealed tubular sub-grid using suspension hooks. ED-1 exposed TEGULAR demountable. Guidance for specification option: 600 x 600 mm square panels 'lay-in' to exposed T-bar sub-grid and can be easily demounted.
Ceiling units	20 mm wide x 100 mm deep slats + 80 mm gap. 20 mm wide x 150 mm deep slats + 130 mm gap. 50 mm wide x 20 mm deep slats + 10 mm gap. 50 mm wide x 20 mm deep slats + 20 mm gap. 50 mm wide x 50 mm deep slats + 20 mm gap. 50 mm wide x 50 mm deep slats + 50 mm gap. 50 mm wide x 75 mm deep slats + 75 mm gap. 50 mm wide x 150 mm deep slats + 100 mm gap. 50 mm wide x 200 mm deep slats + 150 mm gap. 50 mm wide x 250 mm deep slats + 200 mm gap. 50 mm wide x 300 mm deep slats + 250 mm gap. 75 mm wide x 20 mm deep slats + 20 mm gap. 75 mm wide x 20 mm deep slats + 10 mm gap. 75 mm wide x 50 mm deep slats + 50 mm gap. 100 mm wide x 20 mm deep slats + 10 mm gap. 100 mm wide x 20 mm deep slats + 30 mm gap. 100 mm wide x 20 mm deep slats - closed 'shiplap' cladding. 150 mm wide x 20 mm deep slats - closed 'shiplap' cladding. 200 mm wide x 20 mm deep slats - closed 'shiplap' cladding. 200 mm wide x 20 mm deep slats + 20 mm gap.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	- Manufacturer guidance Insert requirements or omit.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
Samples required	- Manufacturer guidance Insert requirements or omit.
Colour	Chestnut. Cinnamon. Dark oak. Finest black. Golden oak. Knotty pine. Mahogany. Natural maple. Oregon. Natural oregon. Natural oak. Raw teak. Rosewood. Teak. Wengen (walnut). Mandal maple. Winchester oak. Work ash. Burnt oak. Barn Oak (Pizza Hut). Truffle oak. Mid oak. Teak softwood.
Fabric colour	Black. Grey. White. RAL, colour. Guidance for specification option: Insert requirements. Manufacturer guidance Fibreglass acoustic fabric.
Acoustic insulation	25 mm, 45 kg/m³ insulation pad. 50 mm, 45 kg/m³ insulation pad. 25 mm, 80 kg/m³ insulation pad. 50 mm, 80 kg/m³ insulation pad.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Bamboo Birch plywood Fabric Glass mineral wool Hemp High pressure laminate (HPL) Plywood Polyester fibre (PET) Polyurethane (PUR) Water-based Wood Timber
Recyclability	Fully recyclable apart from the polyester powder coating.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	75 %
