Surge Protection Devices (SPD) - Surge suppressor
Verified by manufacturer 2 months ago

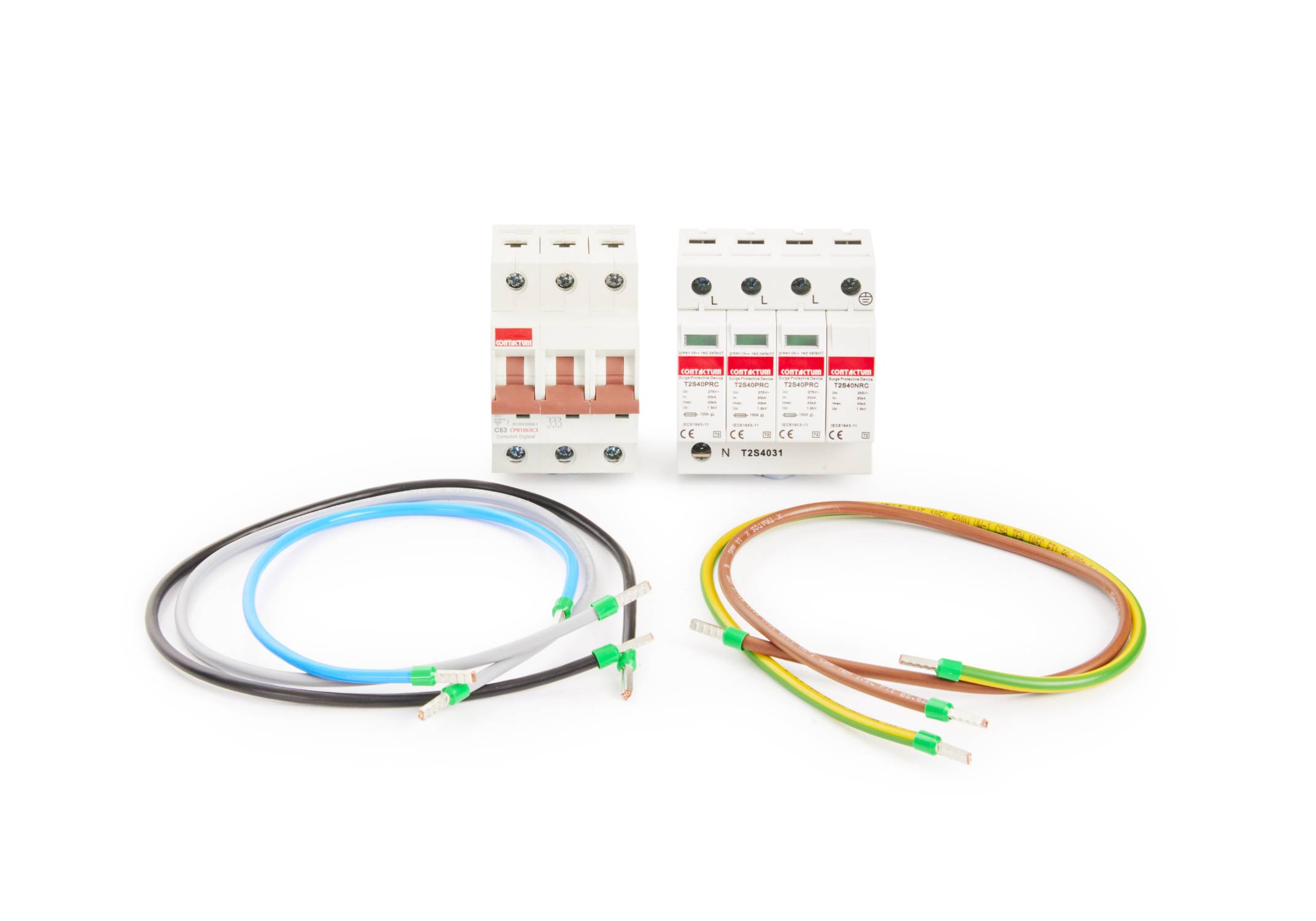

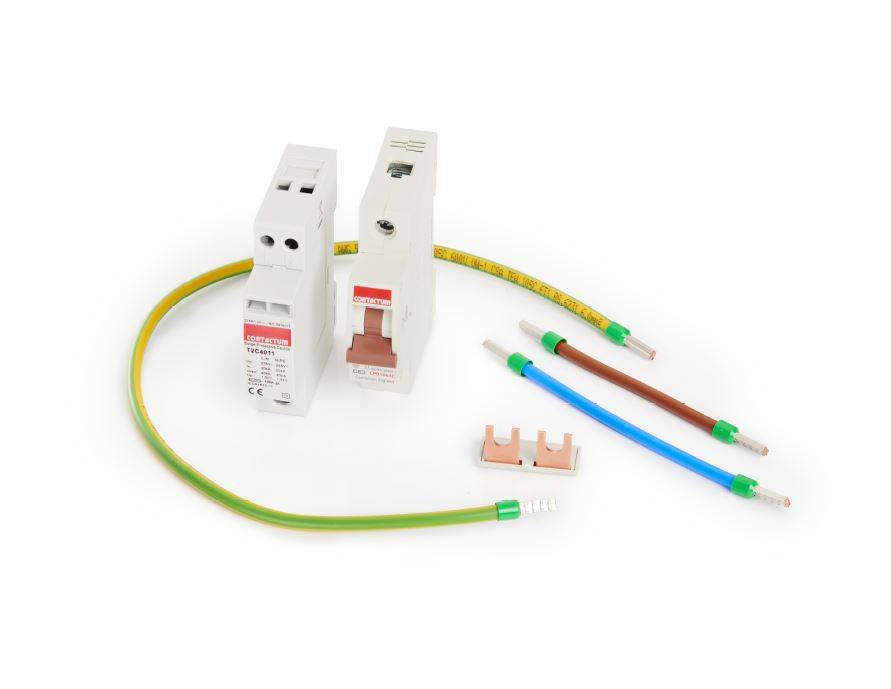

T2C4011KIT - Surge 40KA 1+1 Protection Retro Fit Kit
T2C4011KIT - Surge 40KA 1+1 Protection Retro Fit Kit
Tecnalia
Certificate type
ISO 9001 Quality Management
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
Single & Three Phase Surge Protection Devices
Application
Contactum Surge Protection devices are designed for use in industrial, residential and commercial electrical installations.
Description
Contactum Surge Protection devices are designed for use in residential and commercial electrical installations to protect electrical systems, equipment, and appliances from power surges and voltage spikes.
- Type 2 40kA devices
- Available for Single Phase & Three Phase
- Available prepopulated, and as a retro fit kit
General information
Color | Grey |
Finish | Matt |
Material | Plastic |
Shape | Rectangle |
Length | 115 mm 30 mm |
Width | 155 mm 200 mm |
Height | 95 mm 85 mm |
Warranty description | Two year |
Uniclass |
Specification data - Low-voltage power supply surge protection devices
Standard | To IEC 61643-11. |
Operating voltage and frequency (nominal) | 220-250 V. |
Maximum continuous operating voltage (Uc) | 275 V. |
Nominal discharge current (In) | 10 kA per mode. |
Maximum discharge current 8/20 µs (Imax) | 20 kA |
Voltage protection level (Up) | ≤1.2 kV. |
Protection status indicators | Green (ok), Red (replace) status indicator. |
Mounting method | DIN rail. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | China |
Recyclability | Product Packaging - PAP 21 |
