Surestep Laguna - Safety vinyl flooring
Verified by manufacturer 8 days ago
EPD
Certificate type
Certificate of Conformity
Certificate type
A heterogeneous safety vinyl flooring with a PUR pearl surface finish, combining barefoot and footwear slip resistance.
Application
Laguna is designed for areas where both shod (footwear) and barefoot slip resistance are required, such as changing rooms and circulation areas. Non-reflective decoration also makes it ideal for use in dementia applications.
Description
Combining barefoot and footwear slip resistance, Surestep Laguna is suitable for use in transition areas such as changing rooms and circulation areas. 14 colours in the collection.
Features and benefits:
- Safety vinyl collection with a fine, structured surface available in neutral and pastel colours with slip resistant particles.
- Subtle, soil-hiding design.
- Enhanced environmental performance.
- Meets the highest possible REACH compliance standards for chemical content.
- Micro-embossing technology reduces the need for chemical cleaning and increases the floor's lifespan.
- Phthalate-free.
- Can be used in conjunction with Onyx+and wet room accessories to create a complete floor-to-wall wet room solution.
Optional fabricated underlay:
- Forbo Corkment Underlay.
- Forbo QuickFit Subfloor System.
- Forbo Sarlibase T.E. Underlay.
- Forbo Vinylbase acoustic underlay.
Adhesive:
- Eurocol 140 Euromix PU Pro:
Polyurethane resin and hardener, water-resistant, two-component PU adhesive.
- Eurocol 233 Eurosol Contact: Eurocol 233 Eurosol Contact:
Synthetic rubber in solvent, fast-setting contact adhesive.
- Eurocol 640 Eurostar Special:
Superior acrylic dispersion, low VOC-emitting adhesive with a high initial grab.
General information
Color | Blue Green Grey Pink Yellow |
Finish | Other Guidance for specification option: PUR pearl surface finish. |
Material | PVC Guidance for specification option: Heterogeneous . |
Shape | Rectangle |
Length | 24000 mm 25000 mm 26000 mm |
Width | 2000 mm |
Height | 2 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/150 Sheeting M50/20 Sheeting |
Specification data - Particle-based enhanced wet area polyvinyl chloride (PVC) sheets
Standard | Heterogeneous PVC to BS EN ISO 10582 and BS EN 13845 & 14041. |
Use class | Class 34 Commercial very heavy, Class 43 light industrial. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | DIN 51130, R10; BS EN 13893, DS ≥0.30.; PTV Wet slider 96: ≥36. |
Surface roughness (Rz) (minimum) | ≥20. |
Recycled content | 20%. |
Width | 2000 mm. |
Thickness | Total: 2.0 mm; Wear layer: 0.7 mm. |
Colour and pattern | 181092 elephant.181482 greige.181592 lava.181922 concrete.181362 umber.181582 pale blue.181662 reef green.181472 white moss.181742 sage.181142 sand.178872 earth.178082 snow.181312 mortar.178032 smoke. |
Weight (to EN-ISO 23997) | 2.75 kg/m². |
Dimension stability (to EN-ISO 23999) | <0.1%. |
Castor chair continuous use (to EN 425) | No effect. |
Use in wet areas (to EN 13553) | Yes. |
Electrical resistance (to EN 1081 R1) | >1 x 10^9 Ω. |
Reaction to fire (to BS EN 13501) | Bfl-s1. |
Body voltage (to BS EN 1815) | <2 kV. |
Thermal conductivity (to BS EN 12524) | 0.25 W/m·K. |
Residual indentation (to EN-ISO 24343-1) | ≤0.05 mm. |
(to DIN 51097) | Class B. |
Adhesive | Not required. Eurocol 140 Euromix PU Pro. Eurocol 233 Eurosol Contact. Eurocol 640 Eurostar Special. |
Fabricated underlay | Not required. Forbo Corkment underlay. Forbo Quickfit subfloor system. Forbo Vinylbase acoustic underlay. Forbo Sarlibase T.E. underlay. |
(to EN 13845 Annex C) | ESb/ESf (to EN 13845 Annex D 50,000 revolutions <10% loss. Pass. |
Lightfastness (to ISO 105-B02) | ≥6. |
Finishes | PUR pearl surface finish. |
Flexibility (to BS EN ISO 24344) | ø 10 mm. |
Resistance to chemicals (to EN ISO 26987) | Very good. |
Edging | Not required. As per 740. |
Skirtings | Not required. As per 770. |
Stair nosings | Not required. As per 750. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | PVC Guidance for specification option: Heterogeneous . |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.83 kg CO₂ eq/m² |
Recyclability | 100% Manufacturer guidancePost production material |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 24 % Manufacturer guidancePercentage has increased from 20 to 24% since current EPD was issued. Awaiting new EPD to be published. |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD
Step Environmental Product Declaration
Certificate of Conformity
SA8000 Management System Certification Certificate
Literature
Forbo Product Portfolio 2022

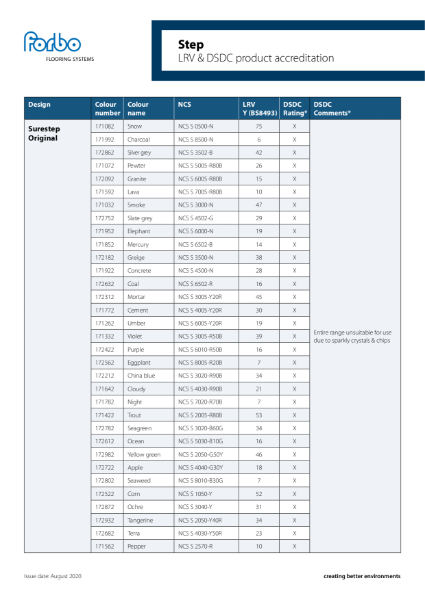

Forbo Step LRV and DSDC Accreditation Overview
