Application

It can be used in both residential and commercial applications; providing a source of natural light and comfort ventilation.

Description

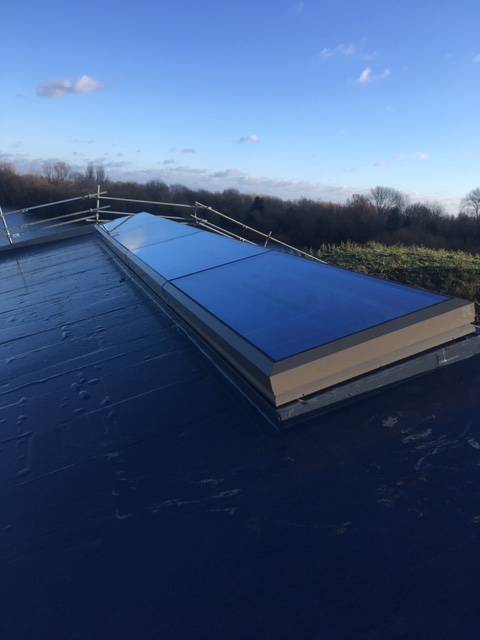

A system of assembled glass rooflight units that link together to form rooflights of unlimited length. Modules are constructed from double glazed units in a powder coated, fully thermally broken aluminium frame. The double glazed glass panels are made up of 6 mm toughened outer, 90% argon filled cavity with a 9.5 mm laminated inner (including 1.5 mm PVB interlayer) cavity. It is manufactured using systems fully accredited to ISO 9001 and ISO 14001 and CWCT TN-92 non-fragility for class-2 roofs tested and ACR[M]001 class B non-fragility accreditation.

Features and benefits:

  • Factory assembled modules link together for a swift installation of unlimited length.

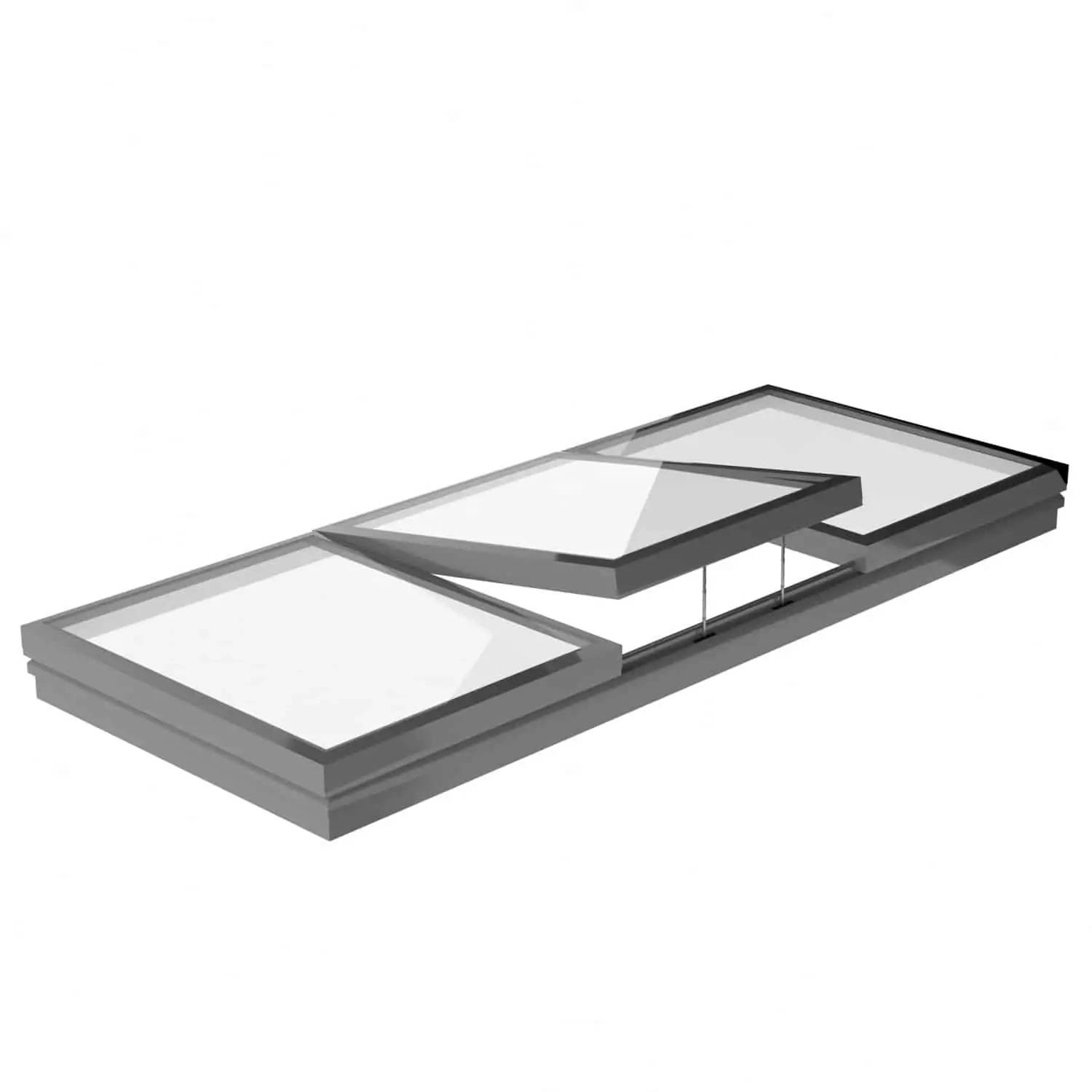

  • Components of powered opening rooflights are concealed for an unobstructed light well.
  • Dual colour powder coated as standard, fully thermally broken aluminium framework.
  • Option to powder coat in any single RAL colour.
  • Spans of up to 3800 mm are possible with individual modules of up to 3800 x 1750 mm allowing for large uninterrupted daylight areas.
  • Suitable for installation at pitches of 2-35° across span and 15° along length (some larger sizes will require a minimum installation pitch of up to 5°.)
  • U-value of 1.31 W/m²K (3800 x 1650 mm fixed module) to 1.65 W/m²K (1000 x 1000 mm opening module).
  • Fixed Surelink rooflights achieve Secured by Design accreditation.
  • Remote control and rain sensor options for powered opening rooflights.
  • Manual opening option operated by worm gear, using a pole.
  • Special glass specifications including solar control and self-cleaning.
  • Opening controllers and accessories for controlling multiple powered opening rooflights.

Application:

It can be used in both residential and commercial applications; providing a source of natural light and comfort ventilation.

General information

Size

Unlimited length, maximum span of 3800 mm.

Features

Premium quality, rooflights lap together to form rooflights of unlimited length. CWCT TN-92 non-fragility for class-2 roofs and ACR[M]001 class B non-fragility

Finish

Powder coated to RAL

Material

Structurally glazed double glazed units in a powder coated, fully thermally broken aluminium frame

WarrantyDescription

10 year guarantee

Uniclass 2015

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Product Reference

Surelink Modular Glass Rooflight

Form

Fixed

As standard.

Ventilated

Individual modules can be ventilated. Mechanism is concealed within the frame.

Product performance

-

Fire performance

Building Regulations Approved Document B, BS476 Class 1

Whole window U-value

1.1 W/m²K

Frame

-

FrameMaterial

Aluminium

Coating

Powder coated to RAL

Colour

RAL 7016 externally and RAL 9010 internally

As standard.

Other colours are available on request

Insert requirement.

Glazing or infill

-

Type

Double glazed glass pane

Construction

6 mm toughened outer, 90% argon filled cavity with a 9.5 mm laminated inner cavity (including 1.5 mm PVB interlayer)

Integral kerb

Included

Operation

-

Control

Manual

Worm drive.

Electronic

Powered actuators to create a large ventilation area.

Accessories

None

Remote control

Rain sensor

Solar control and self-cleaning glass

Size

Unlimited length, maximum span of 3800 mm.

Standard product features

Colour:

Available with a RAL 7016 colour externally and RAL 9010 internally as standard or other colours are available on request.

Features:

Premium quality, rooflights lap together to form rooflights of unlimited length. CWCT TN-92 non-fragility for class-2 roofs and ACR[M]001 class B non-fragility.

Finish:

Powder coated to RAL.

Material:

Structurally glazed double glazed units in a powder coated, fully thermally broken aluminium frame.

Size:

Spans of up to 3800 mm are possible with individual modules of up to 3800 x 1750 mm.

Warranty description:

10 year guarantee.
