SupportRail™ Support System

Application

For use on balconies, walkways, roof terraces, leisure areas and patios. Compatible with all decking systems from MyDek for fast and accurate installation.

Description

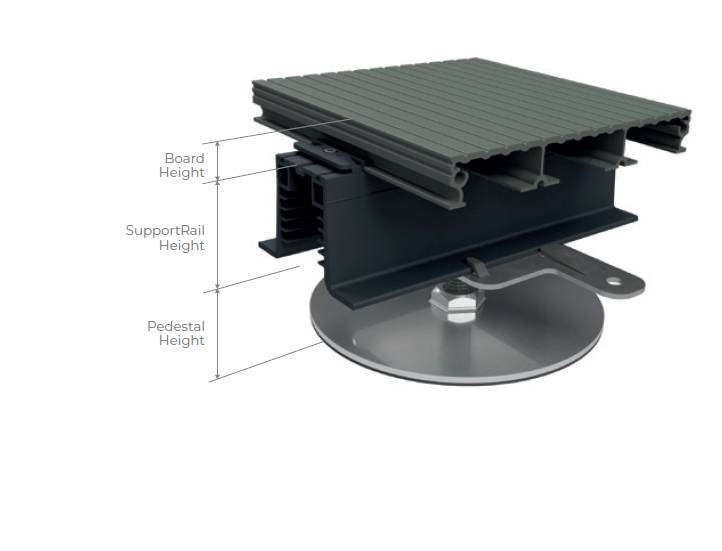

Virtually tool-free installation means that fitting the MyDek® System onto your terrace or inset balcony is rapid and accurate, and with the super-low SupportRail™ profile you can achieve finished floor levels from 60—300 mm above the structural level. The MyDek® SupportRail™ system has been specifically designed to meet the latest regulations.


Features and benefits:

  • Fully certified.
  • Non-combustible.
  • Lightweight.
  • 60 year design life.
  • Quick installation.

General information

Shape

Rectangle

Color

Black

Finish

Mill

Material

Aluminium

Support Rail: Aluminium grade 6063-T6.

Steel

Pedestal: Stainless steel 304 grade.

WarrantyDescription

30 year

Size

40 x 50 mm

Uniclass

Pr_20_76_51_07 Aluminium structural sectionsPrimary

CAWS

Q37/460 Support pedestals

Q55/395 Support pedestals

K46/320 Pedestals

K41/320 Pedestals

Q55/110 Deck

Specification data - Aluminium structural sections Enhanced data

Structural sections

-

Size

40 x 50 mm.

Finish

-

Worked

Powder coated in black.

Applied

Mill finish.

Colour

Black.

FireRating

To EN 13501–1, A2-s1,d0.

Support rails

SR16.

Aluminium 6063 grade T6.

Min 60 micron.

Height

Support rail height.

50 mm.

Expansion capacity

1 mm per linear metre.

Coefficient of thermal expansion

0.024 mm/m/°C.

Installation

Rail clips to adjustable pedestal.

Rubber protection mats should be inserted to protect waterproofing membranes if necessary.

Accessories

Consult manufacturer for details.

Environmental information

Recyclability

100%

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
