SuperLag Technowrap 2

Name: SuperLag Technowrap 2
Brand: otwGsFkxqRKq5R3deWTN8P
SKU: 3TzdmtDd3qiY7Rg4dXd51p

CMS Danskin Acoustics

Acoustic lagging with mineral fibre lamella mat.

Jump to:

+44 (0)1925 577711 www.cmsdanskin.co.uk

Description

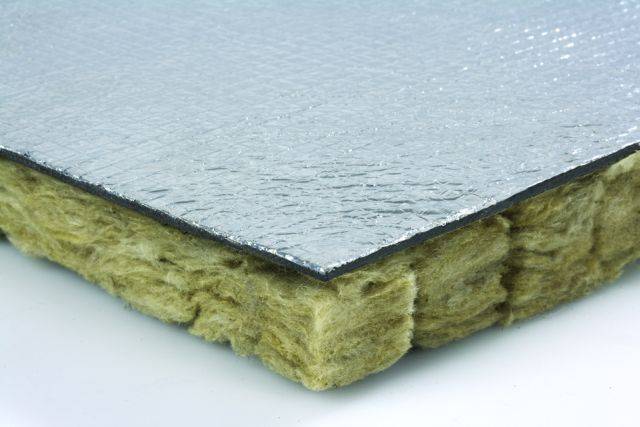

High performance acoustic lagging comprising a heavy polymeric mass barrier bonded to an isolating layer of mineral fibre lamella, with reinforced aluminium foil to each face. The mineral fibre lamella resist compression on curves, maintaining a consistent thickness and ensuring optimum performance.

Specification data

Product Reference	SuperLag Technowrap 2
Grade	5 5 kg/m² mass barrier. 10 10 kg/m² mass barrier.
Isolation layer thickness	25 mm 50 mm
Sheet size	1000 x 1000 mm 2000 x 1000 mm ___ x ___ mm Other sizes available on request.

Standard product features

Composition:
SuperLag Technowrap 2 is composed of four layers:
Inner face: Class 0, reinforced aluminium foil.
Isolation layer: Mineral fibre lamella mat.
Barrier mass layer: Polymeric acoustic barrier.
Outer face: Class 0, reinforced aluminium foil.
Performance:
Service temperature: -30–230ºC.
Chemical resistance: Oils, water, most solvents.
Fire resistance: Class 0.
Thermal conductivity (at 10ºC): 0.039 W/mK.
