SuperLag AcoustiShield

Description

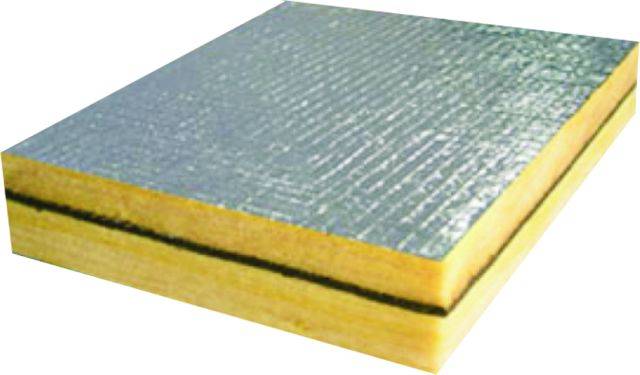

Laminated acoustic lagging that consists of two 25 mm layers of glass fibre insulation around a heavy mass barrier core of lead or polymeric material: one face has a woven glass tissue covering, the other a fire resistant foil facing.

SuperLag AcoustiShield is typically used for air conditioning ductwork, and pipework requiring acoustic treatment.

SuperLag AcoustiShield can be fitted on circular ducts using foil faced adhesive tape and, on larger ducts, proprietary banding systems. On large sections, SuperLag AcoustiShield may require mechanical support such as banding, or pins and self- locking washers.

General information

CAWS

U90/490 Site-applied insulation to ductwork

U90/490 Site-applied insulation to ductwork

Product range

Acoustic insulation

Specification data

Product Reference

SuperLag AcoustiShield

Type

L5

5 kg/m² lead mass barrier.

L10

10 kg/m² lead mass barrier.

P5

5 kg/m² polymeric mass barrier.

P10

10 kg/m² polymeric mass barrier.

Standard product features

Dimensions (l x w x t):

2000 x 1200 x 50 mm.

Density of glass fibre:

23–25 kg/m³.

Performance:

  • Operating temperature: -30–150ºC.
  • Water resistance: Non-hygroscopic.
  • Thermal conductivity: 0.036 W/mK.
  • Fire resistance: Class 0.
