Superglass Superwall 36 Cavity Wall Batt - Cavity Wall Insulation

Verified by manufacturer 1 month ago

Superwall 36 Cavity Batt - 50 mm

Superglass Insulation Ltd Variant:
Product certifications:
  • EPD

    EPD

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • CE Marking

    Certificate type

  • DoP

    DoP

    Certificate type

  • CCPI Product

    CCPI Product

    Certificate type

Superglass Superwall 36 is a British Board of Agrément (BBA) approved, non-combustible glass mineral wool insulation cavity wall batt.

Jump to:
+44 (0)808 1645 134 Website

Application

Superglass Superwall 36 is designed to provide thermal insulation in full or partial fill in new external masonry cavity walls, up to 25 metres in height for full fill and without restriction for partial fill in buildings of a domestic and non-domestic nature. Additional requirements apply for buildings above 12 metres in height for full fill and above 25 metres in height for partial fill, please refer to the product BBA certificate for more information.


Superwall 36 is BBA approved for use in all UK exposure zones (subject to conditions detailed in the BBA Certificate)

Description

Superglass Superwall 36 is a British Board of Agrément (BBA) approved, non-combustible glass mineral wool insulation cavity wall batt, manufactured with a water-repellent additive to resist moisture ingress. The flexible batt is supplied at 455mm wide to allow friction fitting between standard vertical wall tie spacings, reducing

the need for on-site cutting and waste.

Thermal Conductivity:

Declared thermal conductivity (lambda (λ) value) of 0.036W/mK.

Fire Classification:

Deemed non-combustible with a fire classification of Euroclass A1 (the highest possible rating) when tested to BS EN 13501-1:2018 Reaction to Fire.

CCPI (Code for Construction Products Information)

Holds CCPI Assessment Mark. Certificate number: 005800103/1026.

Vapour Resistivity

The product has a nominal vapour resistivity of 5 MN·s/g·m.

Environmental credentials.

  • Manufactured in accordance with ISO 14001:2015 - Environmental Management Systems (EMS). Certificate number: EMS 646508.
  • Contains no ozone-depleting substances or greenhouse gases. For more information, please refer to the Environmental Product Declaration (EPD).
  • Made from up to 84% recycled glass.
  • Generic BRE Green Guide Rating of A+.
  • Our products and their pallets are wrapped in low-density polyethylene (LDPE4) plastic, which contains a minimum 30% recycled material and is fully recyclable. Before recycling, please consult your local authority for guidance.

Standards and approvals:

  • BS EN 13162:2012+A1:2015 thermal insulation products for buildings - factory made mineral wool (MW) products.
  • BS EN 13172: 2012 thermal insulation products – evaluation of conformity.
  • ISO 9001:2015 - Quality Management Systems (QMS). Certificate number: FM 02264.

Certification:

  • UKCA certified to BS EN 13162:2012+A1:2015. Certificate number: 0086 CPR 469699.
  • CE marked to BS EN 13162:2012+A1:2015. Certificate number: 0751-CPR-399.0-01.
  • BBA certified for full and partial fill applications. Certificate number: 89/2231.

Below DPC level.

The product may be used in situations where it bridges the DPC in

walls; dampness from the ground will not pass through to the inner leaf provided the wall is detailed in accordance with the requirements and provisions of the national Building Regulations.

Water Resistance

Constructions incorporating the product and built in accordance with the Standards listed in section 4.4 of BBA Certificate 89/2231 Product Sheet 2, will resist the transfer of precipitation to the inner leaf and satisfy the national Building Regulations.

EUCEB (European Certification Board of Mineral Wool Products)

All Superglass glass mineral wool products are made of non-classified fibres and are certified by EUCEB. EUCEB is a voluntary initiative by the mineral wool industry. It is an independent certification authority that guarantees that products are made of fibres which comply with the exoneration criteria for carcinogenicity (Note Q) of the Regulation (EC) 1272/2008. Certificate number: BEUC-511-27949-491-14462.

General information

Color

Yellow

Material

Glass mineral wool

Glass Fibre

Shape

Rectangle

Length

1200 mm

Width

455 mm

Height

GTIN/EAN

5029768052675

BIM objects

Platform Compatible Version
Revit
-

1

Product certifications

EPD

EPD

Environmental Product Declaration (EPD) – Cured Glass Mineral Wool Insulation

BBA Agrément Certificate

BBA Agrément Certificate

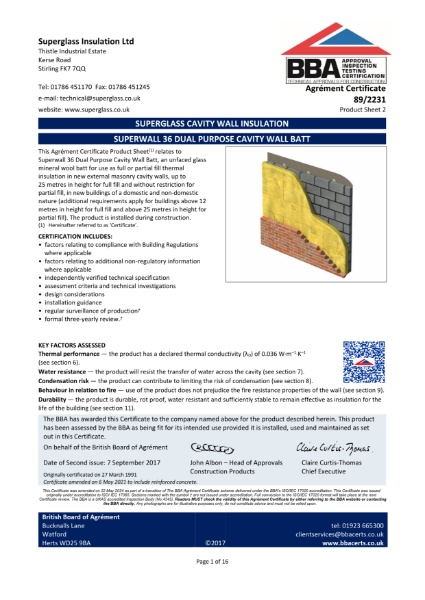

SUPERWALL 36 DUAL PURPOSE CAVITY WALL BATT CERTIFICATE 89/2231

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA Certificate - Cured Glass Mineral Wool Insulation

CE Marking

CE Marking

CE Certificate - Cured Glass Mineral Wool Insulation

DoP

DoP

Declaration of Performance (DoP) - Superwall 36 Cavity Batt - UKCA

CCPI Product

CCPI Product

CCPI Schedule of Assessed Products - Superwall Cavity Batts

Literature

Superglass Superwall 36 Cavity Batt - Datasheet

Superglass Superwall 36 Cavity Batt - Datasheet

A Guide to Product Substitution - External Masonry Cavity Wall Insulation

A Guide to Product Substitution - External Masonry Cavity Wall Insulation

Superglass Superwall Cavity Batts Installation Guide - Full & Partial Fill

Superglass Superwall Cavity Batts Installation Guide - Full & Partial Fill

Superglass Superwall Cavity Batt U-value Guide

Superglass Superwall Cavity Batt U-value Guide

Superglass Psi-value Guide

Superglass Psi-value Guide
