Superglass Multi-Roll 44 - Loft insulation

Verified by manufacturer 14 days ago

100 mm-thick

Superglass Insulation Ltd Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • CE Marking

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • DoP

    DoP

    Certificate type

Superglass Multi-Roll 44 is a lightweight, non-combustible glass mineral wool insulation roll for use in lofts/cold roofs.

Jump to:
+44 (0)808 1645 134 Website

Application

Superglass Multi-Roll 44 is primarily used as thermal insulation between and over the timber joists of new and existing lofts/cold pitched roofs. However, it can be used in several other applications including suspended timber grounds floors.

Description

Superglass Multi-Roll 44 is a non-combustible, glass mineral wool insulation roll. The roll is supplied partially perforated providing the flexibility to be used between common joists spacings and as uncut as a full width roll as layers over the joists, reducing the need for on-site cutting and waste.


Thermal Conductivity:

Declared thermal conductivity (lambda (λ) value) of 0.044W/mK.


Fire Classification:

Deemed non-combustible with a fire classification of Euroclass A1 (the highest possible rating) when tested to BS EN 13501-1 Reaction to Fire.


Vapour Resistivity

The product has a nominal vapour resistivity of 5 MN·s/g·m.


Environmental credentials.

  • Manufactured in accordance with ISO 14001 - Environmental Management Systems (EMS). Certificate number: EMS 646508.
  • Contains no ozone-depleting substances or greenhouse gases. For more information, please refer to the Environmental Product Declaration (EPD).
  • Made from up to 84% recycled glass.
  • Generic BRE Green Guide Rating of A+.


Standards and Approvals.

  • BS EN 13162:2012(+A1:2015) Thermal insulation products for buildings - Factory made mineral wool (MW) products.
  • BS EN 13172: 2012 Thermal insulation products – Evaluation of conformity.
  • BS EN ISO 9001 - Quality Management Systems (QMS). Certificate number: FM 02264.


Certification:

  • UKCA certified to BS EN 13162:2012+A1:2015. Certificate number: 0086 CPR 469699.
  • CE marked to BS EN 13162:2012+A1:2015. Certificate number: 0751-CPR-399.0-01.


General information

Color

Yellow

Material

Glass mineral wool

Mineral wool

Mineral fibre

Length

100 mm

150 mm

170 mm

200 mm

Width

386 mm

400 mm

580 mm

600 mm

Height

4850 mm

5800 mm

6650 mm

10100 mm

Uniclass

Pr_25_57_06_53 Mineral wool insulationPrimary

CAWS

B15/110 Timber-framed

B15/120 Timber-framed

K11/115 Battened plywood floating floor

K11/125 Battened particleboard floating floor

K11/135 Battened oriented strand board floating floor

K11/145 Battened cement-bonded particleboard floating floor

K11/20 Battened particleboard floating floor

K11/215 Plywood floating floor

K11/225 Particleboard floating floor

K11/235 Oriented strand board floating floor

K11/245 Cement bonded particleboard floating floor

K11/25 Particleboard floating floor

K11/275 Acoustic separating floor system

K13/160 Proprietary

K20/150 Battened timber board floating floor

K20/20 Battened timber board floating floor

P10/125 Insulation laid between ceiling ties/ joists

P10/240 Insulation fitted between floor joists

P10/45 Insulation laid between floor joists

P10/50 Insulation supported between joists

Product range

Timber Floor Insulation
Glass Mineral Wool Insulation
Loft Insulation

Specification data - Mineral wool insulation

Standard

To BS EN 13162.

Guidance for specification option:

Manufactured in accordance with:

  • BS EN 13162:2012 (+A1:2015) Thermal insulation products for buildings – Factory made mineral wool (MW) products.
  • BS EN 13172:2012 Thermal insulation products – Evaluation of conformity.
  • BS EN ISO 9001:2015 – Quality Management Systems (QMS).

Form

Glass mineral wool roll.

Thickness (minimum)

100 mm.

Guidance for specification option:

Length: 10 100 mm.

R-value: 2.25 m²K/W.

Width (nominal)

400 mm.

Guidance for specification option:

Supplied in roll widths of 1200 mm, perforated to allow division into three rolls of 400 mm width or two rolls of 600 mm width.

600 mm.

Guidance for specification option:

Supplied in roll widths of 1200 mm, perforated to allow division into three rolls of 400 mm width or two rolls of 600 mm width.

Thermal conductivity (maximum)

0.044 W/m·K.

Fire performance

Reaction to fire classification of A1, as defined in BS EN 13501-1.

Guidance for specification option:

All Superglass products are deemed non-combustible and have a fire classification of A1 when tested to BS EN 13501-1 reaction to fire.

Recycled content

Up to 84%.

Guidance for specification option:

Manufactured from up to 84% recycled glass, which would otherwise go to landfill.

Product Reference

Multi-Roll 44

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass mineral wool

Mineral wool

Mineral fibre

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.35 kg CO₂ eq/kg

Manufacturer guidance

Please see product EPD.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

84 %

Guidance for specification option:

Manufactured from up to 84% recycled glass, which would otherwise go to landfill.

Expected Life

Lifetime

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Environmental Management System ISO 14001: 2015

EPD

EPD

Environmental Product Declaration (EPD) – Cured Glass Mineral Wool Insulation

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management System ISO 9001:2015

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA Certificate - Cured Glass Mineral Wool Insulation

CE Marking

CE Marking

CE Certificate - Cured Glass Mineral Wool Insulation

Made in Britain

Made in Britain

Made in Britain

BS EN 13501-1

BS EN 13501-1

Euroclass A1 Reaction to Fire Classification

DoP

DoP

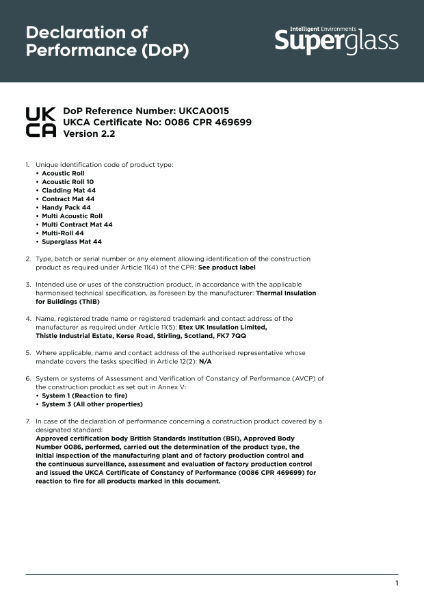

Declaration of Performance (DoP) - Multi-Roll 44 - UKCA

Literature

Superglass Multi-Roll 44 Loft Insulation - Datasheet

Superglass Multi-Roll 44 Loft Insulation - Datasheet

Insulation Solutions Guide

Insulation Solutions Guide

Superglass Loft Insulation - Best Practice Guide

Superglass Loft Insulation - Best Practice Guide
