Sun Louvres - Open Façade Systems - Aluminium sun Louvre system
Verified by manufacturer 3 months ago
132S
132S

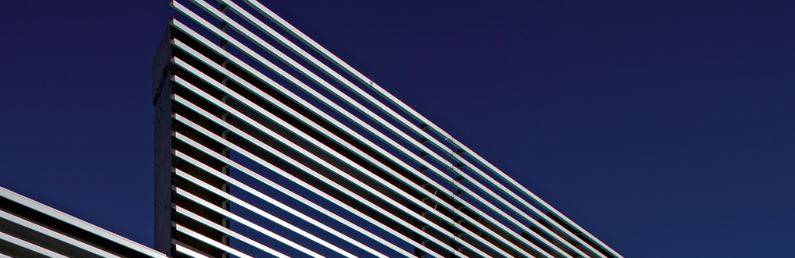

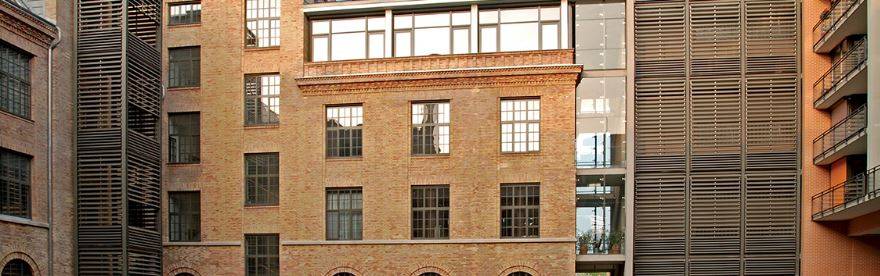

Open facade sun louvres
Application
Shading or open facades for larger building projects such as:
- Offices.
- Public utility.
- Public spaces.
Description
Louvre panels provide shading from all sun angles, reducing glare and heat gain around the building. They can be used as open facades or in front of windows.
Features and benefits:
- Panels in roll-formed or extruded aluminium offer excellent weather resistance.
- Matching support structures in aluminium make a complete and highly durable system.
- Variable modules for optimum shading efficiency.
- Continuous linear appearance of panels.
- Virtually maintenance-free.
General information
Color | Silver Guidance for specification option: 40 + colours available upon request, contact manufacturer for details. White Other |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Other |
Length | Bespoke Guidance for specification option: Maximum. |
Width | 132 mm 84 mm 70 mm |
Height | 0.6 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L10/55 Brises-soleil L10/670 Brises-soleil H11/140 Louvres H11/130 Sun screens L10/54 Louvres |
Specification data - Composite brise-soleil units
Support arms | |
Material | Manufacturer's standard.Manufacturer guidance
|
Finish | As louvre blades. |
Colour | As louvre blades. |
Array louvre blades | |
Material | Aluminium alloy EN-AW 3005. |
Finish | Front side: Luxacote® finish, three-layer, 40 µm; back side: Polyester coating. |
System | Fixed system, vertical applications. |
Panel length | Manufacturer guidanceInsert requirements; up to 6000 mm per section. |
Spacers | 48 mm. 63 mm. 88 mm. |
Fixing | Clip system. |
Installation | Spacers and panel brackets are sliding into support rail which is fixed with rail clamp to substructure. |
Supports | Railclamp with washer set. |
Certification | Cradle to Cradle Certified™ Bronze, FSC Certified, suitable for BREEAM and Leed, French VOC-regulation class A+, Oeko-tex Standard 100 klasse IV, SundaHus Miljödata klasse A, GreenGuard Gold. |
Accessories | Vertical bracket (65º). Guidance for specification option: Natural anodised. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Netherlands |
Material | Aluminium |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 92 % |
