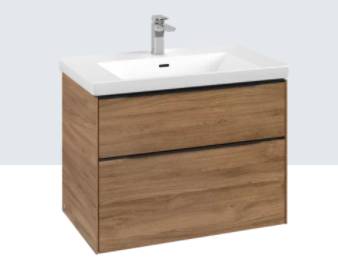

Subway 3.0 Vanity Unit C574L1

Verified by manufacturer 8 months ago

C574L1VN

Villeroy & Boch AG Variant:

Vanity unit with lighting, two pull out compartments and two small accessory dishes.

Jump to:
BOS
 +49 (0) 6864 81 1500 Website

Application

Suitable for selected vanity washbasins.

Description

Wall-mounted vanity unit with two pull out compartments that have non-slip mats, and two small accessory dishes. Designed for a fully integrated washbasin. The carcass is available in a range of colours.


Features and benefits:

  • Fastening set included.
  • Washbasin ordered separately.
  • Soft closing.
  • Smart home compatible.
  • Dimmable LED lighting.
  • Part of the Subway 3.0 range.
  • Integrated handles.
  • Storage space under basins (extra height for more storage).

General information

Color

Grey

Guidance for specification option:

Cashmere grey.

Blue

Guidance for specification option:

Marine blue.

White

Guidance for specification option:

  • Brilliant white.
  • Pure white.

Black

Guidance for specification option:

Volcano black.

Other

Guidance for specification option:

  • Graphite.
  • Taupe.
  • Arizona oak.
  • Nordic oak.
  • Oak Kansas.
  • Stone oak.

Finish

Direct coating

Material

Chipboard

Guidance for specification option:

Panels.

Aluminium

Guidance for specification option:

Handle.

Shape

Rectangle

Size

-

Manufacturer guidance

Height x width x depth.

Length

576 mm

Width

772 mm

Height

462 mm

Uniclass

Pr_40_20_76_94 Vanity unitsPrimary

CAWS

N10/145 Vanity and washroom furniture

Specification data - Vanity units

Form

Wall-mounted.

Materials

-

Carcass

-

Frame and panels

Chipboard.

Finish and colour

Cashmere grey.

Worktop

-

Material

Chipboard.

Finish and colour

Cashmere grey.

Size (nominal)

576 x 772 x 462 mm.

Manufacturer guidance

Height x width x depth.

Integral accessories

ZigBee Home Automation Kit (C585 00).

Guidance for specification option:

  • After retrofitting with the ZigBee Home Automation Kit (C585 00 for illuminated vanity units and C004 00 for illuminated mirrors) lighting can be controlled via your Smart Home environment. The products can be switched on and off via the sensor switch.
  • The products can be connected via the ZigBee Home Automation Standard with all hubs/ gateways that use this transmission standard, such as Philips Hue Bridge or suitable Amazon Echo models.


Handle finish

Aluminium, matt paint.

Guidance for specification option:

Volcano black.

IntegratedLightingType

Dimmable LED lighting.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

OBJ
 -

1

SketchUp
 -

1

ARCHICAD
 -

1

3Ds Max
 -

1

Revit
 -

1
