SubFloor Raised Floor System

Verified by manufacturer 3 months ago

Floor Levelling Systems Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Raised flooring with sound and practical solutions for ventilation, installations, acoustics and outdoor environments.

Jump to:
+44 (0)7710 406906 Website

Application

  • Used in housing, apartments, laboratories, gyms, sports halls and offices.
  • For indoor use (other joist variations offer greater environmental flexibility).
  • Can be assembled on any base.
  • Renovation with SubFloor: For levelling uneven floors, raising the floor a step height or allowing for installations under the floor.
  • In situ cast SubFloors: Simple floor levelling with off-site prefabricated bathrooms.

Description

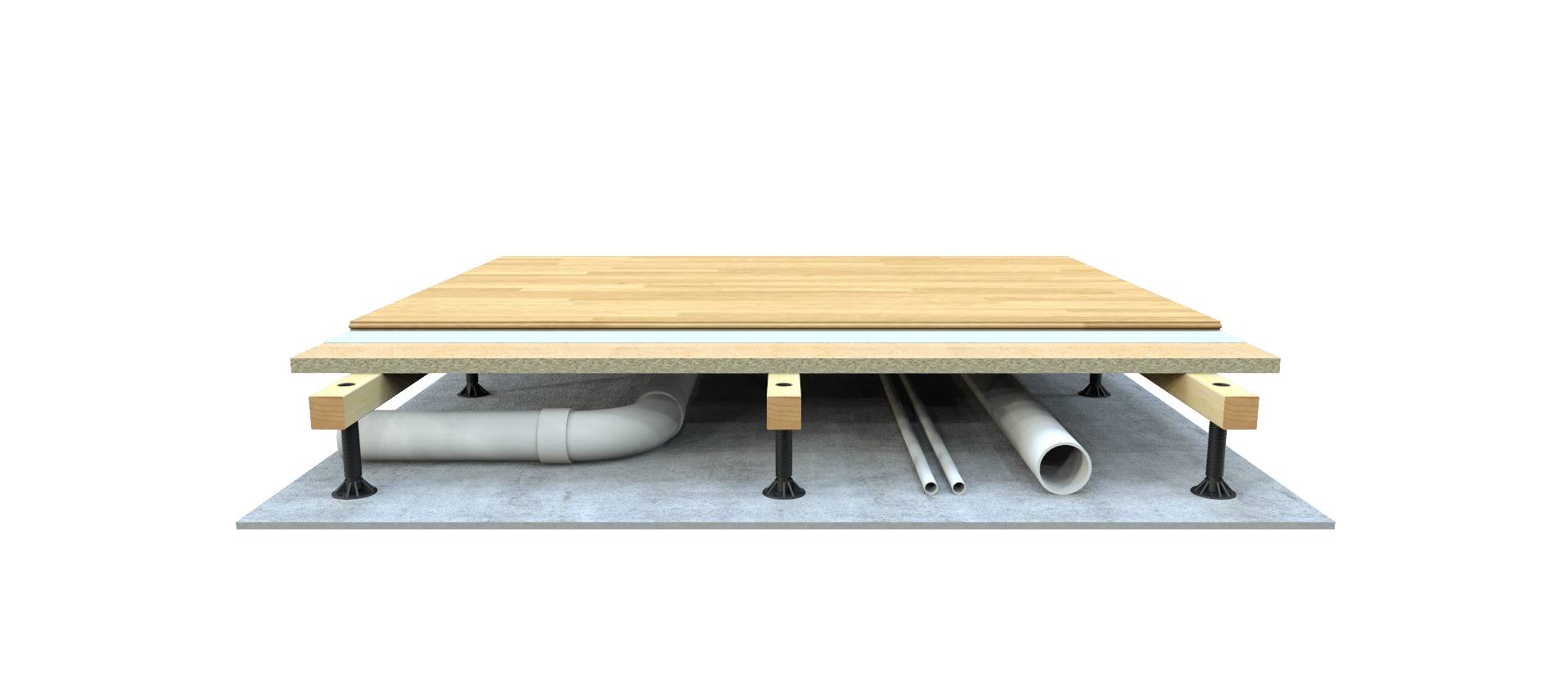

SubFloor provides a precision raised floor system ranging from 12 to 398 mm in height, creating an ideal space for installations and insulation.

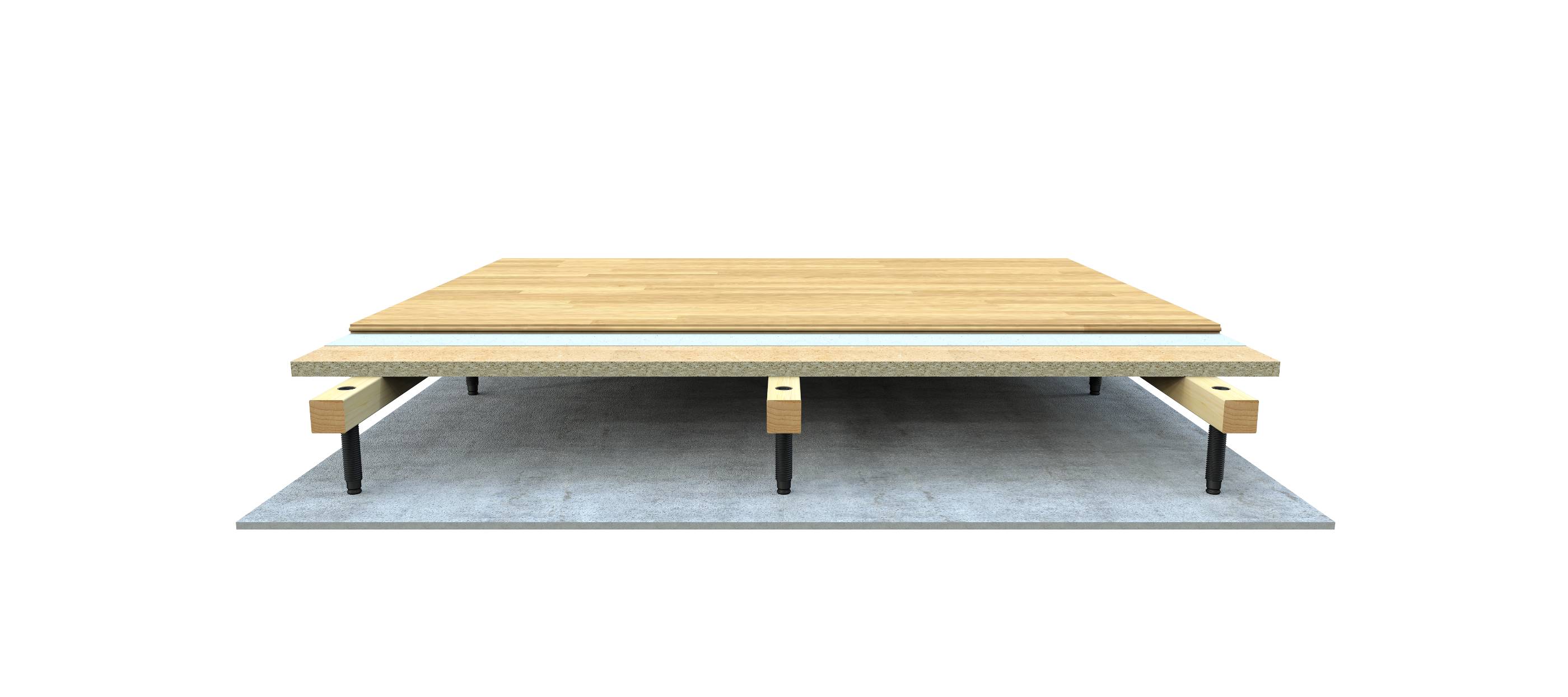

The straightforward SubFloor system comprises wooden joists, screws, and screw feet, with the sizes and materials adjustable based on functional requirements. Typically, chipboard flooring is used on top, allowing for any type of flooring material to be applied.


With the SubFloor system, the thickness of cast flooring can be reduced. For instance, a cast floor of 300 mm can be minimized to 200 mm while maintaining or even improving sound insulation. This results in a lighter overall construction with better economic efficiency. The installation space created also facilitates adjustments and future renovations.


Features and benefits:

  • Dry, Fast Installation: Installed directly on untreated subfloors without the need for wet surface leveling, chemical additives, or long drying times.
  • Flexible Installation Routing: Ample space between the surface flooring and subfloor for easy routing.
  • Lightweight Construction: Weighing between 2.36 kg/m² and 9.5 kg/m².
  • Precision and Adjustability: High accuracy and adjustability using quality materials.
  • High Load Tolerance: Compliant with EKS (European Construction Standards) for robust performance.
  • Versatile Height: Precision raised floors from 12 to 398 mm, with the possibility of even higher flooring.
  • Sustainable Materials: All wood used in SubFloor is sourced from PEFC-certified sawmills and suppliers.

General information

Color

Other

Finish

-

Manufacturer guidance

Any floor covering possible.

Material

Pine

Fibre-reinforced

Plastic

Steel

Wood

Shape

Other

Length

3600 mm

Width

Bespoke

Height

Bespoke

Uniclass

Ss_30_20_70_70 Raised access floor systemsPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

Specification data - Raised access floor systems

Subfloor preparation

Guidance for specification option:

  • Removal of existing carpet tiles and adhesive.
  • Make good existing screed surface to accept pedestals and fixings.

Support structure type

Access floor pedestals.

Pedestal fixings

Adhesive.

Nails.

Wood screws or nail plug.

MS Polymer-based construction glue/ adhesive with a high load capacity.

Concrete plug.

Raised access floor surface

Floor particleboard to EN 13986, class P6, 22 mm thick.

Guidance for specification option:

To meet load requirements for load category A according to EKS (European Construction Standards).

Floor particleboard to EN 13986, class P7, 22 mm thick.

Guidance for specification option:

To meet load requirements for load category A according to EKS (European Construction Standards).

Floor particleboard to EN 13986, class P6, 38 mm thick.

Guidance for specification option:

To meet load requirements for load category B and C1 according to EKS (European Construction Standards).

Floor particleboard to EN 13986, class P7, 38 mm thick.

Guidance for specification option:

To meet load requirements for load category B and C1 according to EKS (European Construction Standards).

Barriers in floor void

-

Fire barriers

Mineral wool slab insulation.

Sleeved mineral wool cavity barriers.

Raised access floor barrier.

Acoustic barriers

Mineral wool slab insulation.

Acoustic matting.

Plenum barriers

Rigid or semi-rigid nonporous sheets with smooth non-dusting surfaces.

Encapsulated mineral or glass wool lamella core boards or mats.

Joists

Pine T0-C24, pre-threaded to fit subfloor screws, 45 x 45 x 3600 mm.

Pine T0-C24, pre-threaded to fit subfloor screws, 45 x 70 x 3600 mm.

Pine T0-C24, pre-threaded to fit subfloor screws, 45 x 120 x 3600 mm.

Pedestals

Plastic screw 50 mm.

Guidance for specification option:

50 x 22 mm polypropylene.

Plastic screw 100 mm.

Guidance for specification option:

100 x 22 mm fibre reinforced polypropylene.

Plastic screw 200 mm.

Guidance for specification option:

200 x 22 mm fibre reinforced polypropylene.

Plastic screw 300 mm.

Guidance for specification option:

300 x 22 mm fibre reinforced vitamide.

Accessories

None.

Screw foot.

Guidance for specification option:

Composite plastic, Ø 60 mm.

Third-party certification

FSC certified timber.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Material

Pine

Fibre-reinforced

Plastic

Steel

Wood

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.02 kg CO₂ eq/m²

Recyclability

Reusable FSC certified spruce and steel joists

Third party certifications

Third party certifications

EPD

EPD
