Stylite T-Beam Zero - Suspended floor infill

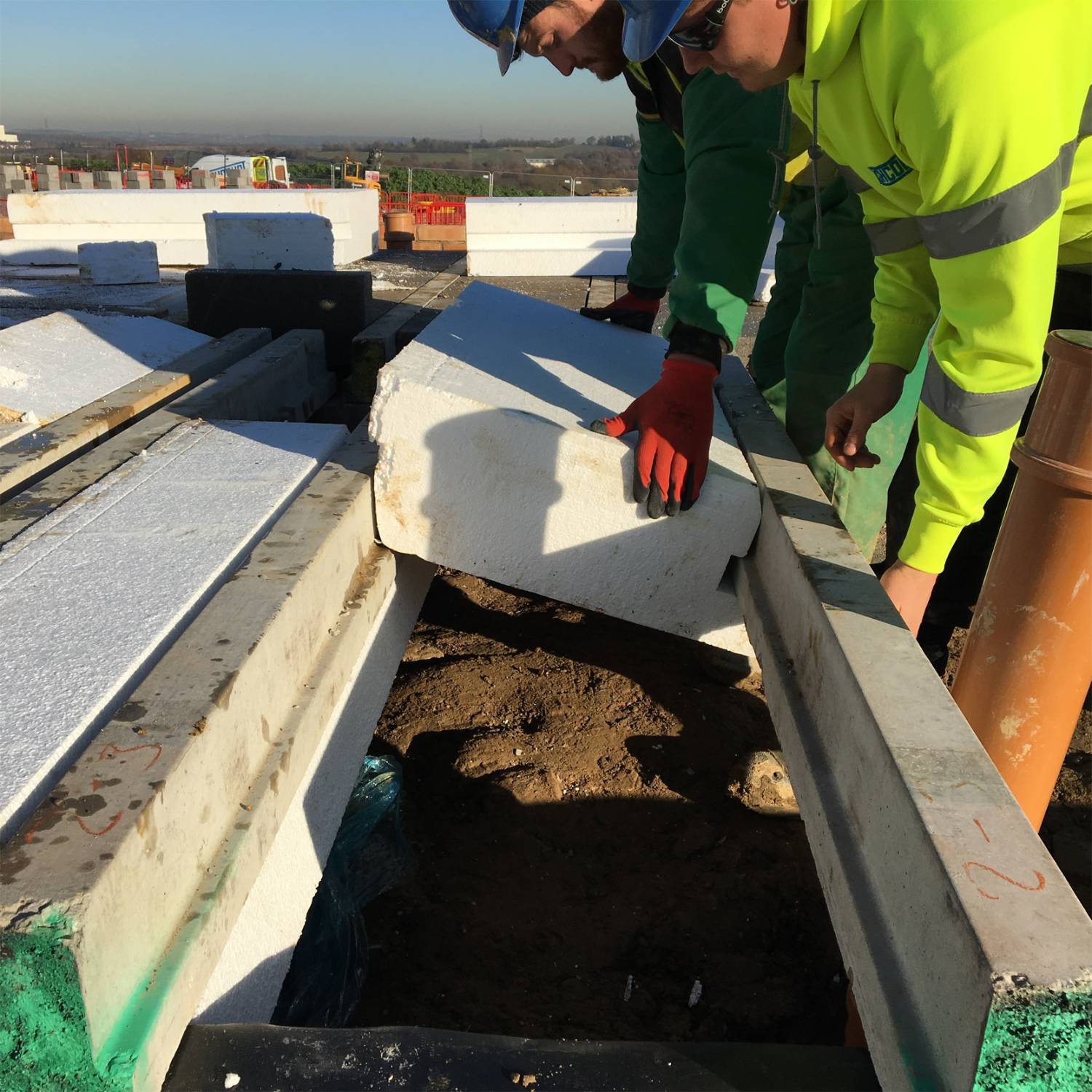

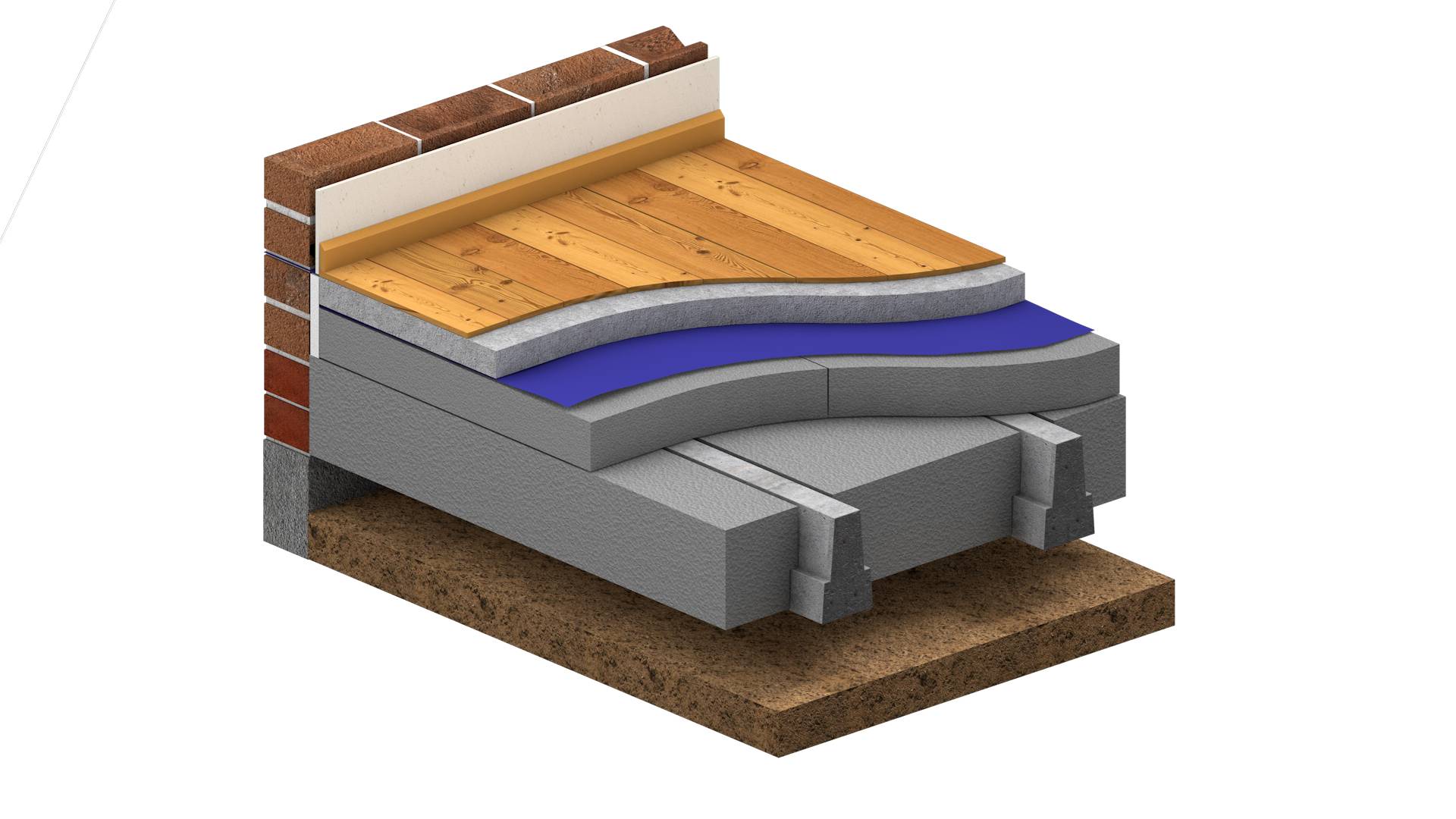

The Stylite T-Beam Zero Suspended Floor Infills are manufactured in accordance with BS EN 13163-2012+A2:2016 and BS EN 15037-4:2010+A1:2013, under ISO 9001:2015 and ISO 14001:2015 accredited management systems. They are used in conjunction with pre-stressed concrete beams and structural concrete toppings in suspended ground floors, suitable for domestic and residential buildings. The infills act as temporary formwork during construction and permanent formwork after the structural concrete topping is laid, achieving U-values as low as 0.09 W/m²K.

Savings on cost and time to be utilised with Stylite T-Beam Zero, for use in conjunction with pre-stressed concrete beams and structural concrete toppings in suspended ground floors. Suitable for use in domestic and residential buildings. The flexibility of the system offers a wide range of achievable target u-values, beam layouts and specified structural toppings making Stylite T-Beam Zero one of the most efficient flooring systems available.

Features and benefits:

• Outstanding PSI values.
• For use with structural concrete toppings.
• Flexible design for U-values and floor loading.
• Compatible with any pre-cast concrete beam profiles.
• Suitable for residential and domestic buildings.
• No reduction in performance over time.
• Lightweight, quick and easy to install.
• Minimal water absorption and permeability.
• 100% recyclable.
• BRE Green Guide Rating of A+.
• Kiwa BDA Agrément® BAF-20-149-S-A-UK.
• Length Tolerance: L2.
• Width Tolerance: W2.
• Thickness Tolerance: T2.
• Flatness Tolerance: P5/P3.
• Squareness: S2.

Expanded Polystyrene is rot proof, Expanded Polystyrene is not affected by bacteria, moulds or fungi, and will not provide nutrient value for insects or vermin. Expanded Polystyrene does not lose any performance over time and will remain an effective insulation for the life of the building.

Stylite Expanded Polystyrene will achieve reaction to fire Euroclass F. However, the classification achieved when installing in a building will be considerably better. We also supply FRA grades which contain a Fire Retardant Additive and achieve reaction to fire Euroclass E.

The Stylite Expanded Polystyrene does not contain HFC’s, CFC’s or HCFC’s. Expanded Polystyrene has a Global Warming Potential (GWP) of zero and a low O-Zone Depletion Potential (ODP). Expanded Polystyrene is 100% recyclable.
