STYLE Wall Hung Doc M Toilet Pack with Steel Concealed Fixing Grab Rails
Verified by manufacturer 4 months ago
DM830KCS/SS
DM830KCS/SS
DoP
Certificate type
KIWA BDA
Certificate type
WRAS
Certificate type

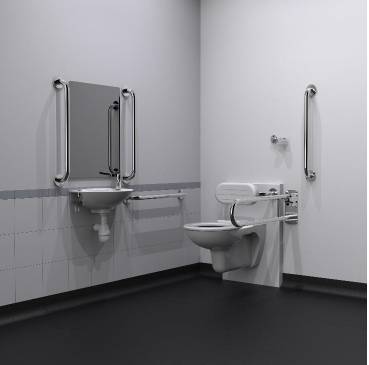

Wall hung Doc M toilet pack with steel concealed fixing grab rails.
Application
Suitable for accessible areas.
Description
Doc M compliant wall hung toilet pack with steel concealed fixing grab rails.
Features and benefits:
- Concealed fixing grab rails.
- Universal - suitable for left or right handed transfer.
- Simple one box solution.
- Complies with Part M of the Building Regulations.
- WRAS approved inlet valve and syphon.
Pack contents:
- 600 mm coated steel grab rails with exposed fixings (four).
- 450 mm stainless steel grab rail with concealed fixings.
- 800 mm stainless steel hinged support rail.
- 220 mm stainless steel back rest rail and pad with concealed fixing.
- Wall hung box rim Doc M pan.
- Floor mounting frame for wall hung pan.
- Concealed cistern with fittings, flush pipe, and Doc M concealed cistern spatula lever.
- Ring only toilet seat.
- Two tap hole basin.
- Sequential basin mixer tap.
- Tap hole stopper.
- Basin waste.
General information
Color | White Silver |
Finish | Polished Chrome Powder-coated |
Material | Steel Plastic |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceSee individual product data sheets. |
Uniclass | |
CAWS | N13/12 Unisex accessible WC equipment packages (Document M) N13/311 Unisex accessible WC equipment packages (Document M) |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Form | Complete accessible WC Doc M package and fittings. |
Arrangement | Wall hung pack.Guidance for specification option: Includes:
|
Transfer handing | Left-hand.Right-hand. |
Material and colour | |
WC pans | White. |
WC cisterns | White plastics, concealed. |
WC seats | Plastics, white. |
Washbasins | |
Material | White. |
Handrails | Satin stainless steel.Manufacturer guidanceConsult manufacturer's literature for details. |
Water supply fittings | Polished chrome sequential basin mixer tap. |
Integral accessories | Stainless steel back rest rail with concealed fixings and white pad. |
Wash basin | Compact Doc M basin, two tap holes, no overflow. Guidance for specification option: Includes:
|
Accessories | Not required. Toilet roll holder. Basin wall fixings (P-000248-X00X). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceIndividual items within pack vary in source |
Country of product manufacture | Portugal Guidance for specification option: Toilet pan made in Portugal - other items within pack vary (please contact the the manufacturer) Manufacturer guidanceIndividual items within pack vary in source |
Material | Steel Plastic |
Recyclability | Metal items recyclable Guidance for specification option: Other items within pack check local disposal guidelines, disassembly may be required |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

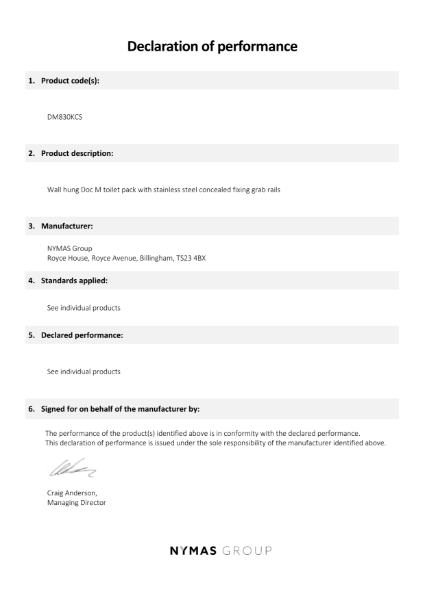

DoP
DOP-DM830KCS
KIWA BDA
REG4-BPLMON

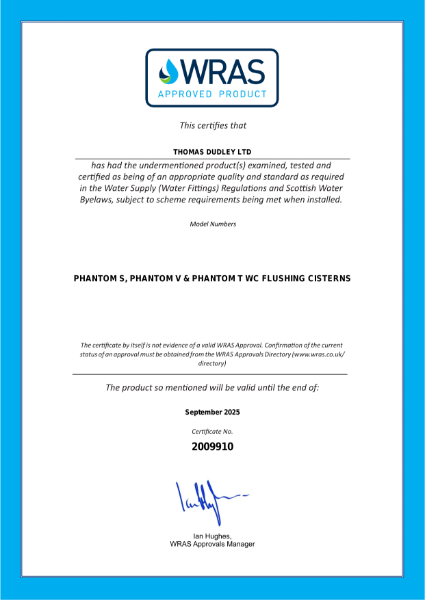

WRAS
REG4-B-CISTHIDE
Literature
NymaCARE Wall hung Doc M toilet pack with stainless steel concealed fixing grab rails
