STYLE Premium Rimless Luxury Close Coupled Doc M Toilet Pack
Verified by manufacturer 4 months ago
-SS
-SS
DoP
Certificate type
WRAS
Certificate type
KIWA BDA
Certificate type

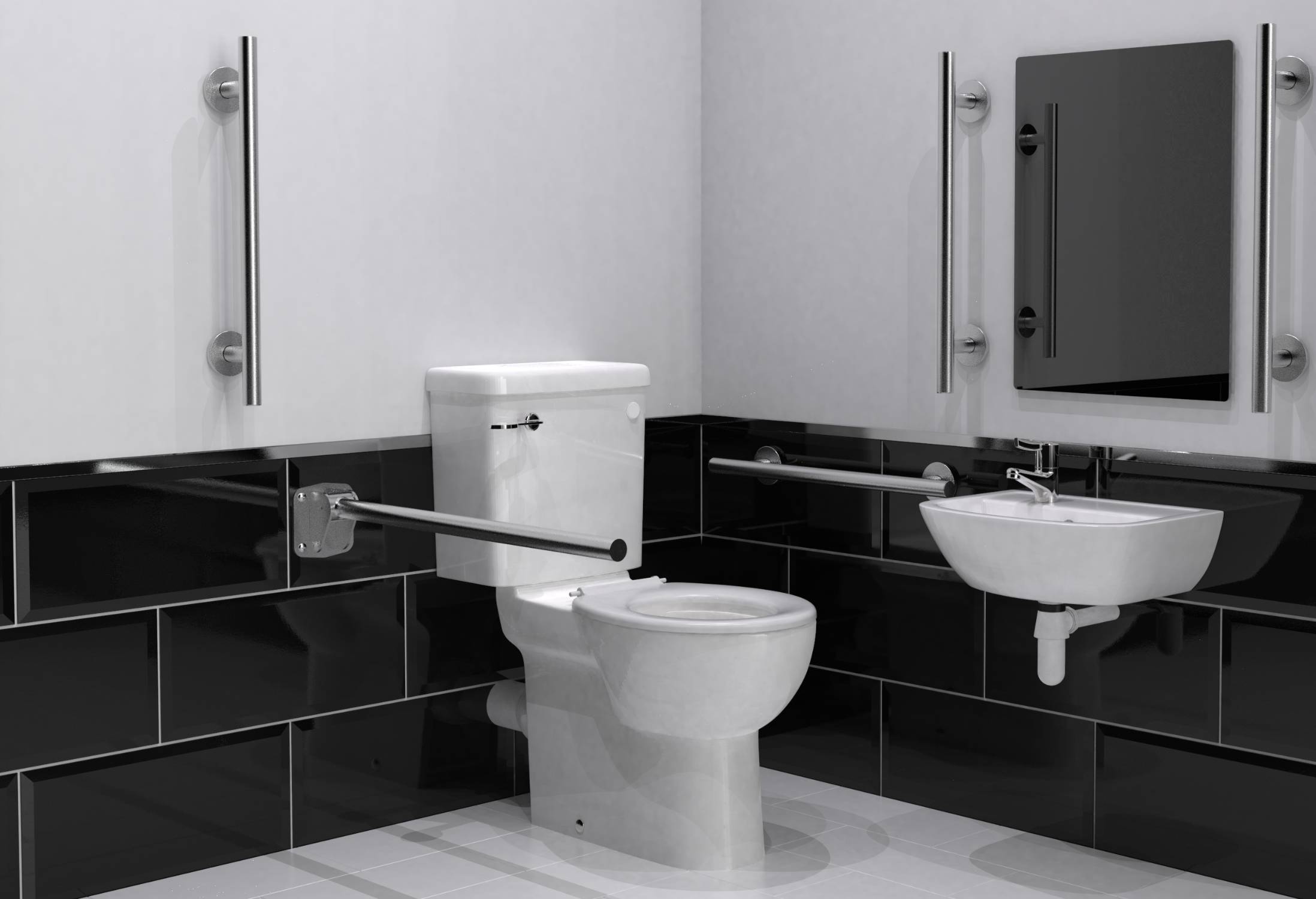

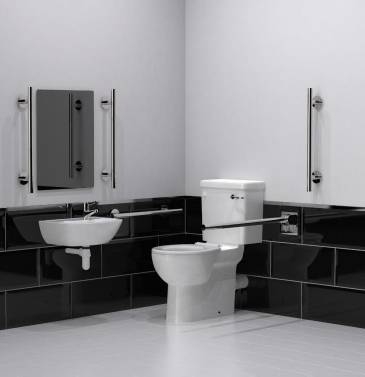

Premium rimless luxury close coupled Doc M toilet pack.
Application
Suitable for accessible areas.
Description
Luxury Doc M compliant rimless close-coupled toilet pack.
Features and benefits:
- Premium rimless pan.
- Lockable cistern lid.
- Concealed fixing stainless steel grab rails.
- Concealed fixing stainless steel hinged rail.
- Simple one box solution.
- Complies with Part M of the Building Regulations.
- WRAS approved inlet valve and syphon.
Pack contents:
- 600 mm stainless steel luxury grab rails with concealed fixings (four).
- 450 mm stainless steel luxury grab rail with concealed fixings.
- 800 mm stainless steel contemporary hinged support rail with concealed fixings.
- Close coupled premium rimless Doc M pan.
- Close coupled cistern with lockable lid.
- Close coupled cistern fitting pack with basin waste and Doc M spatula lever.
- Ring only toilet seat.
- One tap hole basin (either left or right hand).
- Sequential basin mixer tap (optional thermostatic mixer tap - NY03-DM-1320x only).
- TMV3 Valve (NY03-DM-1310x only).
General information
Color | Silver Black White |
Finish | Polished Powder-coated Matt Chrome |
Material | Steel Plastic |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceConsult manufacturer's literature for individual product warranties. |
Uniclass | |
CAWS | N13/12 Unisex accessible WC equipment packages (Document M) N13/311 Unisex accessible WC equipment packages (Document M) |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Form | Complete accessible WC Doc M package and fittings. |
Arrangement | Close-coupled pack.Guidance for specification option: Includes:
|
Transfer handing | Left-hand.Right-hand. |
Material and colour | |
WC pans | White. |
WC cisterns | White. |
WC seats | Plastics, white. |
Washbasins | |
Material | White. |
Handrails | Satin stainless steel. |
Water supply fittings | Polished chrome sequential basin mixer tap.TMV3 thermostatic mixer tap. |
Water supply temperature (maximum) | 85°C. |
Wash basin | Premium Doc M basin, two tap holes, no overflow. Premium Doc M basin, left handed tap hole, no overflow. Premium Doc M basin, right handed tap hole, no overflow. Premium Doc M basin, central tap hole, no overflow. |
Accessories | Not required. Premium basin fixing kit. TMV3 inline thermostatic mixing valve. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceIndividual items within pack vary in source |
Country of product manufacture | Egypt Guidance for specification option: Toilet pan made in Egypt - other items within pack vary (please contact the manufacturer) Manufacturer guidanceIndividual items within pack vary in source |
Material | Steel Plastic |
Recyclability | Metal items recyclable Guidance for specification option: Other items within pack check local disposal guidelines |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

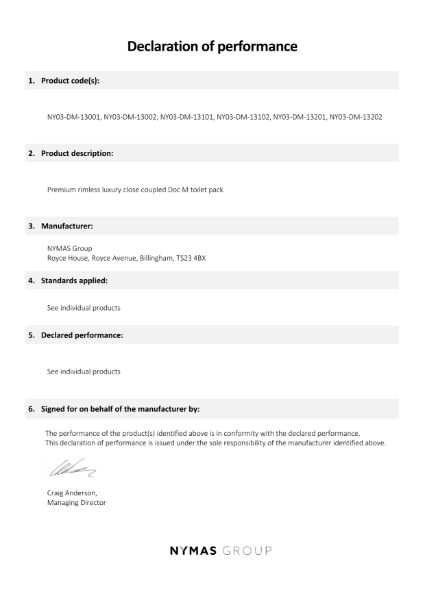

DoP
DOP-NY03-DM-13xxx

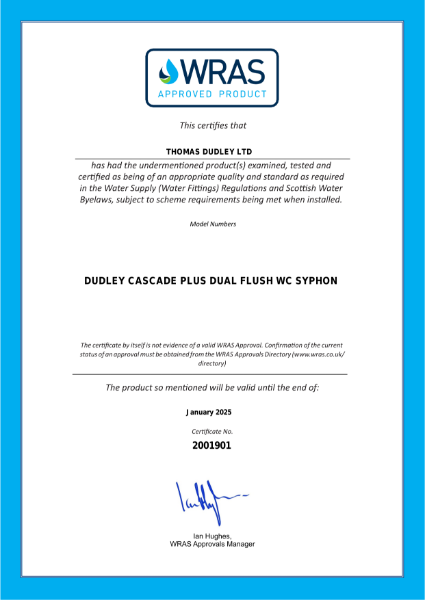

WRAS
REG4-HYDROFLO
WRAS
REG4-CASCADE

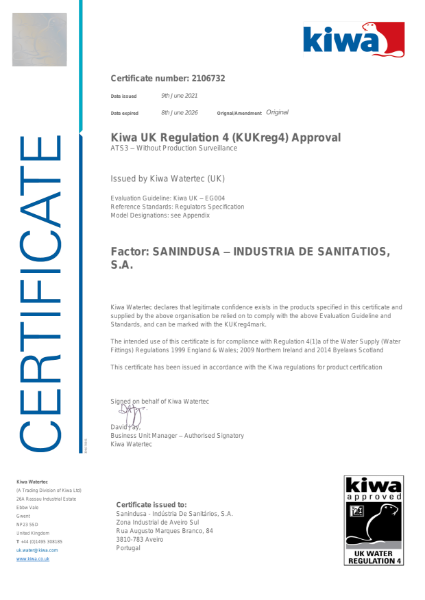

KIWA BDA
REG4-BPLMON
Literature
NymaSTYLE Premium rimless luxury close coupled Doc M toilet pack
