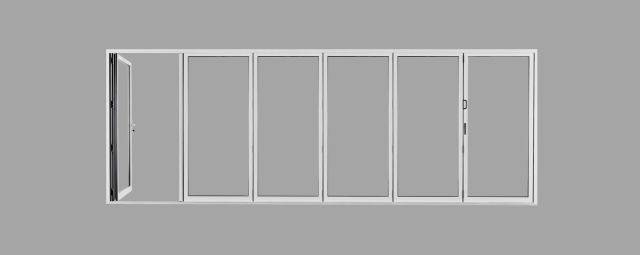

Studio Glide Bifold Doors
Application

Suitable for use in domestic and commercial applications.

Description

High-performance aluminium bi-fold doors.

Features and benefits:

  • Dual colour and multiple threshold options available.
  • Slim sightlines are included to maximize the area of glass and let in the maximum amount of natural light.
  • Smooth, reliable sliding mechanism.
  • Weather-resistant frames that won't expand or contract.
  • In-line system with sash and outer frame of the same depth.
  • Doors can open inwards or outwards, using the same profiles.
  • External access is available on any configuration.
  • Minimal profiles for a modern look.
  • Thermally efficient due to a thermal break in the frame that reduces heat loss, combined with energy-efficient glass to reduce energy bills.
  • Easily fabricated and quick to install.
  • Integrated locking solutions.
  • Adjustable jamb that allows fine adjustments.
  • Fast fabrication and installation.
  • Doors are glazed from the inside for increased security, using EDPM rubber gaskets (to BS7412:2007, BS4255-1:1986. 70 SHORE A) for sealing against the weather.
  • A range of options and configurations offered to create a glass wall of up to 6500 mm wide.
  • Polyester powder-coated at 40 microns minimum thickness, to BS EN 12206-1:2004.
  • Tested to BS 6375.
  • PAS 24 Security-accredited.
  • Ten-year guarantee against warping and frame failure.

Applications:

Suitable for use in domestic and commercial applications.

General information
Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS

L20/530 Sliding folding external doors

Specification data - Sliding door and partition sets
Product Reference

Studio Glide Bifold Doors

Configuration

See 'Options' for details and insert requirements.

Threshold

Fully weathered

Low level

For use with room dividers.

Ironmongery

Door handles

Shootbolt handles with escutcheon

Shootbolt handles without escutcheon

Colour/ Finish -
Doors

Anthracite Grey exterior and interior

Anthracite Grey exterior and white interior

Black exterior and interior

White exterior and interior

Ironmongery

Anthracite Grey

Black

Brushed satin

Chrome

White

Weatherpiles

Nylon-backed

PVC-backed

Glazing

28 mm, double-glazed

U-value: 1.6 W/m²K.

44 mm, triple-glazed

U-value: 1.3 W/m²K. Requires bead and gasket changes – consult manufacturer for details.

Accessories

Not required

Magnetic door holders

Nylon-backed fin and wool pile draught seals

PVC-backed fin and wool pile draught seals

Standard product features

Aluminium extrusion:

Aluminium alloy 6063 T5/ T6 to BS EN 12020-2:2008.

Integral gaskets:

Complete with integral door profile and outer frame glazing gaskets.

Aluminium track:

A neutral coloured anodized aluminium track is provided to compliment all door colour options. Anodizing to BS 3987:1991.AA25.

Product Options

Size:

The width and height are subject to site conditions allowing for wind loads, locations and use. Consult manufacturer for details.

– Sash:

Maximum weight is 120 kg.

Configuration:

A range of configurations is available, including:

  • 1-0-1.
  • 1-1-0.
  • 2-0-2.
  • 2-1-1.
  • 2-2-0.
  • 3-0-3.
  • 3-1-2.
  • 3-2-1.
  • 3-3-0.
  • 4-0-4.
  • 4-1-2.
  • 4-1-3.
  • 4-2-2.
  • 4-3-1.
  • 4-4-0.
  • 5-0-5.
  • 5-1-4.
  • 5-2-3.
  • 5-3-2.
  • 5-4-1.
  • 5-5-0.
  • 6-0-6.
  • 6-1-5.
  • 6-2-4.
  • 6-3-3.
  • 6-4-2.
  • 6-5-1.
  • 6-6-0.
  • 7-0-7.
  • 7-1-6.
  • 7-2-5.
  • 7-3-4.
  • 7-4-3.
  • 7-5-2.
  • 7-6-1.
  • 7-7-0.

Note: The first digit represents the total number of leaves; the second digit represents the number of leaves folding left, and the third digit represents the number of leaves folding right. The maximum number of sashes recommended going one way is seven.

Weatherpiles:

To BS 7386:1997.
