Stravifloor Jackup-E - Isolated Floating Floor System

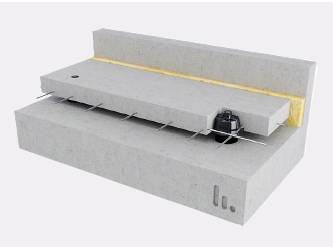

Stravifloor Jackup-E is an isolated floating floor system using moulded natural rubber within bell-shaped cast iron housings cast into concrete and jacked up after the concrete has cured, to provide the required void depth. Once the concrete has cured, the isolated slab is raised off the structure to the required void depth.

Stravifloor Jackup-E boxes allow for easy adjustment of the final floor height. It is cost-effective solution with minimal risk of acoustic bridging between the floating floor slab and the subfloor.

Features and benefits:

• Can be provided with elastomer bearings giving a natural frequency as low as 9 Hz.
• Standard solutions available with moulded natural rubber resilient pads in two standard grades: Pad-L (low stiffness), Pad-M (medium stiffness)
• Standard design is for 85 mm thick floors (box height). The housing can be fitted with a height extension unit for thicker floating floors.
• Stravifloor Jackup-E boxes have a maximum load per box of 49 kN.
• Reduces the risk of having a bridge between the slab and the structure, isolation is guaranteed because the whole slab is lifted (there is no opportunity for any debris to be left in the cavity and any bridging is broken when the slab is lifted up).
• Can have a shallow or adjustable air void.
• Can take high loads before the slab is raised (e.g. used as a storage area during construction).
• Eliminates the cost and need for combustible, rot-prone plywood forms.
