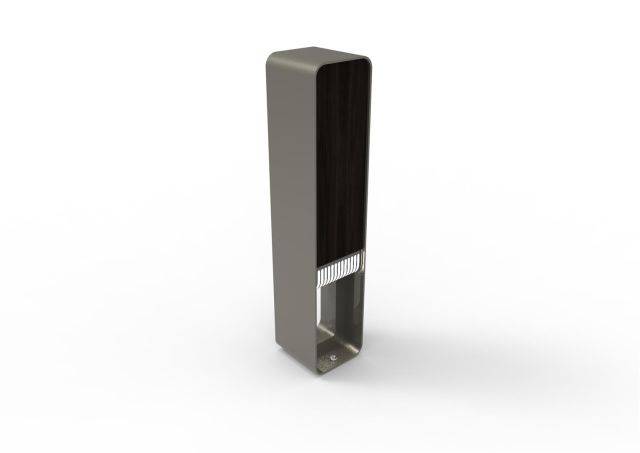

Stratic Collection – LED Marker

The Stratic LED marker is the ideal tool for guidance and demarcation and adds design details. Manufactured with a stainless steel frame, and finished with Accoya timber.

The single-sided, high-performance LED unit is protected to IP66, and further protected with an aluminium grille and acrylic diffuser, creating soft low-level illumination. The high efficiency LED system is programmable to give a variety of light outputs, and is further controllable using the industry standard DALI protocol. Integrated photocells can be fitted on request.

Features and benefits:

  • Contemporary angular design.
  • Wide slat detail.
  • Available in a choice of finish option.
  • The collection coordinates well with the Celestia paving range.

General information


The body has a stainless steel frame with accoya timber cladding

Uniclass 2015

Pr_40_10_77_99 Waymarker postsPrimary


N91/555 Waymarker post/ bollard

Specification data - Waymarker posts

Product Reference

Stratic Collection - LED Marker

Colour/ Finish


Timber components

Timber stain - Onyx

Timber stain - Copper

Metallic components

Powder coated - Quartz

Powder coated - Carbon



Integrated photocells

Available on request.

Standard product features

Size (l x w x h):

200 x 200 x 950 mm.


56 kg.


The body has a stainless steel frame with accoya timber cladding.


  • Supply voltage: 120–250 V.
  • Supply current: 0.1A TYP.
  • Maximum power: 25 W.
  • Maximum light output: 2300 lm. (Lumens stated based on single variant ignoring diffuser losses.)
  • LED efficiency: 86% at full load.
  • DALI compatible, with both dimming and programming options.


Surface fixed using chemical anchor sockets and M12 fasteners.
