Strata - A2 Aluminium Insulated Spandrel Panel

Strata A2 Aluminium Insulated Spandrel Panels

(Classified in accordance with BS EN 13501-1:2018 – Reaction to Fire, achieving A2-s1,d0)

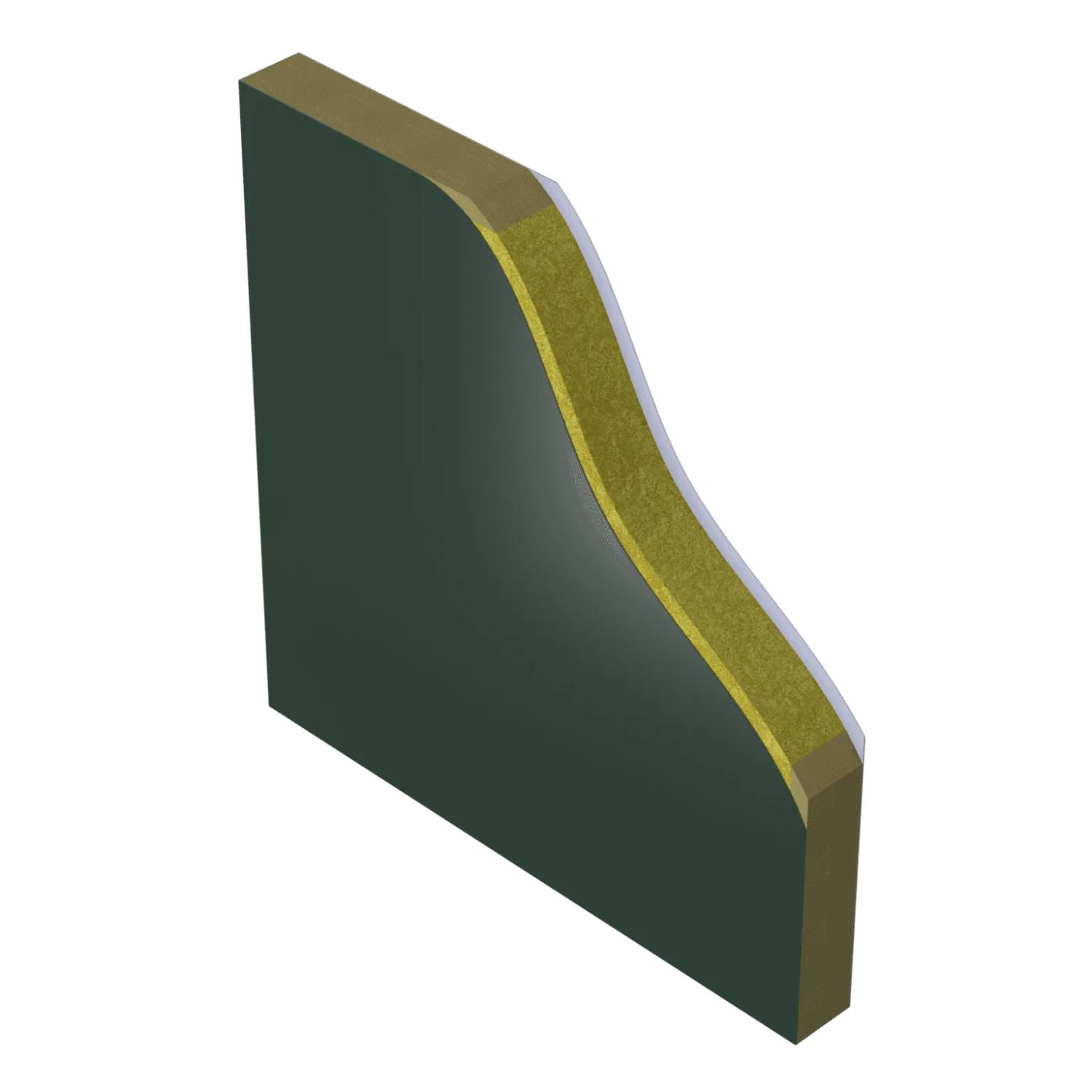

The Strata A2 Spandrel Panels are factory-bonded insulated panels designed for use in curtain walling and façade applications. Each panel consists of aluminium skins (1.5–3.0 mm) with a Rockwool Fabrock® CWP 410 mineral wool insulation core (Euroclass A1 non-combustible).

For additional strength and perimeter durability, panels can be supplied with hard edges in either:

• Fabrock® CWP 411 mineral wool hard edge, or
• Promatect® 250 calcium silicate board hard edge.

Panels are classified for use in overall thicknesses from 20 mm to 100 mm.

The aluminium face and reverse skins are finished with either polyester powder coating (PPC - available in a full range of colours to suit project requirements), anodising and/or mill finish. A rear tray option is also available with the Strata system for enhanced installation flexibility.

🔹 Features and Benefits

• Fire safe: Achieves A2-s1,d0 classification (non-combustible with very limited smoke and no flaming droplets).
• Durable finish: Polyester powder-coated aluminium skins with wide colour choice.
• Design flexibility: Panels can be fabricated in a range of shapes, sizes, and colours.
• Performance: Provides effective weather protection and helps reduce solar transmission in glazed façades.
• Compatibility: Suitable for use in curtain walling, spandrel, and façade infill applications.
