Stepless LP7 - Platform Lift

Verified by manufacturer 22 days ago

Guldmann Limited Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Platform lift for wheelchair users capable of lifting up to 1500mm. Includes bi-parting automatic gates and is suitable for use both indoors and out. This platform lift requires no lift pit

Jump to:
+44 (0)1347 825287 Website

Application

Platform lift to provide access for wheelchair users. Suitable for use indoors and outdoors. Suitable for public and domestic properties.

Description

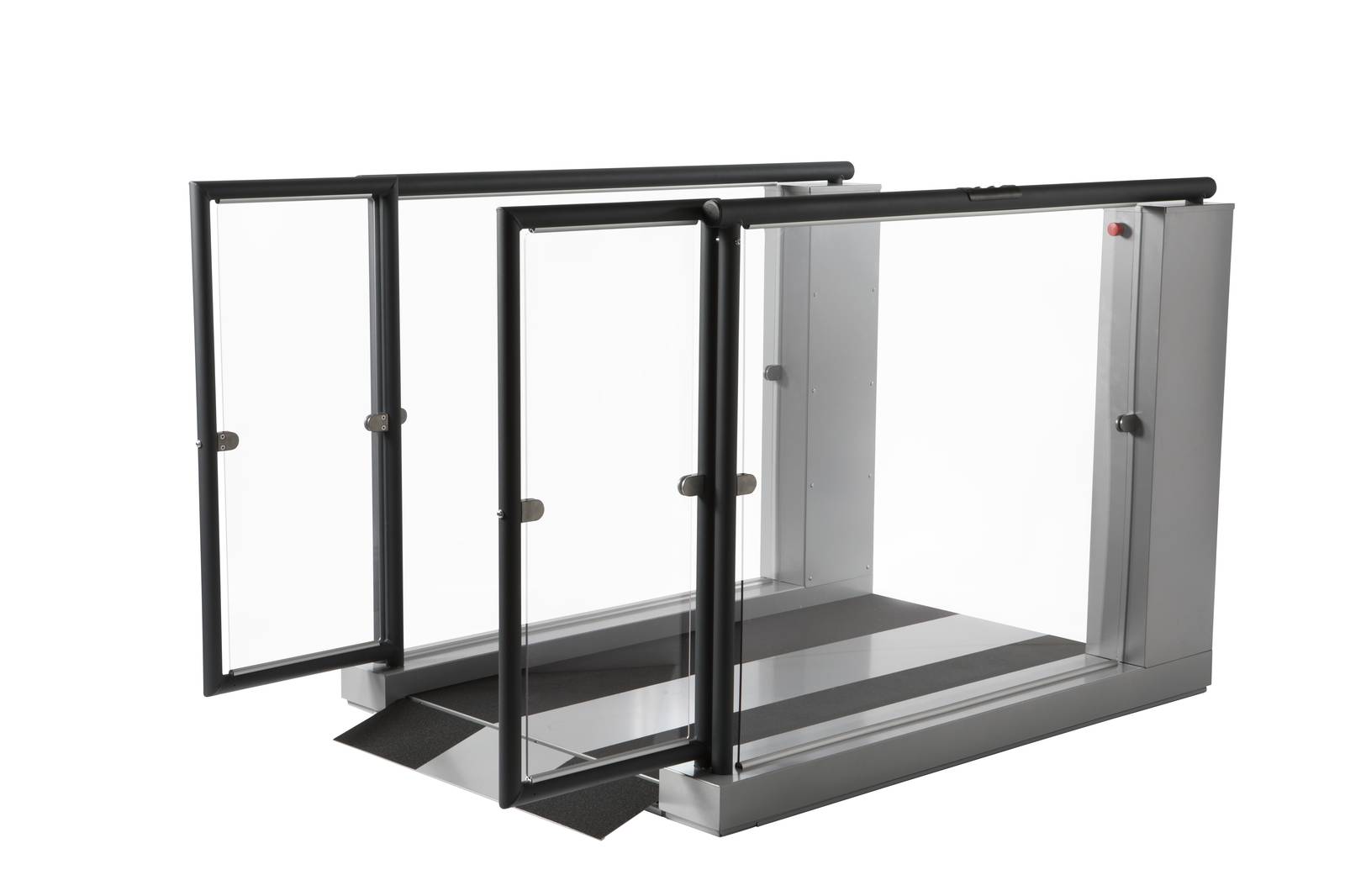

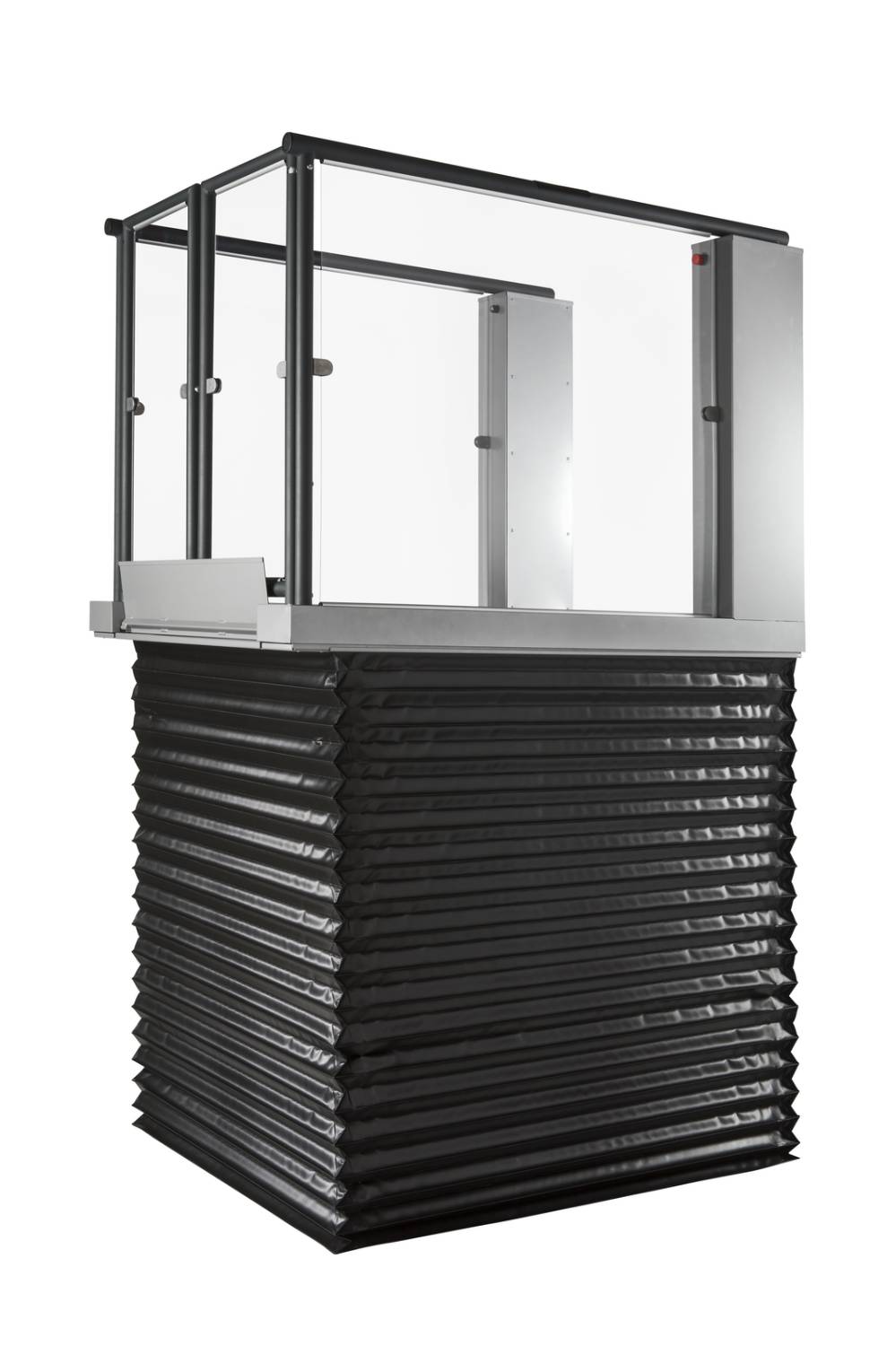

The Stepless LP7 platform lift has a unique, self-supporting construction. LP7 has a very low entry level of only 50 mm, which allows for a short ramp and no need for placing the platform in a pit. The LP7 platform lift can achieve a lifting height of up to 1500 mm and has a lifting capacity of 350 kg.


The platform lift has an elegant and light design that is simple to integrate in various environments. LP7 is for indoor as well as outdoor use, and is easy to install, as it is placed directly on the ground and is self-supporting. As a precaution, and to avoid any extraneous foreign objects, the LP7 comes with a safety shielding which covers/shields the full lifting area.


With an LP7 platform lift, the vast majority of users will be self-reliant. Operating buttons are easily accessible on the platform itself, in addition to external wall-mounted or freestanding operating panels on the upper and lower level.


The Stepless LP7 can be supplied either with a ramp safety device or with a fully automatic safety gate at the lower level. A fully automated safety gate may also be added at the upper level (Depending on local and national conditions, be aware of various regulations for lifting height and safety gates).


Features and benefits:

  • Lifts up to 1500 mm.
  • 50 mm ramp height.
  • For indoor and outdoor use.
  • Electronic emergency stop and emergency lowering.
  • Automatic on/off.
  • Lifting height (minimum/ maximum): 50/ 800 mm.

General information

Color

Silver

Grey

Finish

Powder-coated

Material

Steel

Aluminium

Length

1548 mm

Width

900 mm

Warranty description

One year

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/350 Platform lifts

X12/350 Platform lifts

Specification data - Vertical lifting platforms

Standard

To BS EN 81-41.

Carrier

-

Infill material

Plexiglass sides.

Doors

-

Clear opening width (minimum)

970 mm.

Frame material

Galvanized steel.

Frame finish

Powder-coated.

Frame colour

RAL 9006, gloss 40.

RAL 7016.

Carrier floor

-

Dimensions

-

Width (minimum)

900 mm.

Depth (minimum)

1600 mm.

Electrical supply

90–264 V AC, power consumption: 600 W.

Control device type

Operating panel.

Accessories

None.

External control panel.

Fully automatic safety doors.

Lifting beam.

Safety gate.

Two-way communication.

Upper level fully automatic safety doors.

Wireless external control panel.

Ramp safety device.

Material:

Aluminium and powder coated galvanized steel.

Lifting capacity

350 kg.

Speed

28 mm/second.

Ingress protection

IP65 wit the operating panel IP54.

Sustainability data

Contains Red List materials

No

Country of material origin

Ukraine

Country of product manufacture

Denmark

Recyclability

Recyclable

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO_14001-2015_Certificate_2023 - Environmental Management System Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO_9001_2015_certificate - Quality Management

Literature

Stepless LP7 - Datasheet

Stepless LP7 - Datasheet

Stepless LP7 lifting platform - Technical Drawings

Stepless LP7 lifting platform - Technical Drawings

Stepless LP7+ Datasheet

Stepless LP7+ Datasheet

Stepless LP7+ lifting platform - Technical Drawings

Stepless LP7+ lifting platform - Technical Drawings

CE Certificate - Stepless LP7 & LP7+ lifting platforms

CE Certificate - Stepless LP7 & LP7+ lifting platforms

Stepless LP7 Planning Guide

Stepless LP7 Planning Guide

Stepless LP7 platform lift - Product Datasheet

Stepless LP7 platform lift - Product Datasheet

Stepless LP7+ Planning Guide

Stepless LP7+ Planning Guide

Stepless LP7+ platform lift - Product Datasheet

Stepless LP7+ platform lift - Product Datasheet
