Step Lift

Name: Step Lift
Brand: Sheridan Lifts
SKU: 8JxwPGxxxErSg8KnfV7C8j

Verified by manufacturer 2 months ago

800 x 1400 mm usable platform

Sheridan Lifts

Third party certifications:

CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type
smas WORKSAFE
Certificate type
Constructionline
Certificate type

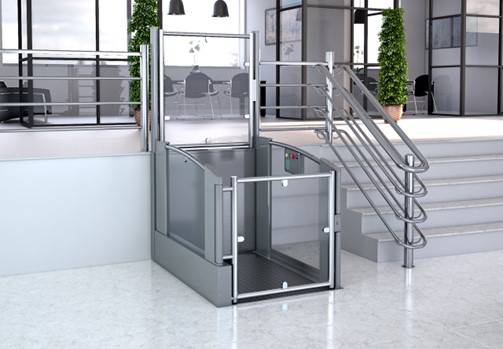

SL Independence step lift for public use by ambulant and wheelchair users.

Jump to:

0161 203 6299 Website

Application

Step lift for public use by ambulant and wheelchair users. Internal or external use.

Description

SL Independence step lift for public use by ambulant and wheelchair users.

Features and benefits:

Suitable for internal or external use.
Can be used by wheelchair user plus attendant.
Rated speed of 0.1 m/s.
Safe Working Load (SWL) of 500 kg.
Maximum travel of 3 m.
Noise levels: 70 dB (at 1 m); 60 dB (at 5 m).

General information

Shape	Rectangle
Length	1400 mm
Width	800 mm 900 mm 1100 mm
Warranty description	One year Guidance for specification option: 12 months' parts warranty subject to lift servicing; consult manufacturer for details.

Uniclass	Pr_65_80_42_83 Step liftsPrimary
CAWS	X12/355 Step lifts X12/355 Step lifts

Specification data - Step lifts

Standard	To BS 6440:2011; EN 81-41 (ref. only); Machinery Directive 2006/42/EC.
Rated load (minimum)	500 kg. Guidance for specification option: Safe Working Load (SWL).
Drive type	Direct acting hydraulic cantilever with self-contained power pack. Guidance for specification option: Rated speed: 0.1 m/s. Motor size: 0.5 kW. Duty cycle: Ten cycles/hour. Pump operating pressure (maximum): 100 bar. Cylinder operating pressure: 70 bar. Pressure switch setting: 80 bar. Relief valve setting: 100 bar. Hydraulic oil grade: Tellus 32. Operating range: -10°C to +40°C. Safety: Sensitive bottom tray and ramp, hydraulic restrictor. Low voltage operating system: 24 V d.c. Battery driven; do not disconnect from mains for extended periods.
Platform configuration	Through.
Enclosure	-
Frame material	Manufacturer's standard.
Frame finish	Guidance for specification option: Consult manufacturer for options and insert requirements.
Frame colour	Guidance for specification option: Consult manufacturer for options and insert requirements.
Infill material	Silicon acrylic clear infill panels. Aluminium infill panels.
Infill finish	Guidance for specification option: Consult manufacturer for options and insert requirements. Custom RAL colour finish available.
Infill colour	Guidance for specification option: Consult manufacturer for options and insert requirements.
Gate leaves	-
Operation	Manufacturer's standard.
Clear opening width (minimum)	Manufacturer's standard.
Frame material	Manufacturer's standard.
Frame finish	Guidance for specification option: Consult manufacturer for options and insert requirements.
Frame colour	Guidance for specification option: Consult manufacturer for options and insert requirements.
Infill material	Guidance for specification option: Consult manufacturer for options and insert requirements.
Infill finish	Guidance for specification option: Consult manufacturer for options and insert requirements.
Infill colour	Guidance for specification option: Consult manufacturer for options and insert requirements.
Carrier floor	-
Dimensions	-
Width (minimum)	800 mm.
Depth (minimum)	1400 mm.
Material	Guidance for specification option: Safety flooring. Consult manufacturer for options and insert requirements.
Colour	Guidance for specification option: Coloured. Consult manufacturer for options and insert requirements.
Electrical supply	Single-phase 230 V a.c. 50 Hz: dedicated RCD protected supply required.
Control device type	Manufacturer's standard.
Control features	Manufacturer's standard.
Accessories	Not required. Call stations. Manufacturer guidance Other accessories available. Consult manufacturer for options and insert requirements or omit.

Handrail	Manufacturer's standard.
