Single louvre door

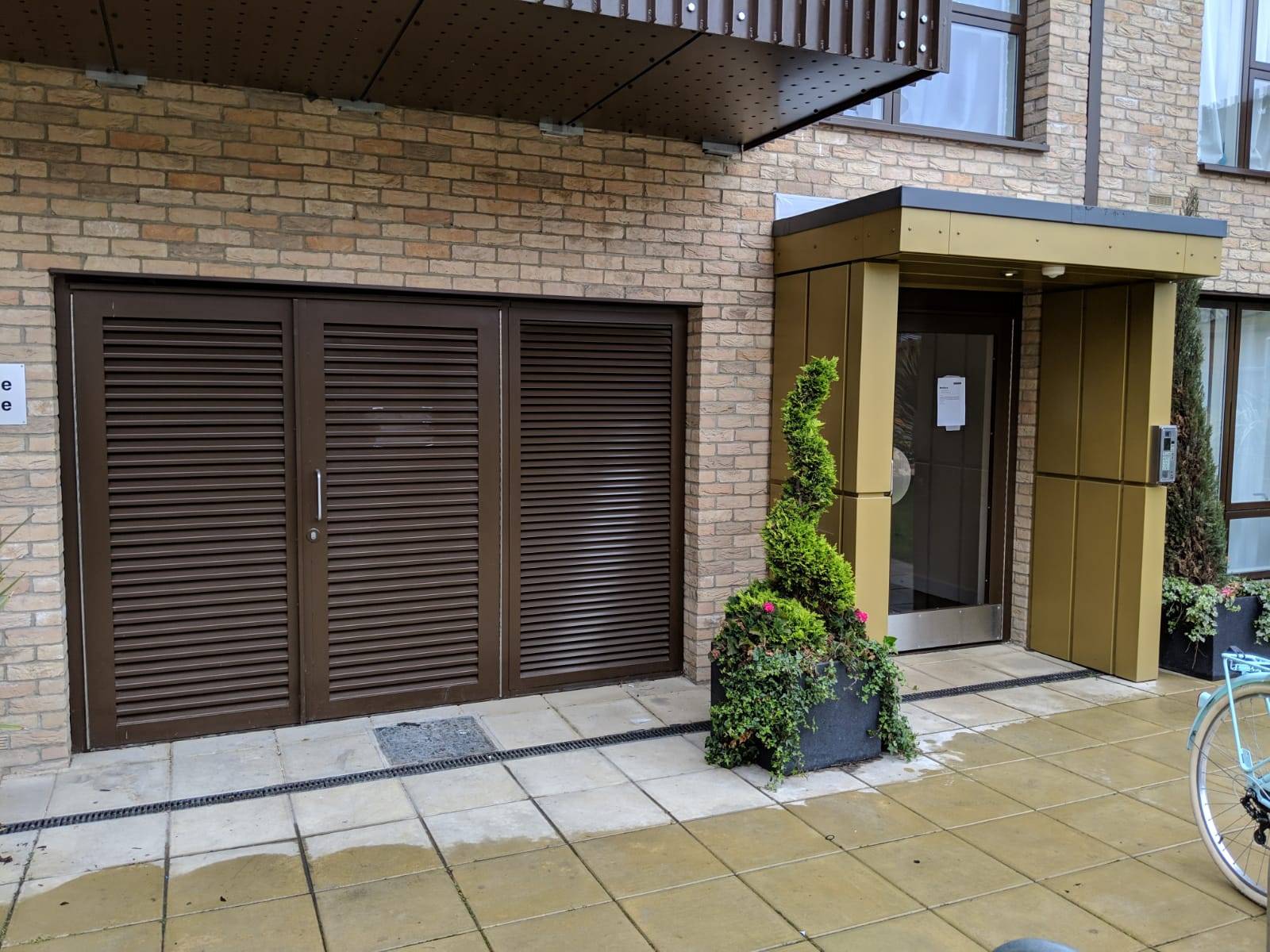

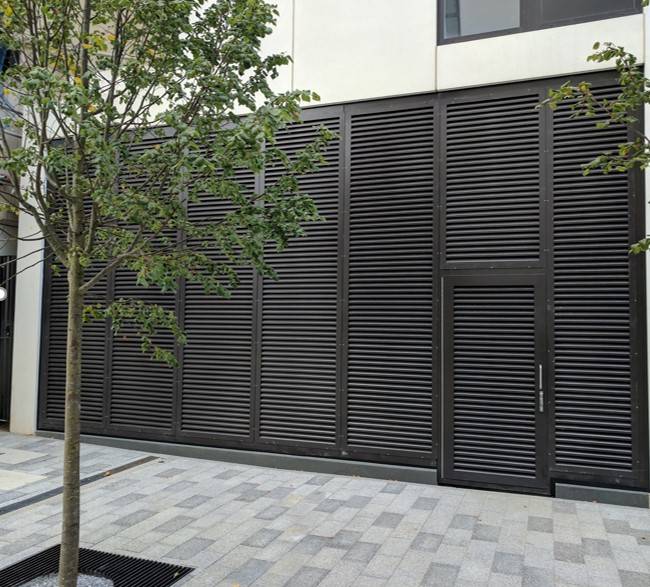

A single/ double leaf, steel louvre security door.
Suitable for multi-tenancy residential properties, all high-end environments, airports, distribution centres, hospitals, industrial units, offices, retail units, banks and hotels.
Single/ double leaf, inward/ outward opening steel louvre doors achieving LPS1175 SR2 and LPS2081 SRB thermally broken security. Also available in perforated versions.
Color | Other Manufacturer guidanceAvailable in all RAL colours. |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | 1200 mm Guidance for specification option: Single Door 1800 mm Guidance for specification option: Double Door Manufacturer guidanceStandards |
Height | 2100 mm Guidance for specification option: Single Door 2200 mm Guidance for specification option: Double Door Manufacturer guidanceStandard |
Warranty description | One year Guidance for specification option: Minimum |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Classification data | |
Security performance | To LPS 1175, SR 2 and LPS 2081, SRB. |
Door leaf | |
Locking mechanism | Locking system 1 - 2 No. Securitron M32 Maglock. Guidance for specification option: Only usable with Single leaf outward opening doorset. Locking system 2 - 3 No. Securitron M32 Maglock. Guidance for specification option: Only usable with Single leaf outward opening doorset. Locking system 7 - 2 No. Securitron M62 Maglock. Locking system 8 - 1 No. IGEM 5000 Maglock. Guidance for specification option: Only usable with Single leaf outward opening doorset. Locking system 9 - 2 No. IGEM 5000 Maglock. Locking system 10 - 3 No. IGEM 5000 Maglock. |
Accessories | None. Integral letter box panel. Pull handle. |
Configuration | Single leaf outward opening doorset. Single leaf inward opening doorset. |
Access control | Not required. EIS 7800Q. EIS 7800QIP. EIS Solon. IPGUARD 4G/IP/GSM PRO. IPGUARD MINI. IPGUARD MINI PLUS. IPGUARD TOUCH smart technology visitor panels. NPH300 video door entry stainless steel panels. IPVIEW full IP/PoE video door entry stainless steel. IPVIEW TOUCH. IPVIEW PushButton panels. DUOVIEW 2-wire door entry stainless steel. DUOVIEW TOUCH 2-wire door entry panel. DUOVIEW Push-Button 2-wire door entry panel. EVE196-X3-RS BATICONNECT.COM (Cloud) proximity reader access control unit. PORTACODE BATICONNECT.COM keypad PCA327-RS. PORTACODE BATICONNECT.COM keypad PTI327-RS. Proximity Reader PX11 (LPERS) for EVE196-X3-RS BATICONNECT.COM (Cloud). Proximity Reader PX10 (LPMRS) for EVE196-X3-RS BATICONNECT.COM (Cloud). Proximity Reader LPTRS for EVE196-X3-RS BATICONNECT.COM (Cloud). Urmet Castel CAP-IP. Castel Xellip. Urmet Castel 2Voice. Urmet Castel S-Steel. Urmet Castel V-Steel. Urmet Castel Transit. Urmet Castel Transit Plus. Urmet Castel IPassan. Urmet Castel IPercom. Urmet Castel RTE14. ISM Compact. ISM Classic 2000. ISM Classic 3000. SBD Telguard Satellite Senior fitted with BD-SAT I/O connected to SBD Hy-Can Hub. SBD Satellite Millennium fitted with BD-SAT I/O connected to SBD Hy-Can Hub. SBD Telpad II connected to SBD Hy-Can Hub. Entrotec Apex fully isolated audio video door entry system with remote lock trigger. Entrotec EasiTag solution with integrated high security access control with remote lock trigger. Entrotec e-Pro IP solution with integrated high security access control with remote lock trigger. Comelit 2-Wire Door Entry Solutions. Guidance for specification option: Building kits, SimpleBus systems and 1256 remote relay included. Comelit ViP Door Entry Solutions. Guidance for specification option: 1443 remote relay included. KMS SimpleKey 4. Videx VR120 door entry system with remote lock relay. Videx VX2200 door entry system with remote lock relay or Miacces. |
Panel infill | Louvre vent infill. |
Hinges | Continuous stainless steel anti-nip piano hinge - welded. Continuous stainless steel anti-nip piano hinge - bolted on. |
Door closer | Not required. Surface mounted automatic. Surface mounted manual. |
Door colour | Manufacturer guidanceAvailable in all RAL colours. Insert requirments. |
Opening sizes | Manufacturer guidanceMaximum size, H x W: Single leaf: 3100 x 1800 mm. Insert requirements or refer to a drawing or schedule. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | 98% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 98 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
