Steel Doors AD05 Armourdoor General Purpose

HAG Ltd. - The Door Specialists Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • Warringtonfire

    Warringtonfire

    Certificate type

  • ISO 9001:2015

    ISO 9001:2015

    Certificate type

  • ADSA

    ADSA

    Certificate type

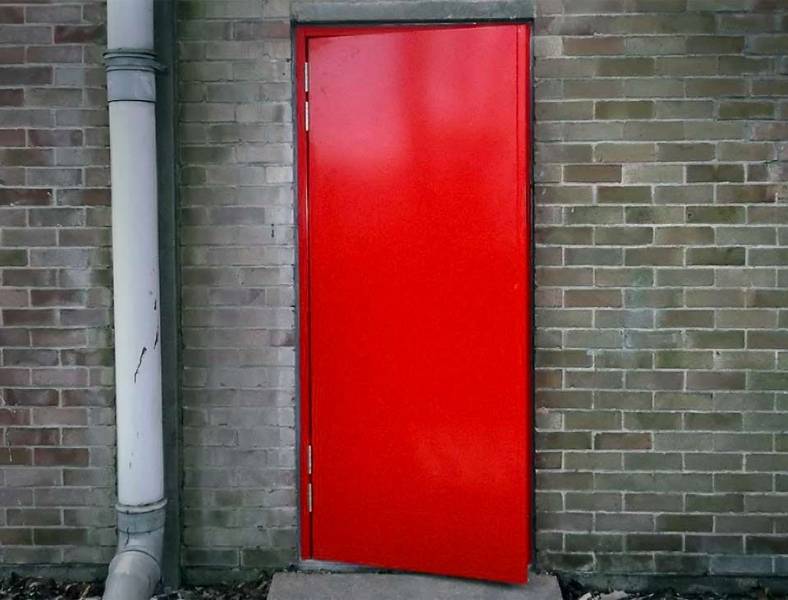

General purpose steel door.

Jump to:
0800 072 3444 Website

Application

  • Suitable for use on industrial units, agriculture buildings.
  • Typical areas of installation are shops, offices, schools and hospitals.


Description

General purpose steel door.


Features and benefits:

  • Offering a medium level of security.
  • Manufactured from Magnelis steel sheets with a choice of infill dependent on insulation and security requirements: honeycomb core as standard, rock wool or solid timber as options.
  • The door frame is constructed from folded 1.6 mm Magnelis steel, and is fitted with 4 dog bolt hinges as standard.
  • Versatile and can be installed in a wide variety of applications where louvres and blast protection are not required.
  • The door is supplied with a standard 15 mm rebated threshold, driveable thresholds available on request.
  • Supplied with a adjustable sub frame to allow up to 30 mm tolerance for site installations.
  • Supplied with a wide range of hardware available on request.

General information

Color

Brown

Other

Finish

Wood grain

Powder-coated

Polyester powder-coated (PPC).

Material

Steel

Stainless steel

Laminate

PVC laminate.

Shape

Rectangle

Length

Bespoke

Width

Available size range, consult manufacturer for details.

  • Single openings from 690–1350 mm.
  • Double openings from 1290–2800 mm.

690 mm

1350 mm

1290 mm

2800 mm

Height

2900 mm

WarrantyDescription

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Armourdoor - Steel Doors

Specification data - Carbon steel doorsets

Configuration

Single leaf, single action.

Double leaf, single action.

Doorset size

Insert requirements:

  • Single openings: 690–1350 mm.
  • Double openings:1290–2800 mm.
  • All at heights up to 2900 mm.

-

Frame

-

Threshold

15 mm rebated.

As standard.

Driveable.

Finish

-

Coating

Consult manufacturer for details.

Wood grain.

PVC laminate.

Polyester powder-coating.

Available in 500 RAL and BS colours.

Stainless steel.

Standard for stainless steel coating only.

Texture

Smooth.

See coatings for detailed options.

Wood grain.

Colour

For PVC laminate and wood grain, consult manufacturer for details.

Stainless steel.

Standard for stainless steel coating only.

500 RAL and BS colours.

Polyester powder-coating.

Door leaf

-

Thickness

45 mm.

Core

Honeycomb.

As standard.

Rock wool.

Solid timber.

Material

Folded 1.6 mm Zintec/ Aluzinc steel.

Lippings

Adjustable sub frame to allow up to 30 mm tolerance for site installations.

Finish

-

Coating

Wood grain.

PVC laminate.

Stainless steel.

Polyester powder-coating.

Texture

Smooth.

See coatings for detailed options.

Wood grain.

External colour

For PVC laminate and wood grain, consult manufacturer for details.

Stainless steel.

Standard for stainless steel coating only.

500 RAL and BS colours.

Polyester powder-coating.

Internal colour

For PVC laminate and wood grain, consult manufacturer for details.

As External.

Stainless steel.

Standard for stainless steel coating only.

500 RAL and BS colours.

Polyester powder-coating.

Hardware

Supplied with a wide range of hardware available on request, consult manufacturer for details.

-

Threshold

15 mm rebated.

As standard.

Driveable.

Operation

Electric.

Manual.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

95

Recycled content

25 %
