StarTec Mortice Sash Lock Euro Profile (HUKP-0103-01, HUKP-0103-02, HUKP-0103-17, HUKP-0103-18) - Mortice Locks
Verified by manufacturer 5 months ago
(HUKP-0103-01) Forend in Radius - Satin
(HUKP-0103-01) Forend in Radius - Satin
EPD
Certificate type

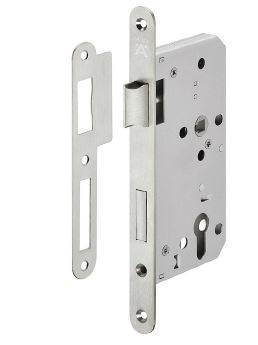

Mortice sash lock with euro profile cylinder.
Application
Suitable for residential applications.
Description
Mortice sash lock with euro profile cylinder.
Features and benefits:
- Latchbolt operated by lever handles, deadbolt by euro cylinder.
- Hold-tite spindle spring. Heavy sprung for unsprung furniture.
- 72 mm lock centres / 55 mm backset.
- Forend in radius or square. Stainless steel 24 mm width.
- Reversible left and right hand.
- Latchbolt follower: 8 mm.
- Pierced at 38 mm c.c. for bolt through fixing.
General information
Color | Silver Black |
Finish | Satin Matt |
Material | Steel Stainless steel |
Shape | Rectangle |
Length | 235 mm |
Width | 84 mm |
Height | 24 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/540 Door latches P21/28 Door latches P21/24 Door locks P21/515 Door locks |
SKU Code | HUKP-0103-01, HUKP-0103-02, HUKP-0103-17, HUKP-0103-18 |
Product range |
Specification data - Door locks
Classification data | |
Description | Mortice sash lock with euro profile cylinder. |
Manufacturer | Hafele UK Ltd. |
Standard | To BS EN 12209. |
Classification grades (minimum) | |
Category of use | BS EN 12209, grade 3. |
Durability | BS EN 12209, grade X. |
Door mass and closing force | BS EN 12209, grade 8. |
Safety | BS EN 12209, grade 0. |
Corrosion resistance and temperature | BS EN 12209, grade G. |
Security and drill resistence | BS EN 12209, grade 3. |
Key identification requirement | BS EN 12209, grade B. |
Lock type | Cylinder mortice lock. |
Backset | 55 mm. |
Material and finish | Satin stainless steel. |
Forend | Radius. |
Spring strength | Hold-tite spindle spring. Heavy sprung for unsprung furniture. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Steel Stainless steel |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 5.4 kg CO₂ eq/kg |
Declared unit | 5.40 kg CO₂ eq/kg Certified |
Expected Life | 30 year |
Product certifications
Product certifications
EPD
EPD Hafele Locks (9)
Literature
8. Project - Architectural Locks & Latches
