To screen off plant and equipment from view on Series 1, 2 and 3 Configured Platforms.

Description

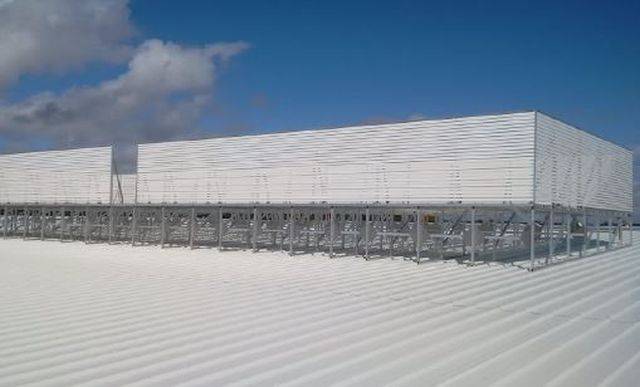

Aesthetic screen for use in conjunction with Configured Platforms Series 1, 2 and 3 platforms.

Features and benefits:

  • Helps to hide equipment, ductwork and pipework.
  • Configurable to suit project requirements.
  • Clean straight lines for an aesthetically pleasing appearance.
  • Lightweight aluminium design ensures ease of carrying, craning, and assembly.
  • Will not corrode.
  • Penetration-free.
  • Supplied in kit form for easy installation.
  • Can withstand up to 66 m/s wind speed.
  • Compliant with BS EN 516: 2006 and BS EN 1090-3: 2008.

Application:

To screen off plant and equipment from view on Series 1, 2 and 3 Configured Platforms.

General information
Material

Structure: Extruded aluminium; Fixings: Stainless steel

Finish

Frame: Mill finish; Slats: Powder-coated

Features

Clean straight lines for a tidy appearance

Shape

Posts: Square; Slats: Rectangular

Size

To suit project requirements - can be configured to any of the perimeter sides of the platform

WarrantyDescription

20-year warranty

Uniclass 2015 Aluminium louvre panel units (Pr_30_59_48_04)
Specification data
Product Reference

Standard Screen Wall

Material

Structure: Extruded aluminium; Fixings: Stainless steel

Finish

Frame: Mill finish; Slats: Powder-coated

Colour

Albatross (BS 18B17)

Anthracite (RAL 7016)

Black (BS 00E53)

Goosewing Grey (BS 10A05)

Hamlet (RAL 9002)

Heritage Green (RAL 6002)

Honesty (BS 10C31)

Juniper Green (BS 12B29)

Meadowland (BS 12B17)

Merlin Grey (BS 18B25)

Mooreland (BS 12B21)

Mushroom (BS 10B19)

Ocean Blue (BS 18C39)

Olive Green (BS 12B27)

Raven (BS 18B29)

Sapphire Blue (RAL 5003)

Terracotta (BS 04C39)

Vandyke Brown (BS 08B29)

Wedgewood Blue (BS 18C37)

White (BS 00E55)

Texture

Powder-coated, smooth

Construction

Robust stainless steel bolted and screwed construction

Accessories

Not required

Access gap, 600 mm

Double self-closing access door, 1200 mm

Two 600 mm doors.

Self-closing access door, 600 mm

Wind loads

Suitable for UK wind zone regions A (22 m/s), B (24 m/s), C (25 m/s), and D (27 m/s)

Size of slat

65 x 16 mm rectangular hollow section, with 15 mm gap between slats

Slat orientation

Vertical

Weight

7 kg/m²

Open space

18.75%

Standard product features

Colour:

Frame: Natural aluminium; Slats: Powder-coated in a range of standard roof and cladding colours to project specific requirements.

Features:

Clean straight lines for a tidy appearance.

Finish:

Frame: Mill finish; Slats: Powder-coated.

Material:

Structure: Extruded aluminium; Fixings: Stainless steel.

Shape:

Posts: Square; Slats: Rectangular.

Size:

To suit project requirements - can be configured to any of the perimeter sides of the platform.

Warranty description:

20-year warranty.

Recycled content:

Up to 30%.

Recyclability:

100% recyclable.

Embodied carbon:

Approximately 10 kg·CO2e/kg - cradle-to-gate.

Environmental information
Embodied carbon

Approximately 10 kg·CO2e/kg - cradle-to-gate

Recyclability

100% recyclable

Recycled content

Up to 30%
