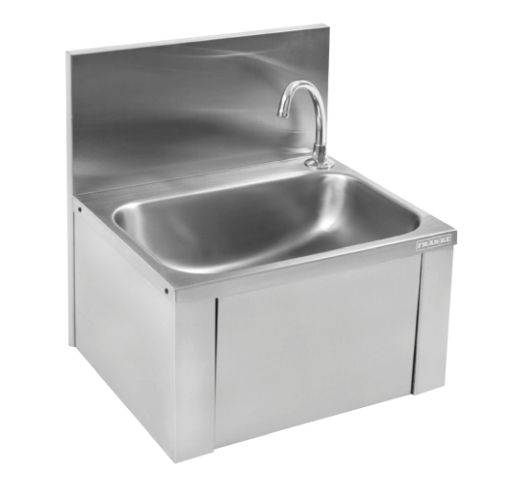

Stainless Steel Wash Basin - ANMX206
Verified by manufacturer over a year ago
WB18 knee operated washbasin.
Application
Knee operated wash hand basin which is wall mounted.
Description
Knee operated wash hand basin.
Features and Benefits:
- Supplied complete with water spout positioned in rear right hand corner and 32 mm waste outlet.
- The pre-mixing valve and the pipework linking the water spout to the knee operated front panel is all supplied with the washbasin.
- Wall mounted by fitting a top joggle strip under the upstand return and by screw fixing through the integral rear brackets. Screws and plugs are not supplied.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Length | 380 mm |
Width | 520 mm |
Height | 460 mm |
Warranty description | Five year Guidance for specification option: Two years for water controls. |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Wall-hung washbasins
Form | Wall mounted.Guidance for specification option: Knee operated. |
Connecting dimensions | 460 x 380 x 520 mm.Guidance for specification option: Bowl: 410 x 265 mm. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin. |
Size | 460 x 380 x 520 mm.Guidance for specification option: Bowl: 410 x 265 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, offset.Guidance for specification option: Water spout positioned in rear right hand corner. |
Waste | 32 mm waste outlet. |
Product Reference | (ANMX206) 203.0000.035 Guidance for specification option: External: 460 x 380 x 520 mm. Bowl: 410 x 265 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
