Stainless Steel Rising Butt Hinges
Description

A range of stainless steel rising butt hinges that comply with BS EN 1935.

General information

Uniclass 2015

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/310 Single axis door hinges

P21/6 Single axis door hinges

Specification data - Single axis door hinges

Product Reference

Stainless Steel Rising Butt Hinges

Type

980.15.000

Clockwise closing (left hand)

980.15.010

Anti-clockwise closing (right hand)

Accessories

5 mm diameter Hospa special fixing screws

980.15.900

Hydraulic damper unit

Standard product features

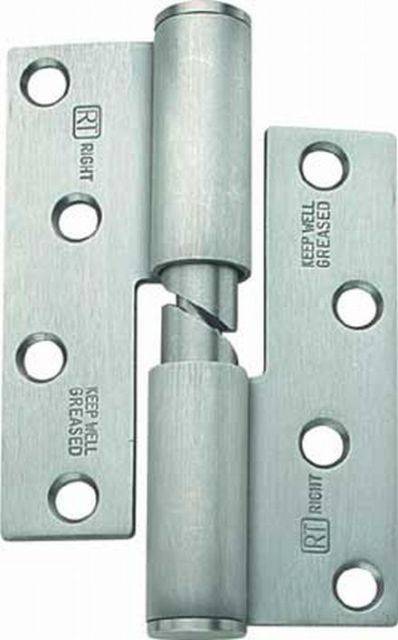

Stainless steel rising butt hinge:

  • Handed for clockwise and anti-clockwise doors (2 hinges per door only).
  • Rise: 6.5 mm at 90°.
  • Door closes on release.
  • Dimensions: 100 x 77 mm x 3 mm thick.
  • Minimum door thickness: 29 mm.
  • Maximum adjusted door weight: 60 kg.
  • BS EN 1935 grade 10.
  • Fixing screws included.
  • A hydraulic damper unit is available, specifically designed to control the doors closing speed when used in conjunction with very heavy doors, ref: 908.15.900.

Product Options

Accessories:

Hospa special fixing screws:

  • Countersunk head with Pozidriv® cross slot.

Hydraulic damper unit:

  • Reference: 908.15.900.
  • Specifically designed to control the doors closing speed when used in conjunction with very heavy doors.
  • The stainless steel damper unit fits discretely into the hinge jamb and is fully adjustable.
  • Fixing screws included.
