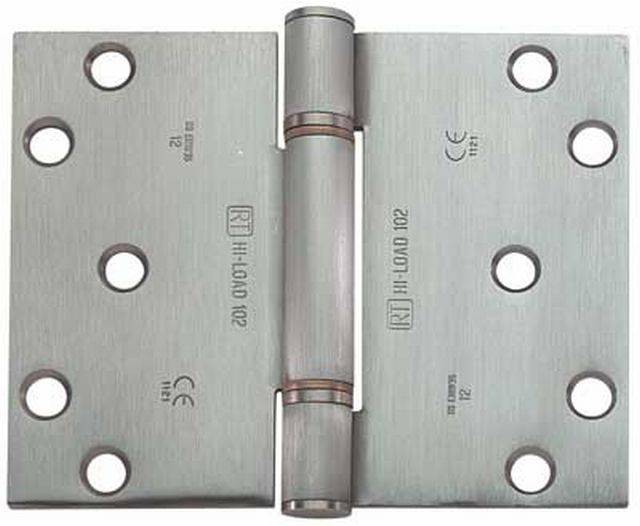

Stainless Steel Projection Butt Hinges

A range of stainless steel projection butt hinges that comply with BS EN 1935.

General information

Uniclass 2015

Pr_30_36_36_79 Single axis door hingesPrimary


P21/310 Single axis door hinges

Specification data - Single axis door hinges

Product Reference

Stainless Steel Projection Butt Hinges, ref: 926.88.120


5 mm diameter Hospa special fixing screws


Hydraulic damper unit

Standard product features

Stainless steel projection butt hinge:

  • Dimensions: 100 x 124 mm x 3 mm thick.
  • Minimum door thickness: 44 mm.
  • Maximum clearance: 29 mm.
  • Maximum adjusted door weight: 80 kg.
  • BS EN 1935 grade 11.
  • CE marked.
  • Maintenance-free.
  • Finish: Satin.
  • Fixing screws included.

Product Options


Hospa special fixing screws:

  • Countersunk head with Pozidriv® cross slot.

Hydraulic damper unit:

  • Reference: 908.15.900.
  • Specifically designed to control the doors closing speed when used in conjunction with very heavy doors.
  • The stainless steel damper unit fits discretely into the hinge jamb and is fully adjustable.
  • Fixing screws included.
