Stainless steel drainage channel system
Description

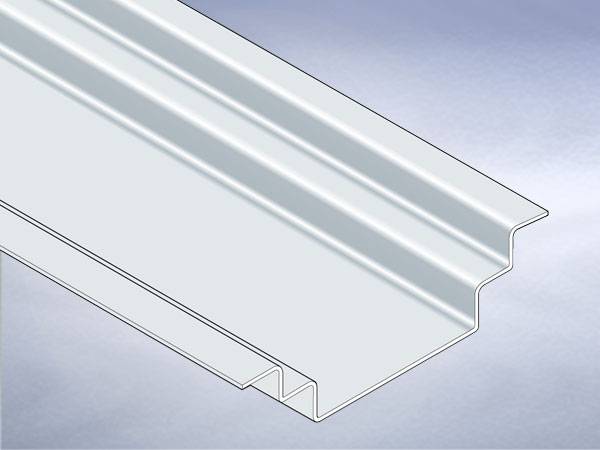

Wade International manufacture a range of stainless steel linear slot drainage channel systems, with a wide variety of channel gratings available in stainless steel, nickel bronze, cast iron and ductile iron. The range also includes ‘L’ ‘T’ and ‘U’ channel sections and the Wade International range of floor gullies are compatible with this system.

A range of profiles to suit various situations both internally and externally, manufactured from stainless steel grade 304.

Accreditation:

Tested in compliance with BS EN 1433.

General information

Uniclass 2015

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/180 Drainage channel systems with gratings

Q10/30 Drainage channel system

R11/310 Floor channels

Specification data - Drainage channels with gratings

Product Reference

Stainless steel drainage channel system

Channel

NE

arrow edge, BS EN 1433 compliant.

NEF

Narrow edge, flanged, BS EN 1433 compliant.

NEHD

Narrow edge heavy duty, BS EN 1433 compliant.

PA

Perimeter angle frame, BS EN 1433 compliant.

RE

Return edge profile, BS EN 1433 compliant.

RP

Regular profile channel, BS EN 1433 compliant.

RPV

With PVC angle edging strip, BS EN 1433 compliant.

SE

Support edge profile, BS EN 1433 compliant.

SVF

Sheet vinyl flooring profile, BS EN 1433 compliant.

SVFE

Sheet vinyl flooring profile with extended flange with fixing holes, BS EN 1433 compliant.

Gratings

-

Stainless steel

Not required

SS3080B5

Streamline grating, 500 x 82 x 20 mm deep, load class B125, BS EN 1433 compliant.

SS3135A5

Streamline grating, 500 x 135 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS3135B5

Streamline grating, 500 x 135 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS3150A5

Streamline grating, 500 x 152 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS3150B5

Streamline grating, 500 x 152 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS3080B1

Streamline grating, 1000 x 82 x 20 mm deep, load class B125, BS EN 1433 compliant.

SS3135A1

Streamline grating, 1000 x 135 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS3135B1

Streamline grating, 1000 x 135 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS3150A1

Streamline grating, 1000 x 152 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS3150B1

Streamline grating, 1000 x 152 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS3080BC

Streamline mitred corner grating, 250 square x 82 x 20 mm deep, load class B125, BS EN 1433 compliant.

SS3135AC

Streamline mitred corner grating, 250 square x 135 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS3150AC

Streamline mitred corner grating, 250 square x 152 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS5135A5

Plain mesh grating, 500 x 134 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS5135B5

Plain mesh grating, 500 x 134 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS5150A5

Plain mesh grating, 500 x 149 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS5150B5

Plain mesh grating, 500 x 149 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS5200A5

Plain mesh grating, 500 x 199 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS5200B5

Plain mesh grating, 500 x 199 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS5300A5

Plain mesh grating, 500 x 299 x 30 mm deep, load class A15, BS EN 1433 compliant.

SS5300B5

Plain mesh grating, 500 x 299 x 40 mm deep, load class B125, BS EN 1433 compliant.

SS7135A5

Anti-slip mesh grating, 500 x 134 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS7135B5

Anti-slip mesh grating, 500 x 134 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS7150A5

Anti-slip mesh grating, 500 x 149 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS7150B5

Anti-slip mesh grating, 500 x 149 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS7200A5

Anti-slip mesh grating, 500 x 199 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS7200B5

Anti-slip mesh grating, 500 x 199 x 30 mm deep, load class B125, BS EN 1433 compliant.

SS7300A5

Anti-slip mesh grating, 500 x 299 x 30 mm deep, load class A15, BS EN 1433 compliant.

SS7300B5

Anti-slip mesh grating, 500 x 299 x 40 mm deep, load class B125, BS EN 1433 compliant.

SS40135A1

Perforated grating, 1000 x 134 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS41135A1

Perforated grating, 1000 x 134 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS40150A1

Perforated grating, 1000 x 149 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS41150A1

Perforated grating, 1000 x 149 x 20 mm deep, load class A15, BS EN 1433 compliant.

SS6150B5

Bar grating, 500 x 149 x 20 mm deep, load class B125, BS EN 1433 compliant.

SS6150C5

Bar grating, 500 x 149 x 30 mm deep, load class C250, BS EN 1433 compliant.

SS6150D5

Bar grating, 500 x 149 x 50 mm deep, load class D400, BS EN 1433 compliant.

Nickel bronze

Not required

SN11230

Standard aperture grating, 495 x 60 x 15 mm deep, load class B125, BS EN 1433 compliant.

SN11430

Standard aperture grating, 495 x 60 x 15 mm deep, load class B125, BS EN 1433 compliant.

SN12220

Standard aperture grating, 544 x 115 x 10 mm deep, load class B125, BS EN 1433 compliant.

SN12230

Standard aperture grating, 662 x 134 x 15 mm deep, load class A15, BS EN 1433 compliant.

SN13240

Standard aperture grating, 485 x 186 x 20 mm deep, load class A15, BS EN 1433 compliant.

SN16330

Standard aperture grating, 483 x 300 x 15 mm deep, load class A15, BS EN 1433 compliant.

SN23130

Decorative grating, 499 x 150 x 15 mm deep, load class A15.

SN23930

Floral grating, 499 x 149 x 15 mm deep, load class A15, BS EN 1433 compliant.

SN25930

Floral grating, 499 x 293 x 15 mm deep, load class A15, BS EN 1433 compliant.

Aluminium

Not required

SA12220

Standard aperture grating, 544 x 115 x 10 mm deep, load class A15, BS EN 1433 compliant.

SA12230

Standard aperture grating, 662 x 134 x 15 mm deep, load class A15, BS EN 1433 compliant.

SA16330

Standard aperture grating, 483 x 300 x 15 mm deep, load class A15, BS EN 1433 compliant.

Cast iron

Not required

SC11230

Sherardized cast iron grating, 497 x 60 x 16 mm deep, load class B125, BS EN 1433 compliant.

SC11430

Sherardized cast iron grating, 500 x 60 x 15 mm deep, load class B125, BS EN 1433 compliant.

SC12220

Sherardized cast iron grating, 544 x 115 x 10 mm deep, load class A15, BS EN 1433 compliant.

SC12330

Sherardized cast iron grating, 387 x 143 x 12 mm deep, load class B125, BS EN 1433 compliant.

SC12431

Sherardized cast iron grating, 497 x 149 x 15 mm deep, load class B125, BS EN 1433 compliant.

SC23930

Sherardized cast iron grating, 499 x 149 x 16 mm deep, load class A15, BS EN 1433 compliant.

SG16460

Sherardized ductile iron grating, 610 x 305 x 26 mm deep, load class C250, BS EN 1433 compliant.

SG15350

Sherardized ductile iron grating, 251 x 251 x 23 mm deep, load class B125, BS EN 1433 compliant.

SG16250

Sherardized ductile iron grating, 305 x 305 x 26 mm deep, load class A15, BS EN 1433 compliant.

Channel Outlets

D1002LD

Non-trapped body, vertical threaded outlet, size 2” BSP, for use with bituminous membrane; with inlet modified to accept Wade 4" channel outlet for bodies.

D1003LD

Non-trapped body, vertical threaded outlet, size 3” BSP, for use with bituminous membrane; with inlet modified to accept Wade 4" channel outlet for bodies.

D1004LD

Non-trapped body, vertical threaded outlet, size 4” BSP, for use with bituminous membrane; with inlet modified to accept Wade 4" channel outlet for bodies.

D1107LD

Non-trapped body, spigot outlet, size 50 mm, for use with bituminous membrane; with inlet modified to accept Wade 4" channel outlet for bodies.

D1108LD

Non-trapped body, spigot outlet, size 75 mm, for use with bituminous membrane; with inlet modified to accept Wade 4" channel outlet for bodies.

D1109LD

Non-trapped body, spigot outlet, size 100 mm, for use with bituminous membrane; with inlet modified to accept Wade 4" channel outlet for bodies.

D1207LD

Non-trapped body, horizontal threaded outlet, size 2” BSP; with inlet modified to accept Wade 4" channel outlet for bodies.

D1208LD

Non-trapped body, horizontal threaded outlet, size 3” BSP; with inlet modified to accept Wade 4" channel outlet for bodies.

D1209LD

Non-trapped body, horizontal threaded outlet, size 4” BSP; with inlet modified to accept Wade 4" channel outlet for bodies.

G303LD

‘P’ trapped, 50 mm seal, rodding access plug, size 75 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

G304LD

‘P’ trapped, 50 mm seal, rodding access plug, size 100 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

G603LD

‘S’ trapped, 50 mm seal, rodding access plug, size 75 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

G604LD

‘S’ trapped, 50 mm seal, rodding access plug, size 100 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

G1014LD

‘S’ trapped, 50 mm seal, rodding access plug, size 100 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

QB114LD

Vertical spigot outlet, size 100 mm, for use in high specification applications; with inlet modified to accept Wade 4" channel outlet for bodies.

QB214LD

Horizontal spigot outlet, size 100 mm, for use in high specification applications; with inlet modified to accept Wade 4" channel outlet for bodies.

QG114LD

Bell trapped, 60 mm seal, rodding access plug, size 100 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

QG214LD

'P' trapped, 60 mm seal, rodding access plug, size 100 mm; with inlet modified to accept Wade 4" channel outlet for bodies.

Accessories

None

Angle frame

Filter bucket

L channel

T channel

Vertical outlet channel

Standard product features

Channel Material:

Stainless Steel grade 304.

Grating Material:

  • Aluminium: LM6.
  • Lacquered cast iron: BS EN 1561.
  • Nickel bronze: to BS 1400.
  • Sherardized cast iron: to BS 1452.
  • Sherardized ductile iron: BS EN 1563 and 1564.
  • Stainless steel: grade 304.

Body Material:

  • Cast iron body, non-trapped sump (applies to D1002LD to D1209LD).
  • Cast iron body, trapped sump (applies to G303LD to G1004LD).
  • Stainless steel grade 304 body, non-trapped sump (applies to QB114LD and QB214LD), grade 316 is available on request.
  • Stainless steel grade 304 body, trapped sump (applies to QG114LD and QG214LD), grade 316 is available on request.

Product Options

Gratings:

  • With tile upstand designed for tiling over, suffix T.
  • With support bar, suffix S.
  • With grade 316 stainless steel, suffix M.
  • With double secondary drainage at membrane level, suffix DSD.
  • With single secondary drainage at membrane level, suffix SSD.

Gratings:

  • With security locking, suffix L.
  • With grade 316 stainless steel (stainless steel grating only), suffix M.

Gratings:

With grade 316 stainless steel (QB114LD, QB214LD, QG114 and QG214LD), suffix M.
