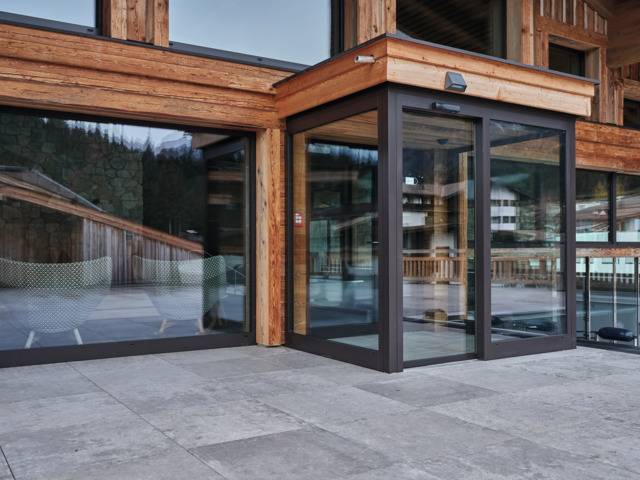

ST Flex Fine Framed Sliding Door System

Fine framed, double or single glazed automatic door system with 50mm maximum sight lines.

Features:

• ES400 PRO automatic sliding door operator.

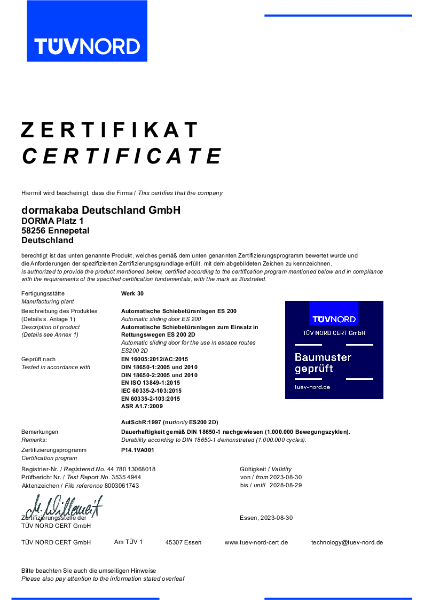

• Tested and certified to 1.5 Million opening and closing cycles.
• Night/ bank facility for first and last entrance.
• Five position mode switch (off, automatic, partial opening, exit only and hold open).
• Drive unit encased in purpose designed extruded aluminium profile.
• Monitored battery back-up system
• Suitable for use on emergency escape routes.
• Single sliding door leaf weights up to 200kg or Bi-Parting Door Leaf Weights up to 160kg per leaf (320kg total combined weight).

Benefits:

• Low UD-value (thermal transmission co-efficient) for complete door 1.4 to 1.8 W/m2K
• A highly energy efficient solution, the automatic sliding door operator reduces day-to-day energy and heating costs and cuts C02 emissions.
• Excellent insulation features thanks to interlocking side seals and top and bottom seals.
• Bespoke tailored solution offering flexibility to meet with your specific project requirements.
• High stability and torsional rigidity.

Clear passage height:

• 2100–3000 mm.

Safety devices:

• Self-regulating safety system monitoring all door movements including closing force.
• Auto reverse function if the doors make contact with an obstruction during the closing cycle (infrared threshold safety sensor).
• Presence sensors monitoring the threshold area preventing the doors from closing on users.
• Emergency break glass.
• Rear edge safety.
• Full height frameless pocket screens constructed from 10 mm toughened safety glass and patch fittings.
• 900 mm high all glass solid infill safety barriers.
• DORMA Prosecure Opti Scan Rear Edge Presence Sensors reducing the door to 'Low Energy Speed' upon activation.
