ST Automatic Sliding Doors
Compare variants

ST Automatic Sliding Doors

ST-G Automatic Sliding Doors

dormakaba UK Ltd Variant:

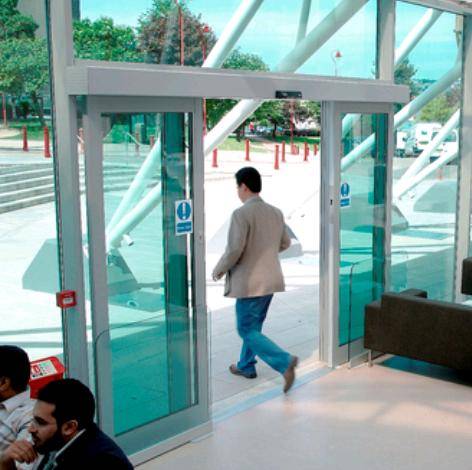

Fully glazed automatic sliding doors for use in a wall or between fixed glazed side screens.

Jump to:
+44 (0)1462 477600 www.dormakaba.com/gb-en

Application

Suitable for entrance areas.

Description

Fully glazed automatic sliding doors designed to be installed in a wall or between fixed glazed side screens.

Automatic control by microwave or infrared detectors, with a range of operating and control options and safety devices. The ST Automatic Sliding Door range includes:

  • DORMA ST-G with fine frame for all-glass appearance.
  • DORMA ST-G ISO for thermal performance, with 20 mm double glazing, thermally-broken frames and edge seals.
  • DORMA ST-R for heavy-duty use, maximum strength and security when closed.
  • DORMA ST-R Thermo, similar to ST-R but with 24 mm double glazing for thermal performance.

General information

Finish

Anodized

Powder coated

Material

Glass

Aluminium

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/55 Doorsets

L20/490 Automatic doors

Product range

Automatics / Sliding Doors

Specification data - Sliding door and partition sets Enhanced data

Arrangement

Bi-parting sliding doors.

Single leaf sliding door.

Door leaves

-

Construction

Fine frame, laminated glass.

Fine frame, toughened glass.

Finish and colour

Anodized aluminium.

Powder coated aluminium.

Operation

Powered.

Height

2100 mm.

2200 mm.

2300 mm.

2400 mm.

2500 mm.

Panel weight

Leaf weight 100–200 kg (maximum), depending on opening arrangement.

-

Width

700 mm.

Single leaf.

800 mm.

Bi-parting.

1000 mm.

Single leaf or bi-parting.

1500 mm.

Single leaf.

2000 mm.

Single leaf or bi-parting.

Show more

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Literature

DORMA ST TST - Automatic Sliding Door Systems

DORMA ST TST - Automatic Sliding Door Systems
