Square - Shower drain
Application

New construction or renovation.

Description

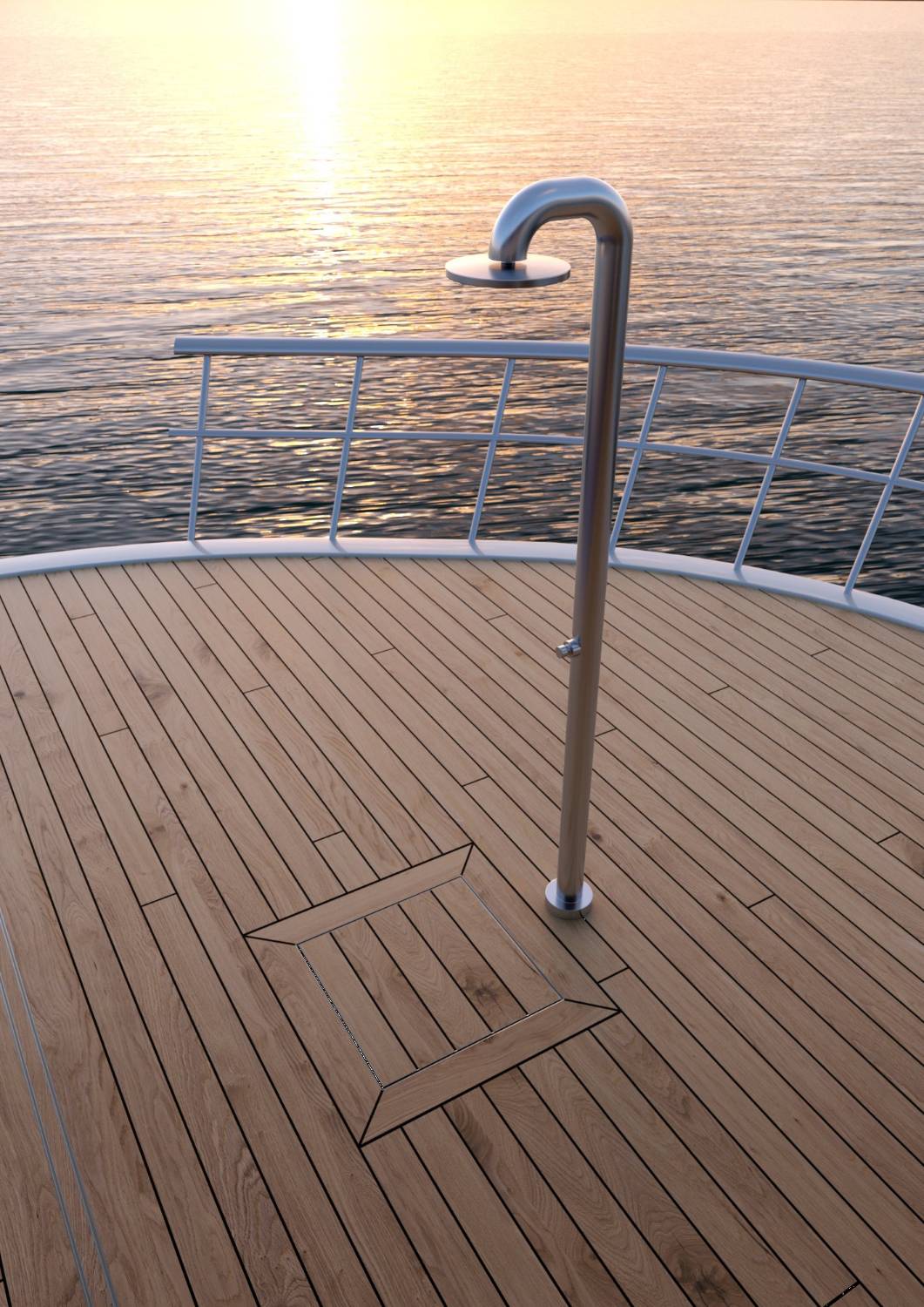

Unique shower drain, characterized by its quadratic shape and large size. It is suitable for renovations, thanks to the innovative and patented multi-drainage technology. The included shower board can be easily adjusted to the required height, and shortened to any desired length and width.

Features and benefits:

  • 615 x 615 mm dimensions.
  • Height-adjustable grate.
  • Easy-to-clean siphon.
  • Supplied as complete set.
  • EN 1253-certified.
  • ETAG-022-certified.

Application:

New construction or renovation.

General information

Material

Stainless steel

Size

1200x1100x9mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

Square - Shower drain

Standard

To EN 1253 + ETAG-022

Body

-

Configuration

Siphon

Material

Acrylonitrile butadiene styrene (ABS)

Cover or grating

-

Type

Tile

For 12 mm depth tile.

Outlet

Horizontal adjustable

Standard.

Vertical adjustable

Drainage capacity

90 mm

Water seal height

30 mm- 34 L/m

35 mm- 38 L/m

50 mm- 49 L/m

Connection

40 mm

Suitable substrates

Concrete/ sand cement or wooden floors

Suitable floor finishes

National stone, tiles/ mosaic

Standard product features

Features:

Quadratic shape with large size.

Shape:

Square.

Size:

  • Drain: 615 x 615 mm.
  • Shower board: 1200 x 1100 x 50 mm.

Warranty description:

Water Protection System: Ten years.

Country of origin:

The Netherlands.

Country of manufacture:

Germany.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
